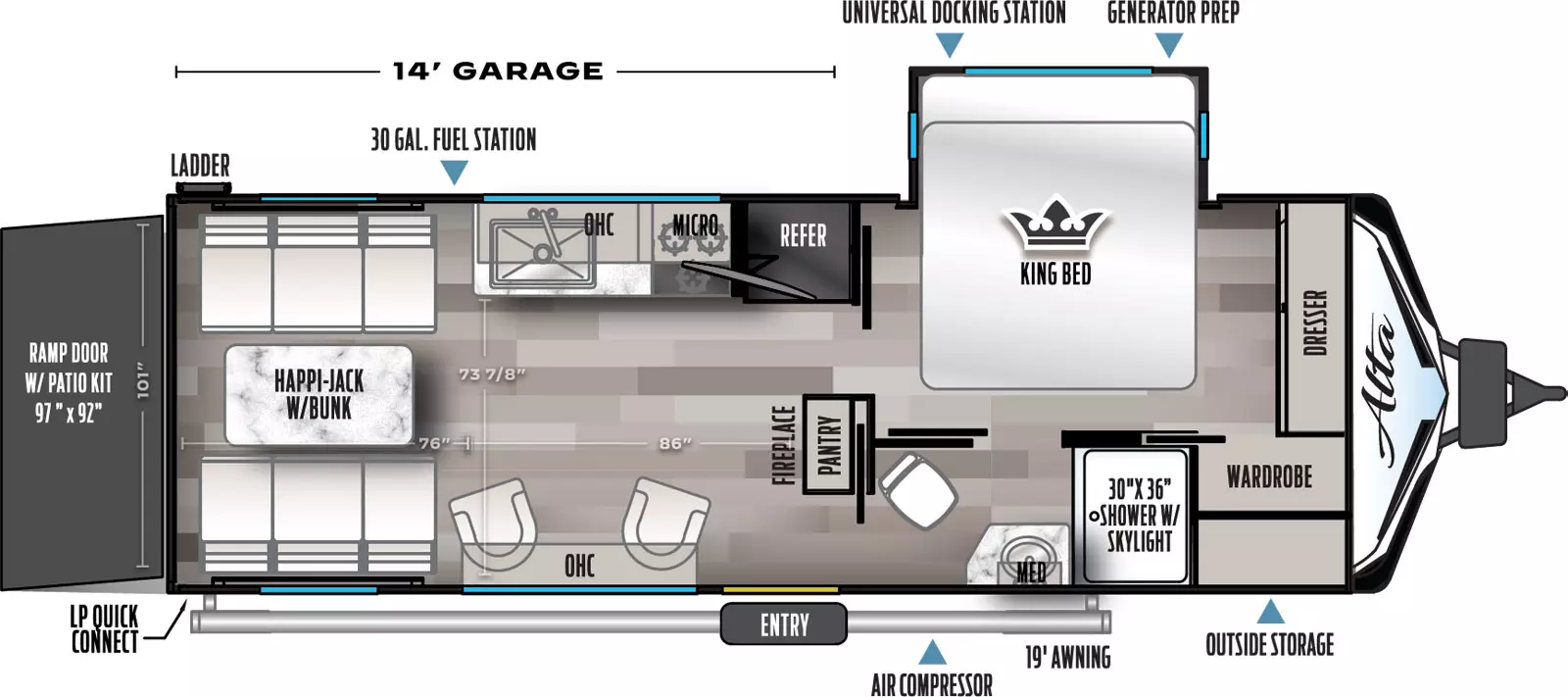

2400KTH Floorplan

Toy Hauler

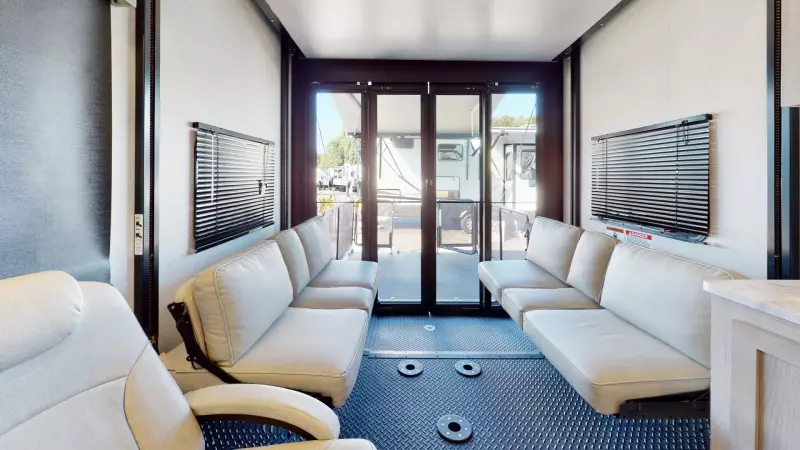

The 2400KTH has one slideout and one entry door. Exterior features include an LP quick connect, air compressor, 19 foot awning, outside storage, ladder, 30 gallon fuel station, universal docking station, and generator prep. Interior layout front to back: front dresser and wardrobe; off-door side king bed slideout with overhead cabinet; door side aisle pass through full bathroom with medicine cabinet and shower with skylight; pantry and fireplace along inner wall; off-door side refrigerator, microwave, oven, sink and overhead cabinet; door side entry, chairs with flip up table, and overhead cabinet; rear happi-jack with bunk; rear ramp door with patio kit. Garage dimensions: 14 foot garage; 101 inches wide; 76 inches from rear to kitchen counter; 86 inches from kitchen counter to pantry; 73 7/8 inches from kitchen counter to door side wall; 97 inch x 92 inch rear ramp door.
Enlarge

Specifications

Hitch Weight:
TBD
UVW
TBD
CCC
TBD
Exterior Length:
27' 11"
Exterior Height:
12' 5"
Exterior Width:
101"
Fresh Water:
106.00 gal.
Gray Water:
60.00 gal.
Black Water:
30.00 gal.
Awning Size:
19'



GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each East To West RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every East To West RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Get an alert when Specifications have been updated.



Features & Options

  • 81" Interior Ceiling Height
  • 10.7 Cubic Foot Stainless Steel Refrigerator
  • Solid Bedroom Door Where Applicable
  • Cable/Satellite Ready
  • USB Charging Stations (Beds, Bunks, & Tables Where Available)
  • 3-Burner Range w/Oven In Place of Cooktop
  • Sink Cover
  • Tri-fold "EZ-Out" Sleeper Sofa
  • Designer Solid Surface Countertops
  • Skylight Above Shower/Tub
  • Interior LED Lights
  • ABS Tub Surround & Cabinet In Bath Where Available
  • Oversized Window Package With Valance and Lambrequins Window Treatments
  • Black Roller Shades
  • Porcelain Foot Flush Toilet (N/A on “LE” Edition)
  • 48" Dinette Where Available, With Pullout Storage Drawers Underneath On Roller Guides
  • 35,000 BTU Furnace
  • Furrion® 2 Zone Sound System w/ Sound Bar
  • Upgraded Appliances Package
  • Pet Drawer
  • Under Bed Storage
  • 5" Vacuum Bonded Roof
  • Aluminum Rims
  • Universal Docking Station
  • Water Heater Bypass
  • Nitro Filled Radial Tires
  • Power Awning With LED Lights
  • Enclosed & Heated Underbelly
  • Flush Floor Slide Out Where Available
  • 15,000 BTU Ducted Air Conditioner With Quick Cool
  • Black Tank Flush
  • Outside Shower With Hot & Cold Water
  • High Definition/Amplified TV Antenna w/Wi-Fi Prep
  • Backup Camera Prep
  • Rear Ladder
  • Diamond Plate Front Rock Guard
  • Aluminum Triple Entry Steps
  • Exterior LED Lights
  • Detachable Power Cord
  • Power Tongue Jack With LED Light
  • Exterior Swing Arm Entry Assist Handle
  • 4-Point Electric Stabilizer Jacks (N/A on “LE” Editions)
  • Marine Grade Exterior Speakers
  • Tinted Windows
  • Upper Bunk Window
  • R.V.Q. Quick Connect
  • High Pressure Fresh Water Fill
  • Goodyear® Tires (Mandatory on all models)
  • Goodyear® Spare Tire & Carrier
  • Solid Entry Step With Tool Box
  • Theater Seating IPO Tri-fold Sofa
  • 60" x 80" Queen Bed
  • 40" LED TV (N/A 1600MBR, 1900MMK, 2210MBH)
  • 32” LED TV
  • 50 Amp Service With 2nd A/C Prep: (Mandatory On 2600KRB, 2800KBH, 2810KIK, 2850KRL, 3150KBH) (N/A on 2350KRK or Smaller Models)
  • 50 Amp Service With 15,000 BTU 2nd A/C Installed (Mandatory on 2400KTH)
  • Alta 100 Watt Solar Package (Solar panel, controller, battery, box, and disconnect. *Mandatory on all models*)
  • West Coast Power Package (200 watt panel, 30 amp controller and second battery)
