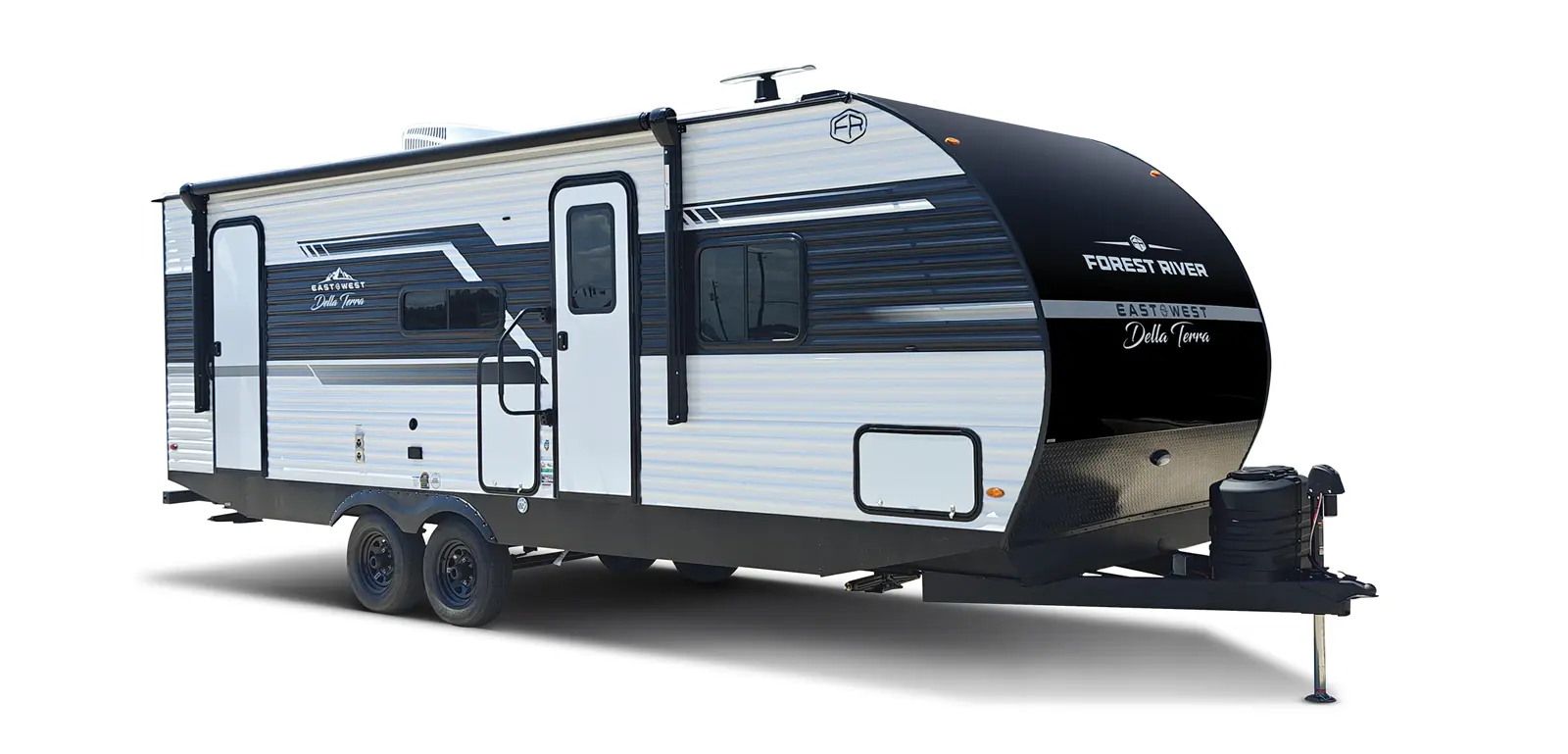

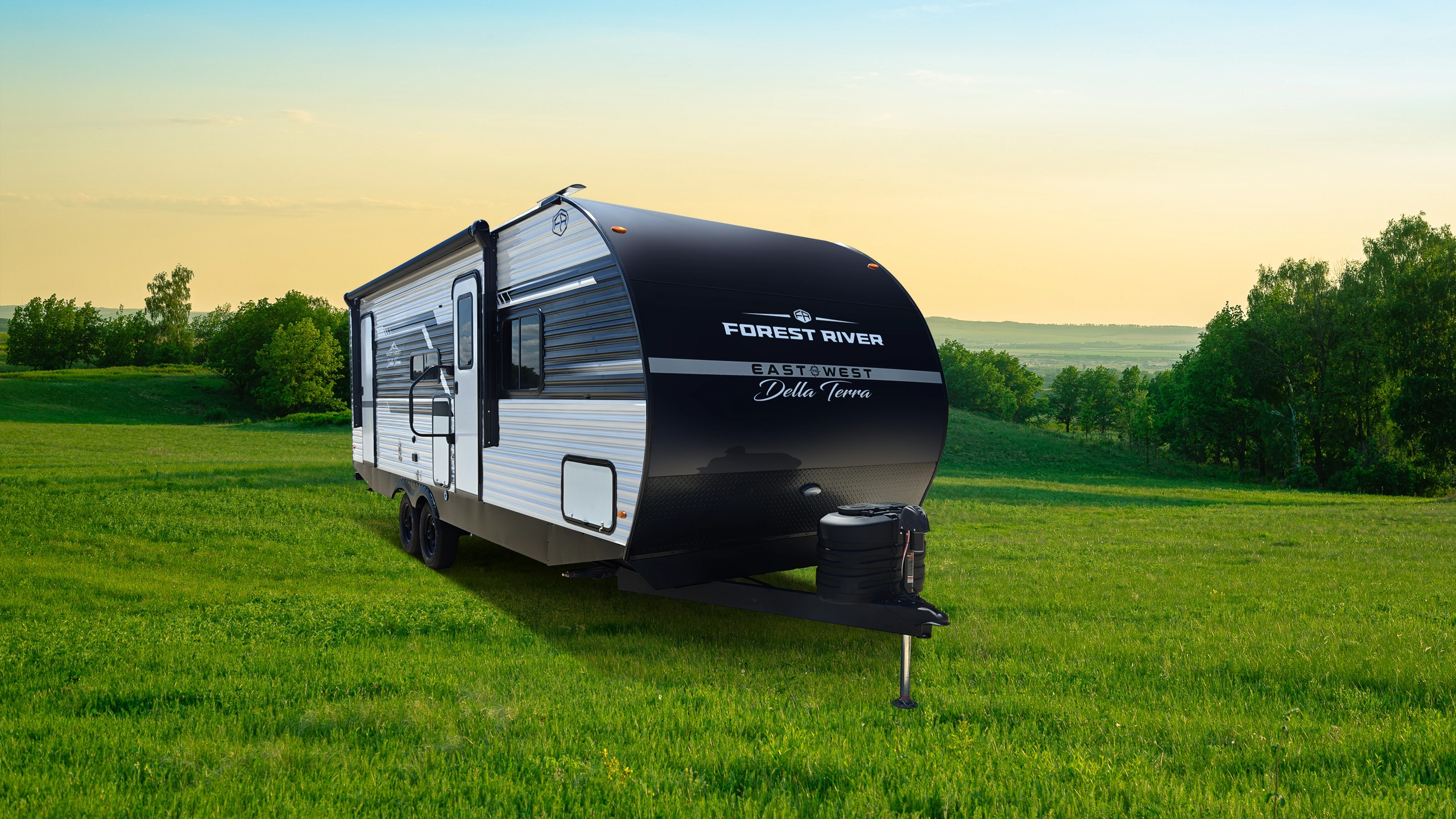

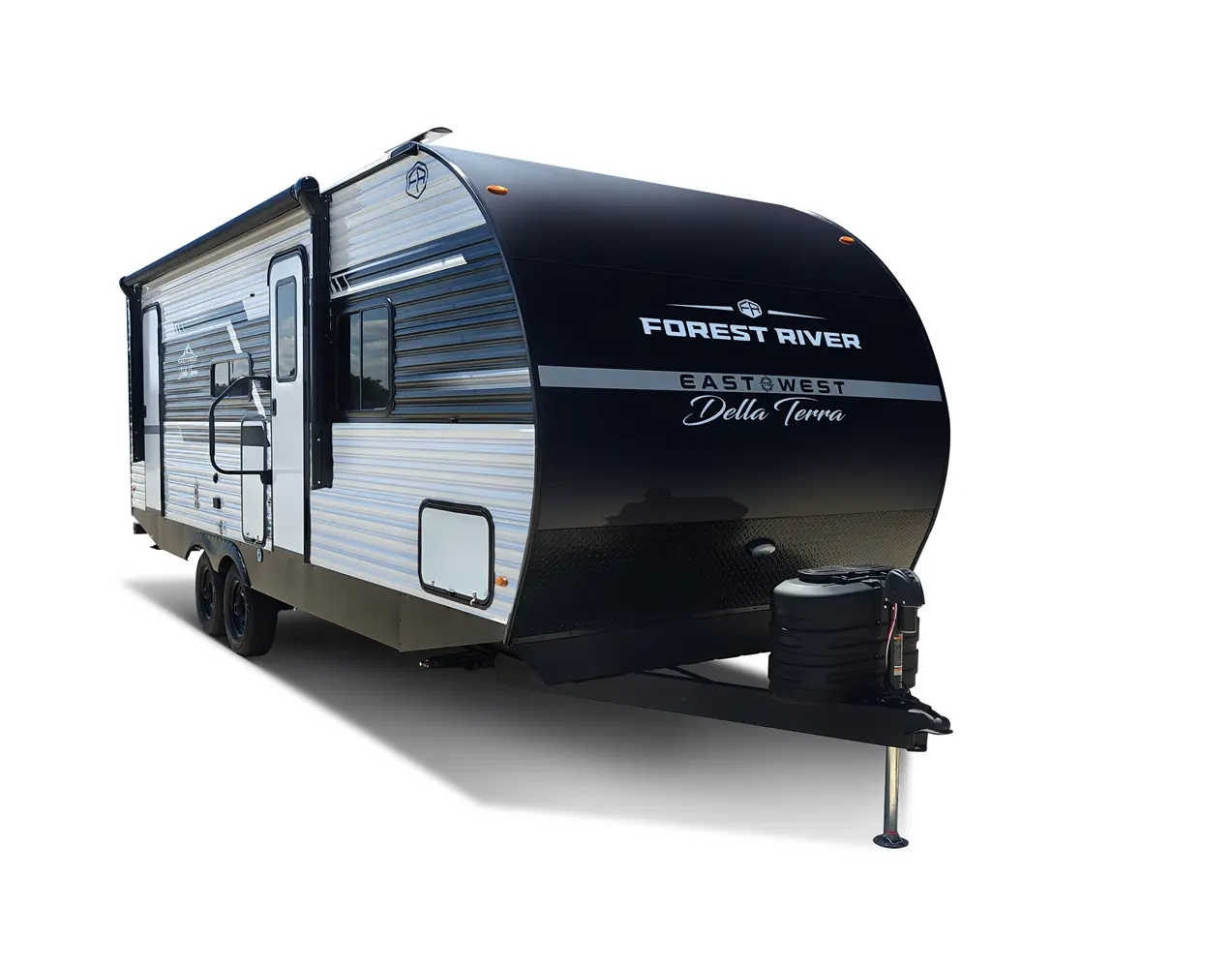

Della Terra Travel Trailers

At EAST TO WEST, we build RVs for every adventure. Della Terra, our line of travel trailers, are designed with your comfort and convenience in mind. From countless features to reliable quality construction, we strive to offer you a product that will make your camping experience enjoyable for the whole family.

Della Terra means “of the Earth” in Italian

#GoEastToWest

Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications












to

to




Specifications

Print


Hitch Weight:
UVW:
CCC:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
565 lb.
4973 lb.
2509 lb.
28' 4"
10' 10"
96"
51 gal.
51 gal.
30 gal.
15'
715 lb.
5319 lb.
2351 lb.
30' 2"
10' 10"
96"
51 gal.
30 gal.
30 gal.
15'
652 lb.
6483 lb.
2513 lb.
28' 1"
11' 2"
96"
51 gal.
60 gal.
30 gal.
15'
785 lb.
6835 lb.
2750 lb.
34' 6"
11' 0"
96"
51 gal.
60 gal.
30 gal.
15'
780 lb.
6898 lb.
2266 lb.
34' 3"
11' 11"
96"
51 gal.
60 gal.
30 gal.
15'
987 lb.
6835 lb.
2935 lb.
34' 3"
11' 2"
96"
51 gal.
60 gal.
30 gal.
15'
936 lb.
8178 lb.
1558 lb.
36' 1"
11' 3"
96"
51 gal.
60 gal.
30 gal.
11'
TBD
TBD
TBD
38' 2"
11' 3"
96"
51 gal.
60 gal.
30 gal.
18'
896 lb.
8745 lb.
2134 lb.
37' 9"
11' 3"
96"
51 gal.
60 gal.
30 gal.
15'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each East To West RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every East To West RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print
  • Mortise and Tenon Shaker Style Cabinets
  • 12-Volt Exhaust Fan and Light
  • Shelving in Overhead Kitchen Cabinets
  • Wood Drawers w/Furniture Grade Plywood Sides
  • TV & Cable Prep in Living Room and Bedroom
  • Furnace w/Digital Thermostat
  • Strut Lifted Storage Under Master Bed
  • Increased Foot Space at the Foot of Bed
  • Solid Bedroom Privacy Doors Security & Safety Features
  • LP Leak, Smoke & Carbon Monoxide Detectors
  • Fire Extinguisher
  • Welded Heavy Duty Safety Chains
  • Electric Brakes (All Wheels)
  • GFCI Receptacles
  • ANSI 119.2 Certified
  • Meets All National Highway Administrative Specifications
  • RVIA Approved Product
  • 81” Interior Ceiling Height
  • 10’ Cubic Stainless Steel Refrigerator
  • Solid Bedroom Privacy Door
  • Cable/Satellite Ready
  • USB Charging Stations (Beds, Bunks, Tables Where Applicable)
  • 3-Burner Range w/Glass Cover & Oven
  • Overhead Cabinet Storage in Slide Out Where Applicable
  • Interior LED Lights
  • Skylight Above Shower/Tub
  • 48” Dinette Where Applicable w/Pullout Storage Drawers Underneath on Roller Guides
  • ABS Tub Surround & Cabinet in Bath Where Applicable
  • Window Valence Package w/Night Shades
  • Foot Flush Toilet
  • Designer Countertops
  • Furrion® 2 Zone Sound System w/Bluetooth & HDMI Connectivity
  • 35,000 BTU Suburban® Forced Air DSI Furnace w/Digital Thermostat
  • Extra Large Dinette Picture Window
  • Upgraded Shaw® Linoleum Flooring
  • Universal Docking Station w/Battery Disconnect
  • Fully Finished Pass Thru Storage
  • Fender Skirt
  • Water Heater Bypass
  • Radial Tires
  • Electric Power Awning w/LED Lights
  • Black Tank Flush
  • Outside Shower w/Hot & Cold Water
  • High Definition/Amplified TV Antenna
  • Backup Camera Prep
  • Aluminum Triple Entry Steps
  • Furrion® Solar Prep
  • Exterior LED Lights
  • Detachable Power Cord
  • Power Tongue Jack w/LED Light
  • Exterior Swing Arm Entry Assist Handle
  • Stabilizer Jacks
  • Two Marine Grade Exterior Speakers
  • Tinted Windows
  • Upper Bunk Bed Window Where Applicable
  • R.V.Q. Quick Connect Where Applicable
  • Norco® Automotive Deposition Coated Frame
  • King Bed - 72” X 80”
  • Enclosed & Heated Underbelly
  • Enclosed Holding Tanks
  • Electric Flush Floor Slide Outs Where Applicable
  • 15,000 BTU Ducted Air Conditioner w/Quick Cool
  • Upgraded Interior Design Package Options
  • Upgraded Aluminum Rim Package
  • Norco® Electric Stabilizer Jacks
  • Spare Tire & Carrier
  • Morryde® Solid Entry Triple Step
  • 60” X 80” Queen Bed
  • Furrion® Large 40” LED TV w/Bracket
  • Furrion® Medium 32” LED TV w/Bracket
  • 50 Amp Service w/2nd Air Prep
  • 50 Amp Service 2nd Air
  • Outside Kitchen (250BH, 281BH, 312BH, 323QB)


Virtual Tours

There are currently no Vitual Tours for this brand.


Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.


Literature

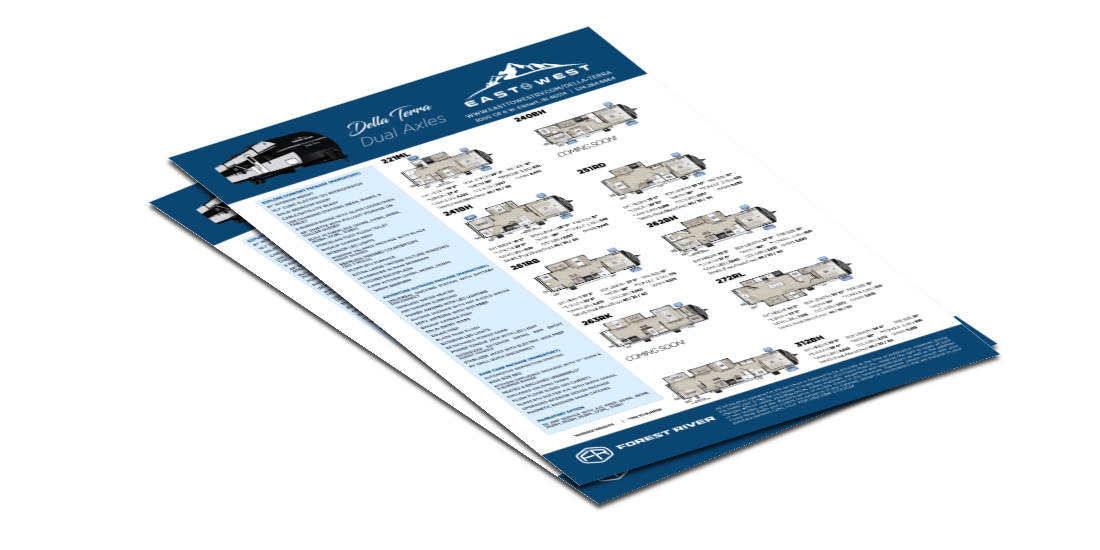

Della Terra Brochure
