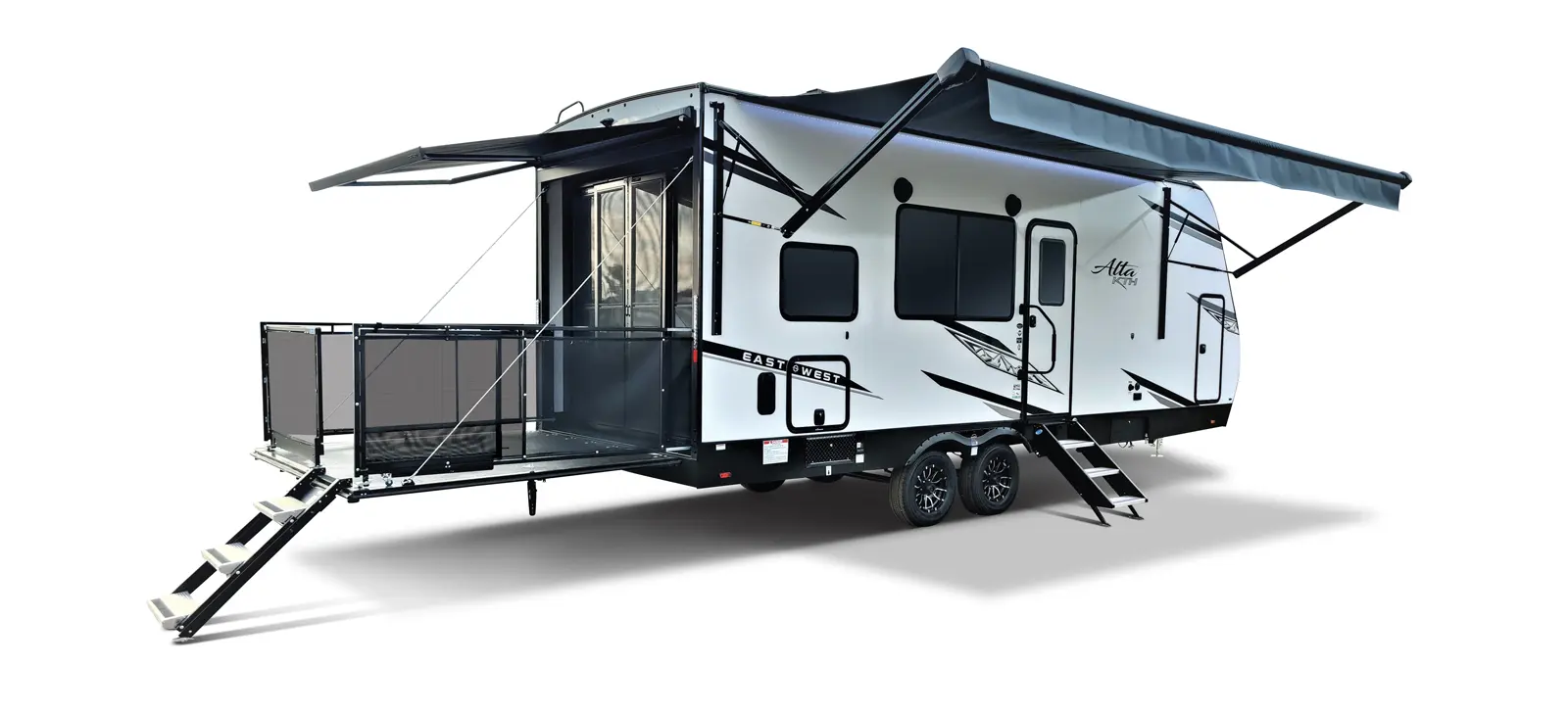

East to West Alta Travel Trailers

EAST TO WEST’s ALTA is our first lightweight laminated travel trailer line officially launching in September 2019. ALTA will premier with the 7 top selling floorplans in the industry in one great interior décor scheme (cloud).

ALTA –"is the feminine Spanish/Italian name meaning tall or high."

#GOEASTTOWEST

Filter

Select filters below and then click the Filter Results button to remove non-matching Floorplans and their Specifications












to

to

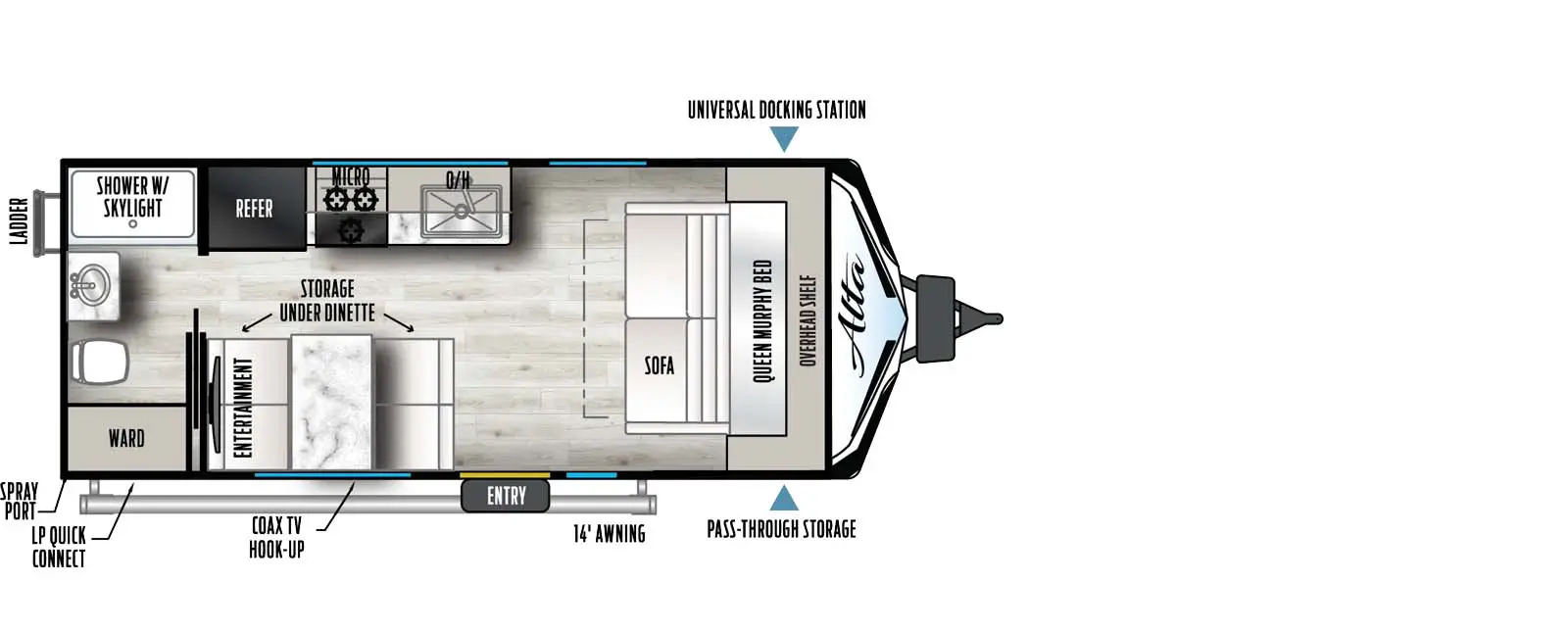

Floorplans

Print


Travel Trailers

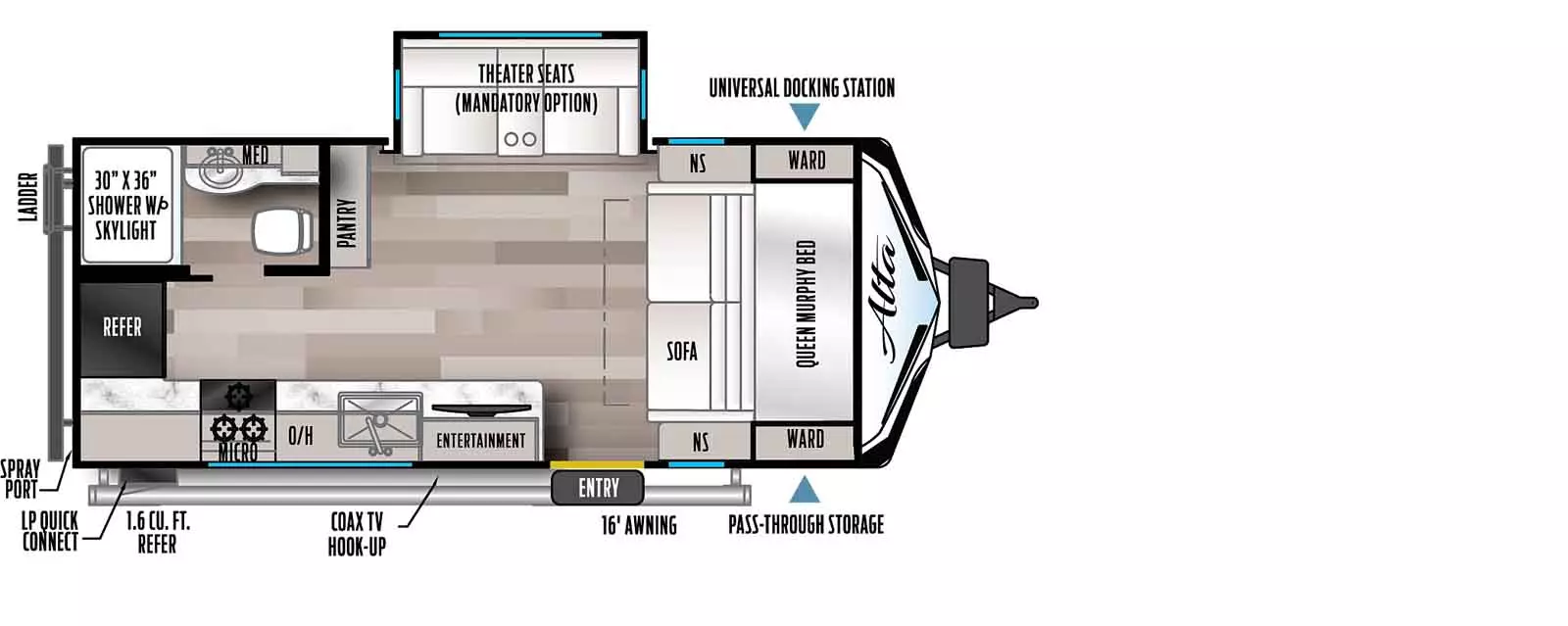

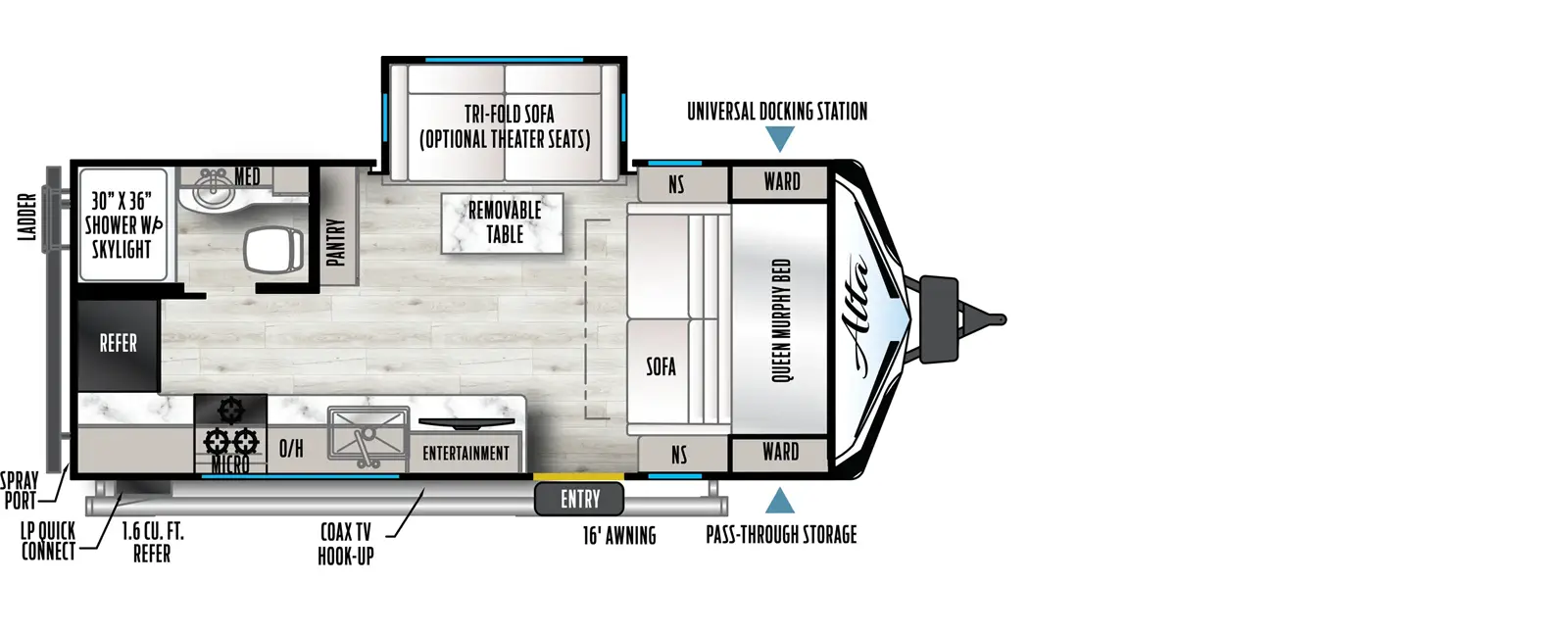

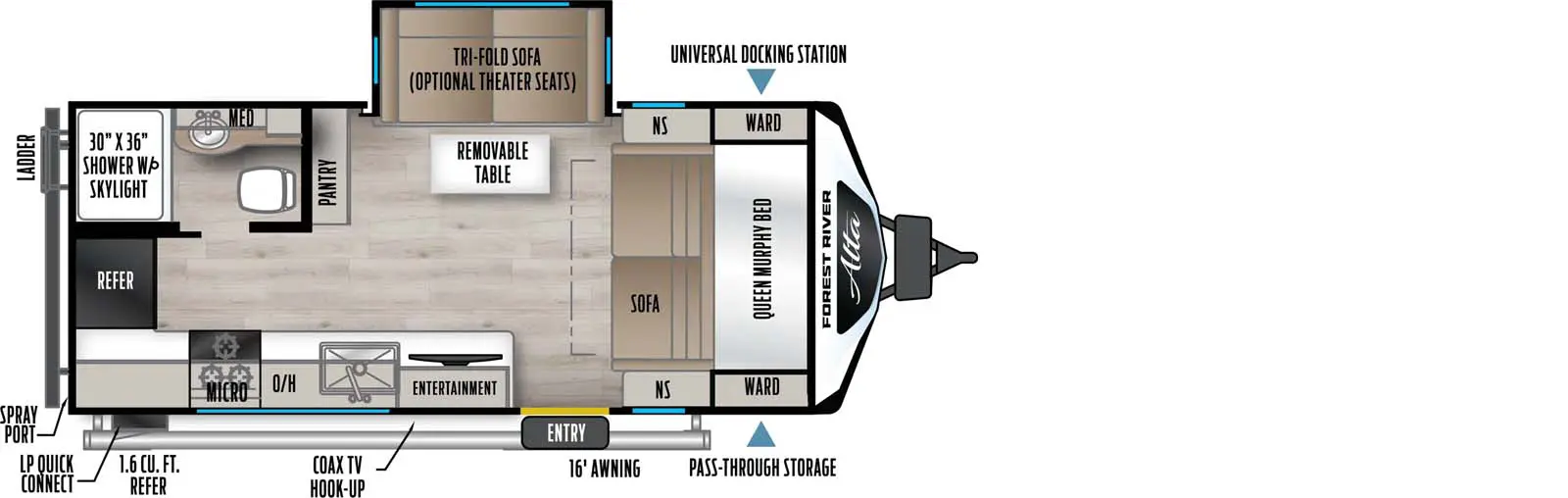

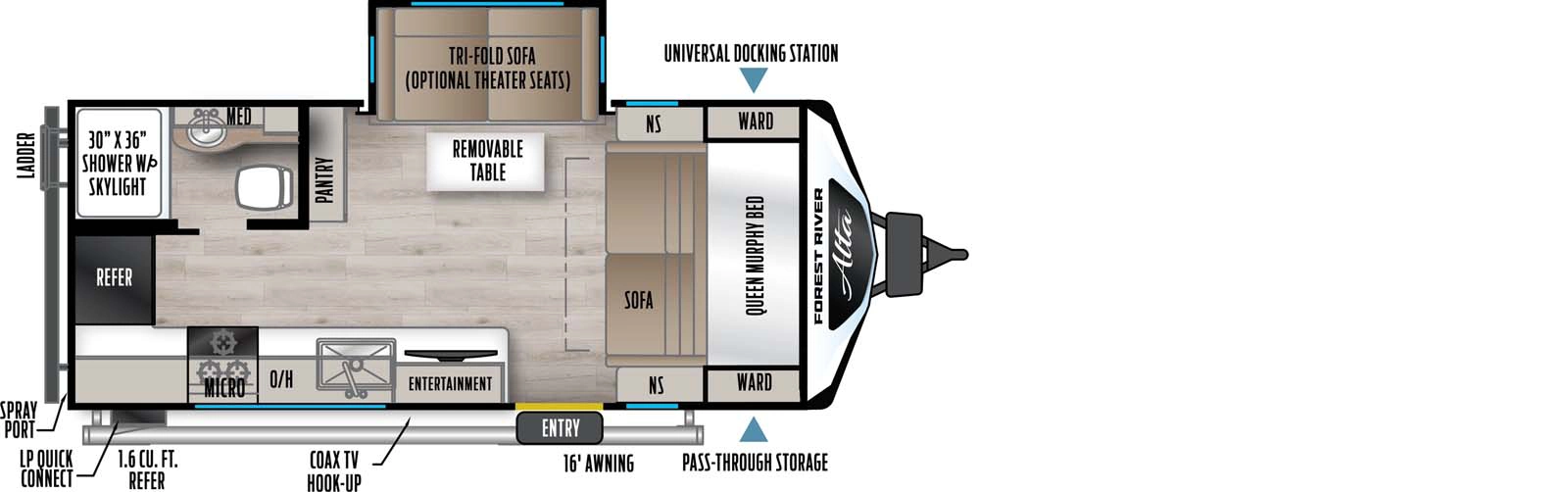

1900MMK

1900MMK


New Floorplan
 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

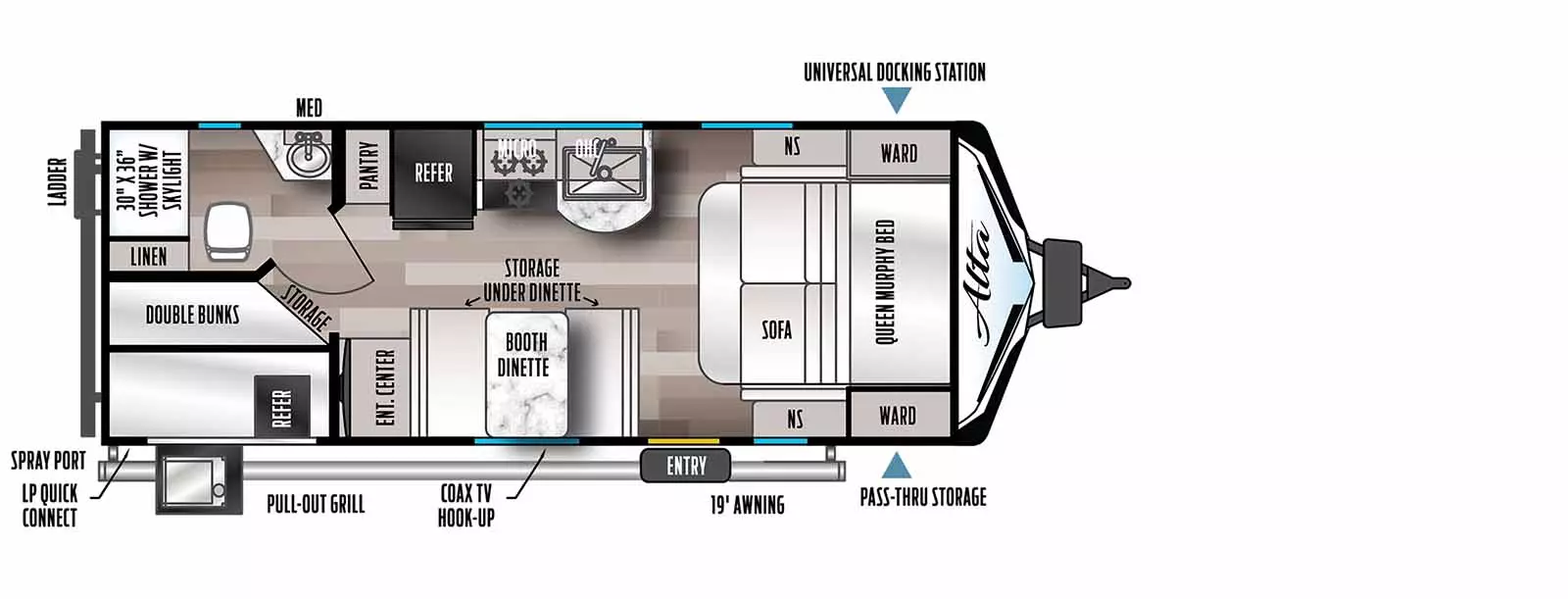

2100MBH
Has Gallery Photos Has 360 Tour

2100MBH


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

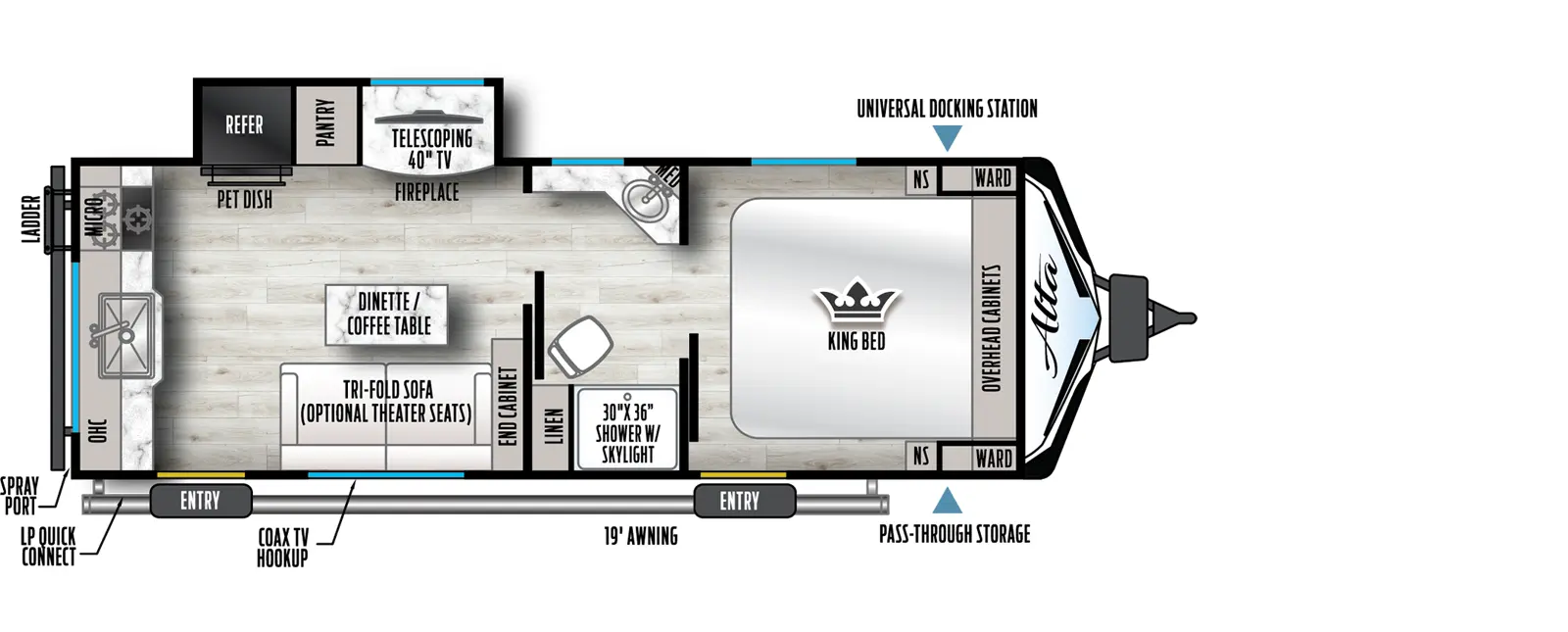

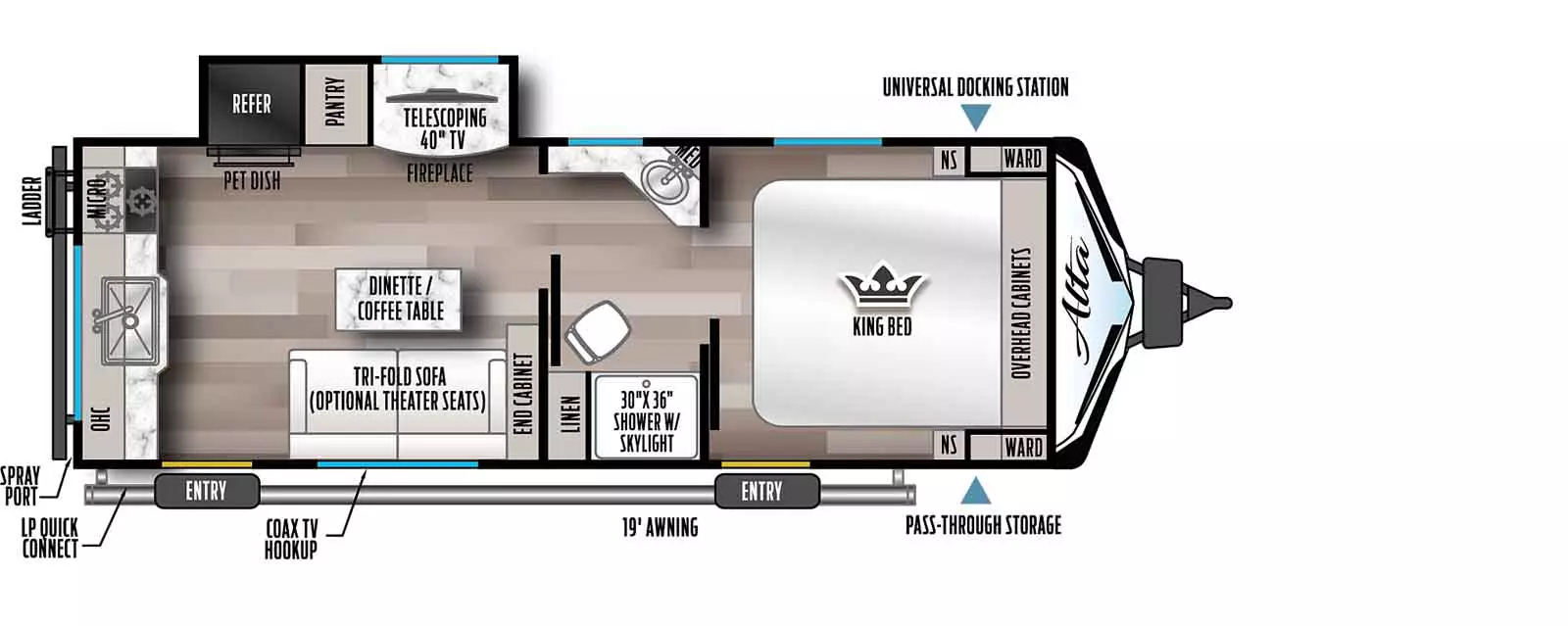

2350KRK
Has Gallery Photos Has 360 Tour Has Video Tour

2350KRK


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

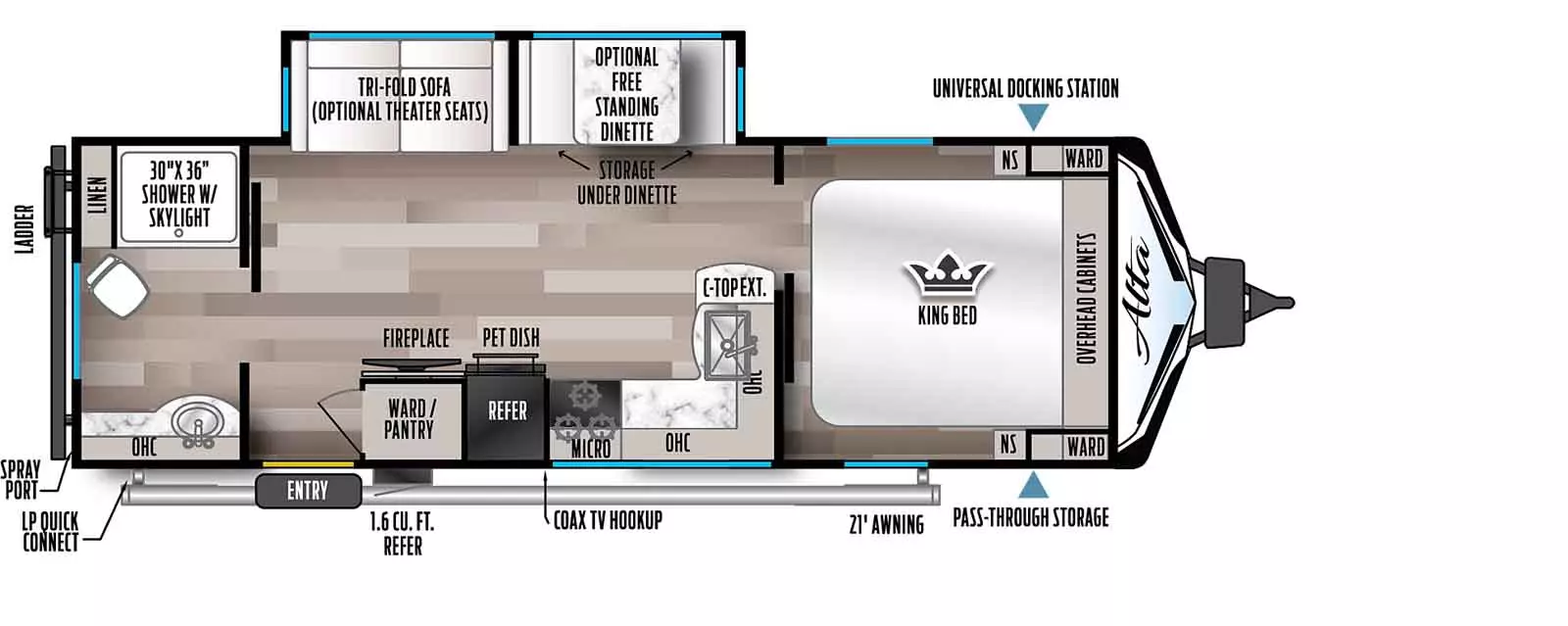

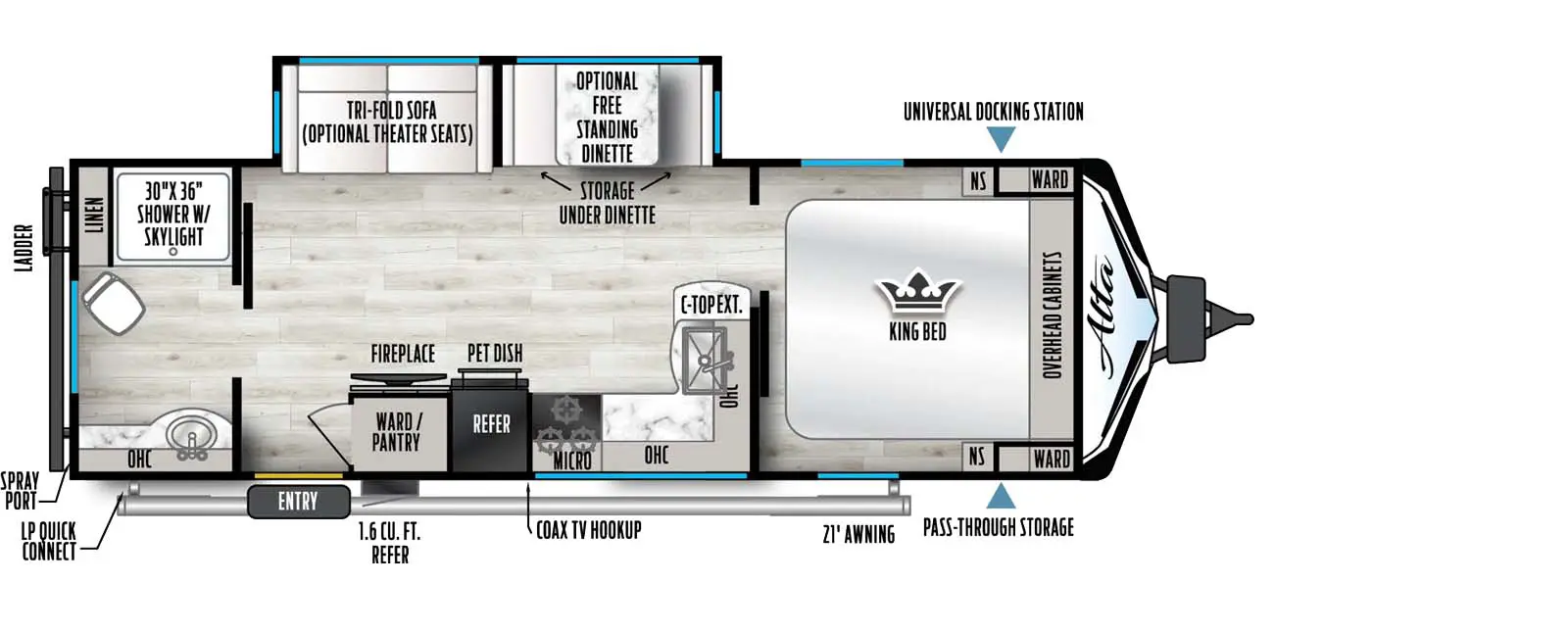

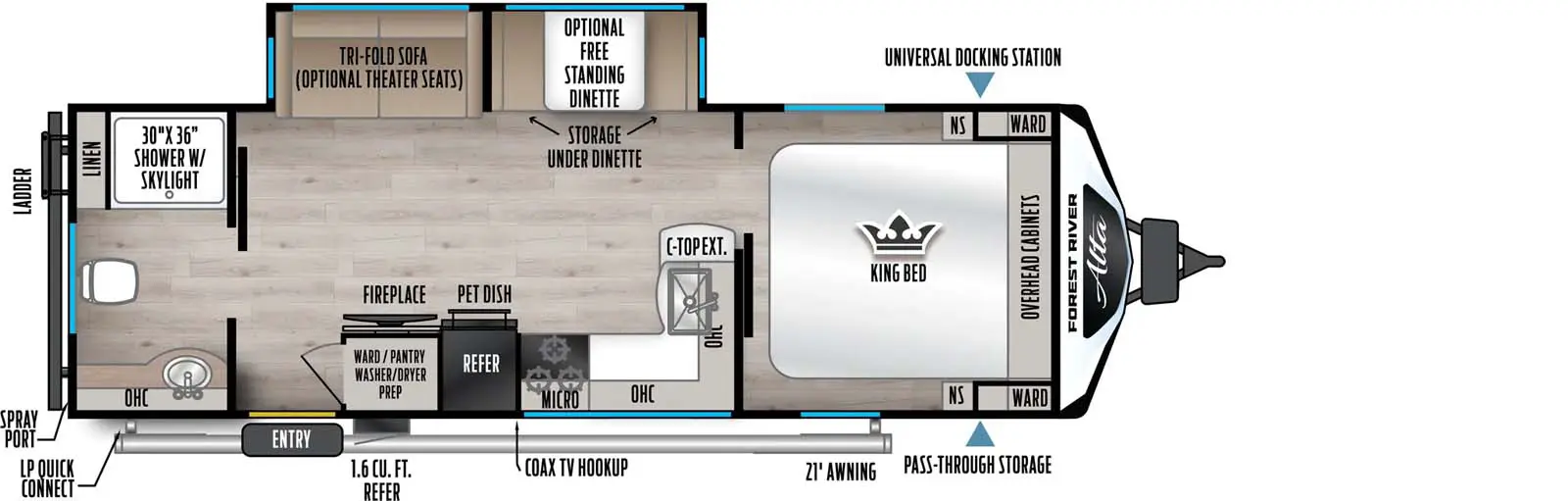

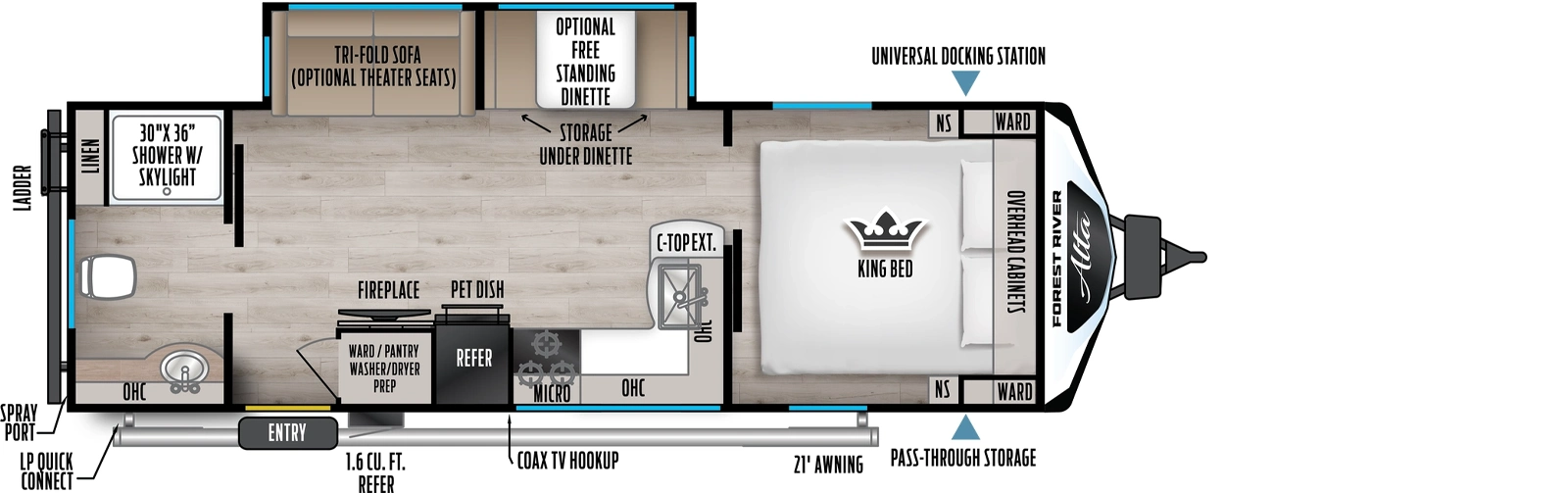

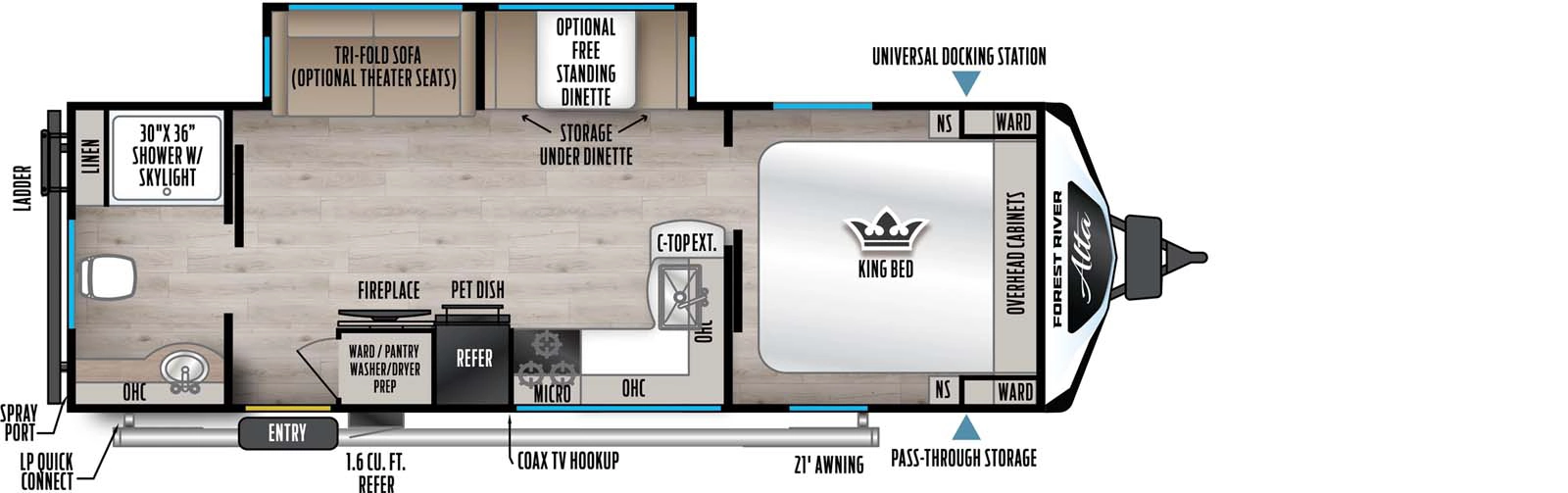

2600KRB
Has Gallery Photos Has 360 Tour

2600KRB


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

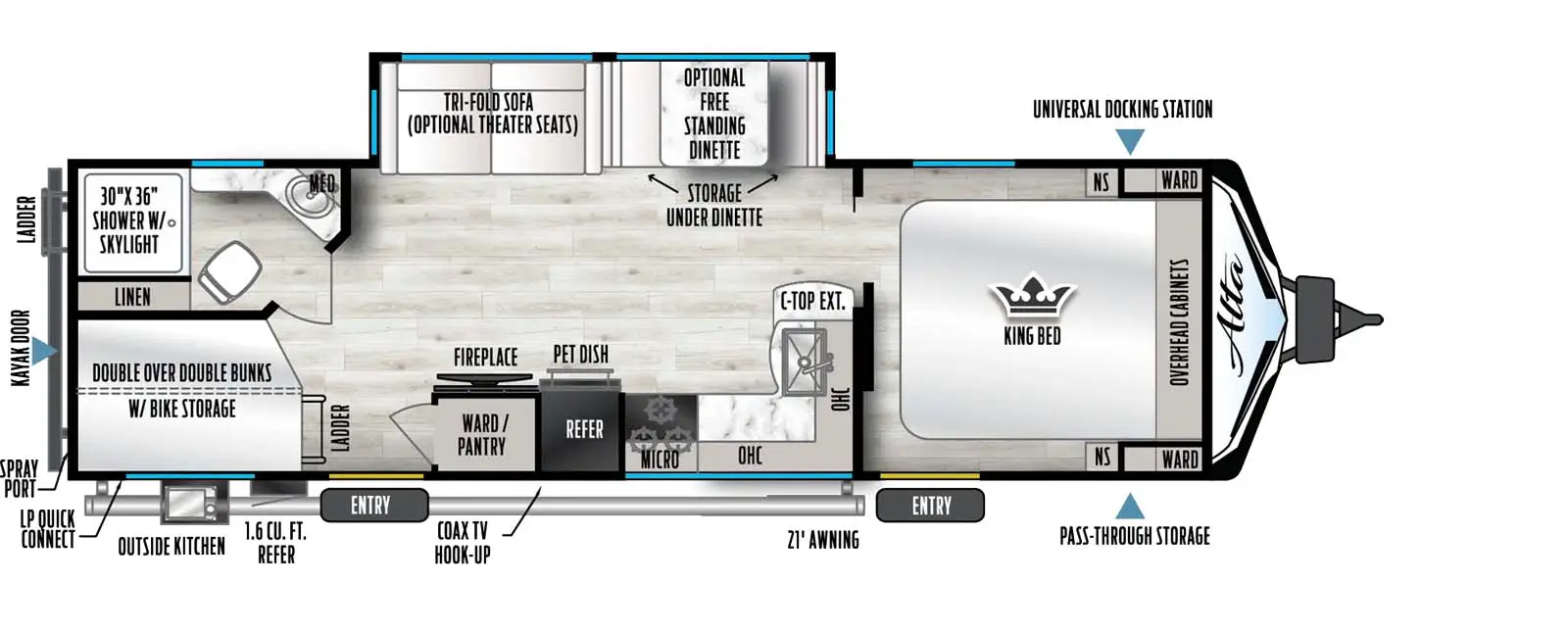

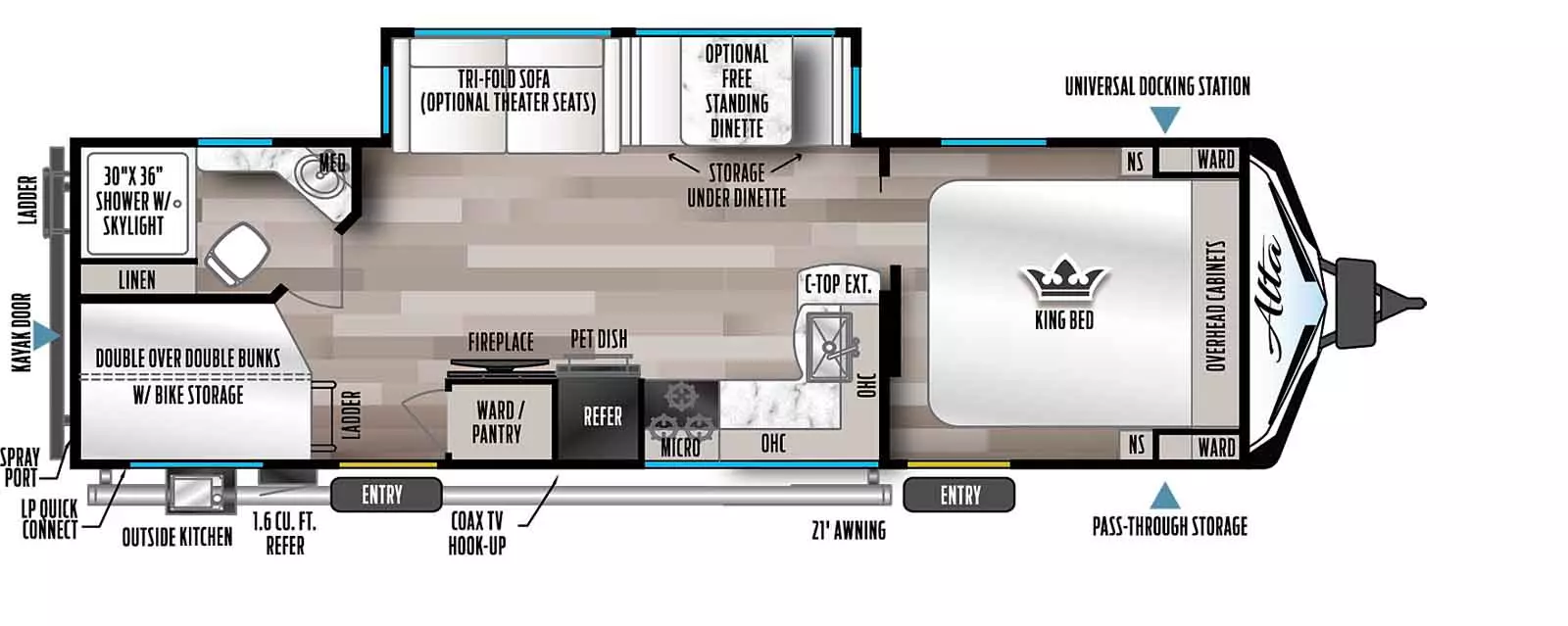

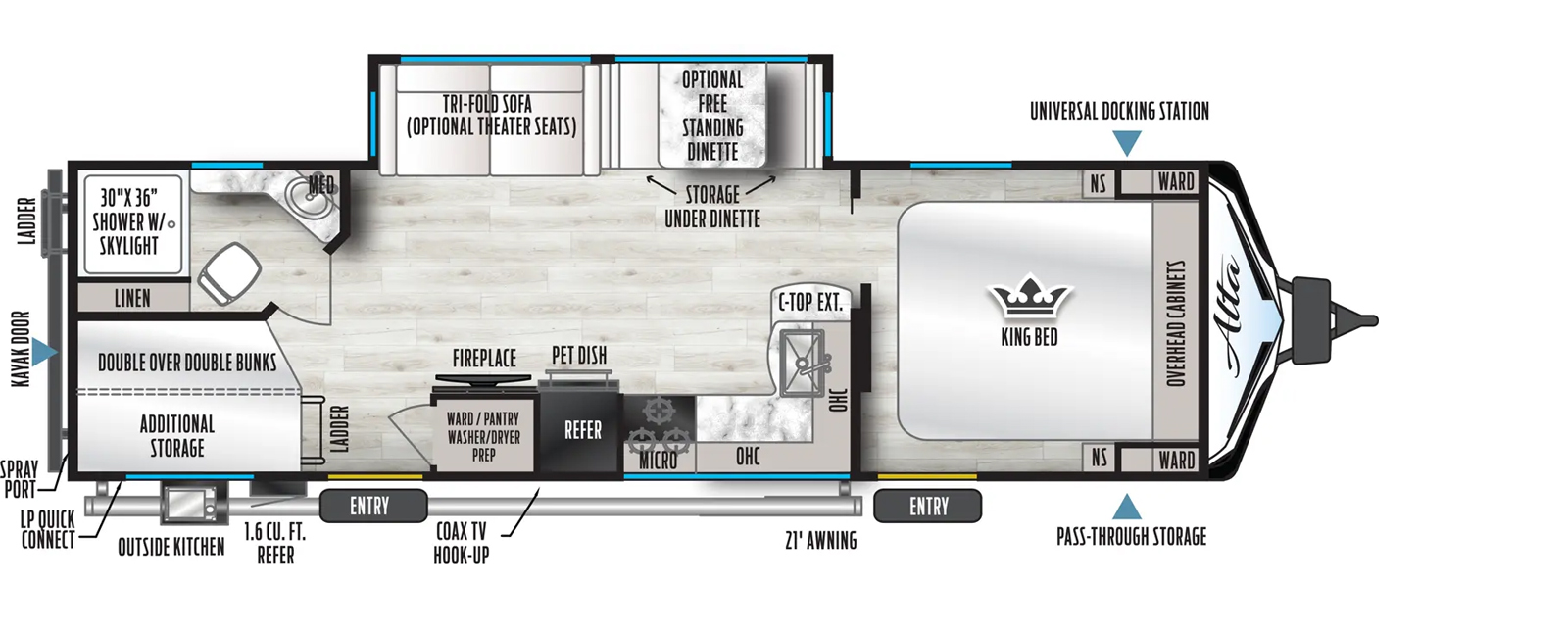

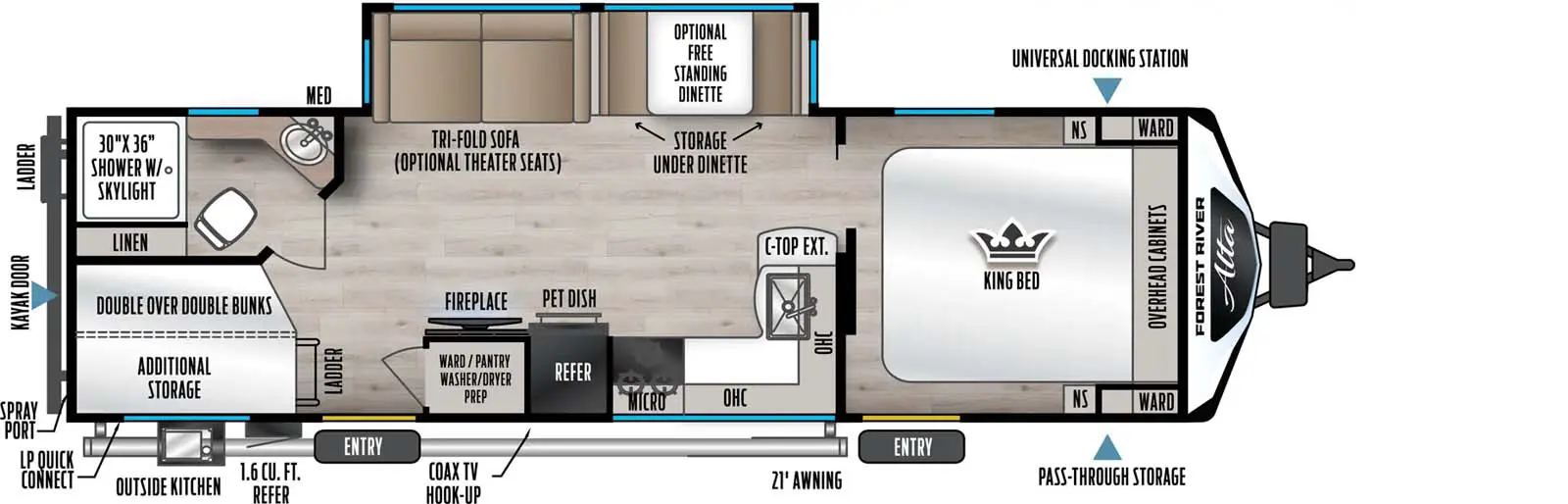

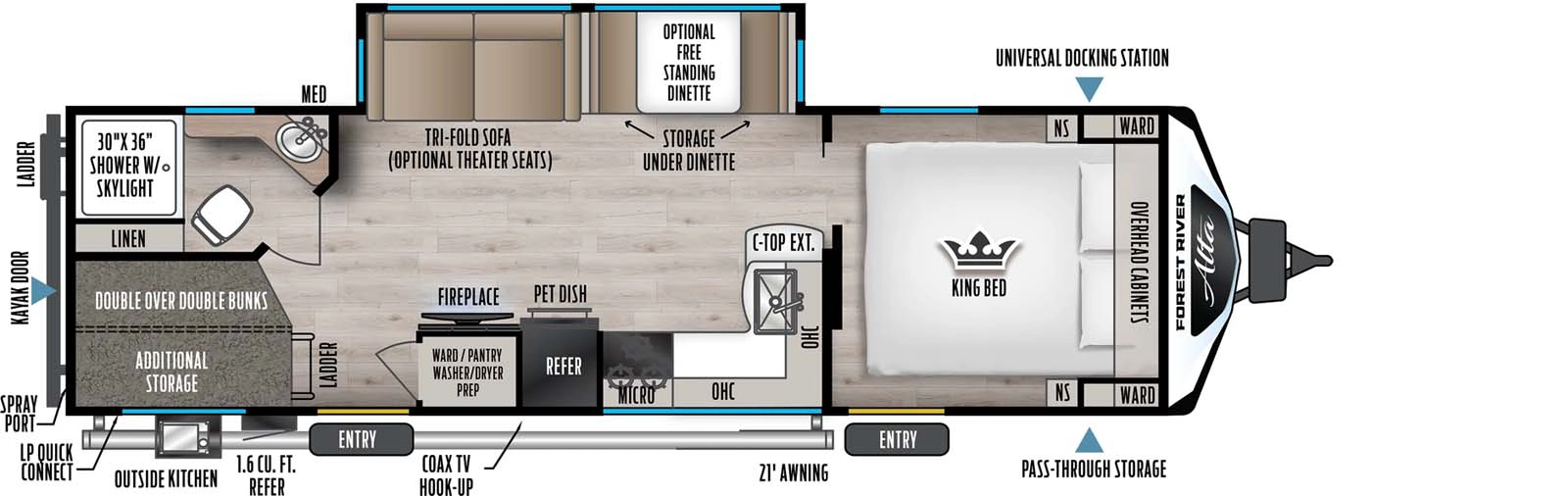

2800KBH
Has Gallery Photos Has 360 Tour Has Video Tour

2800KBH


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

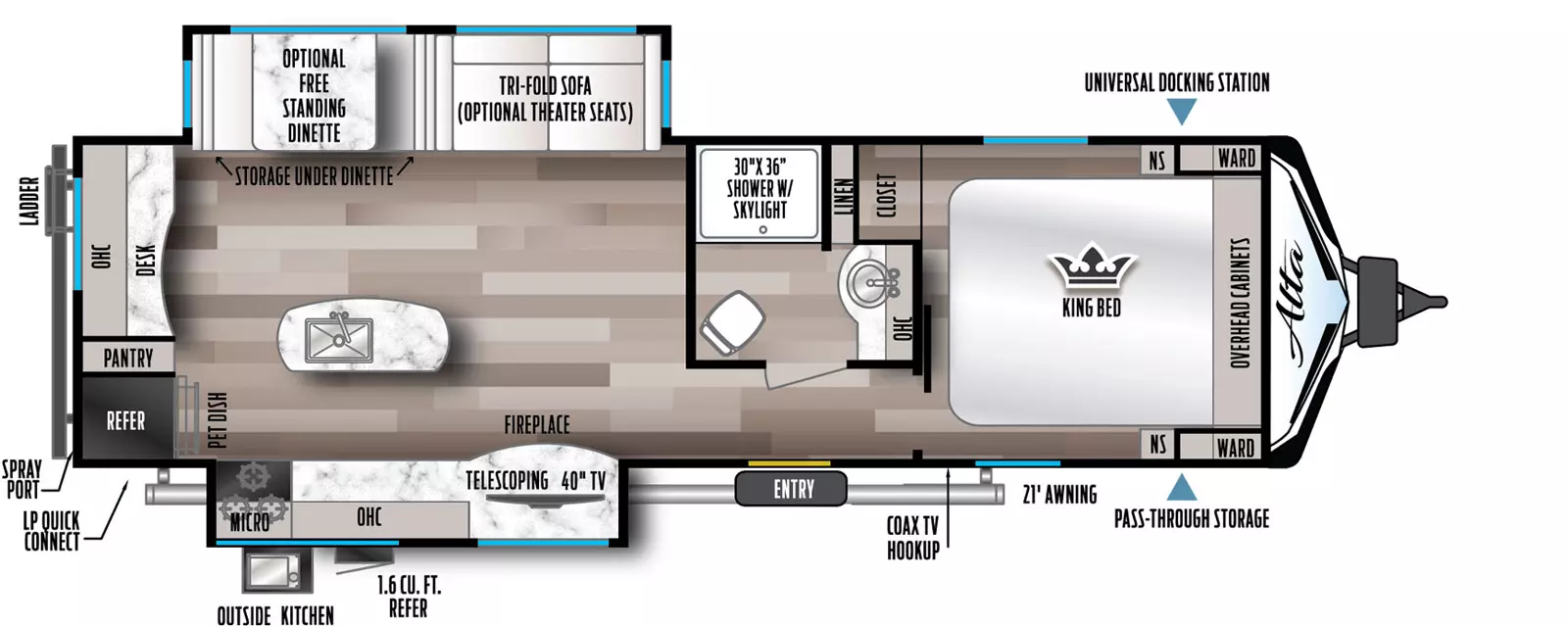

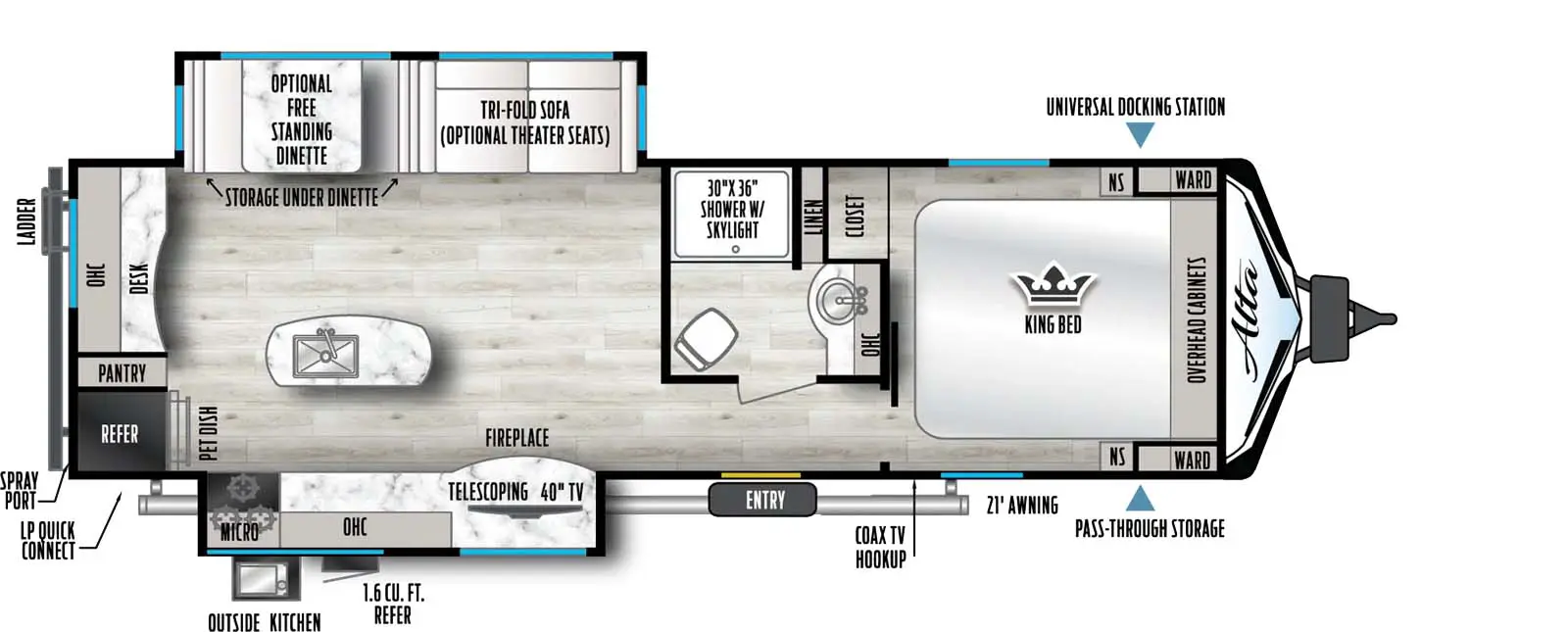

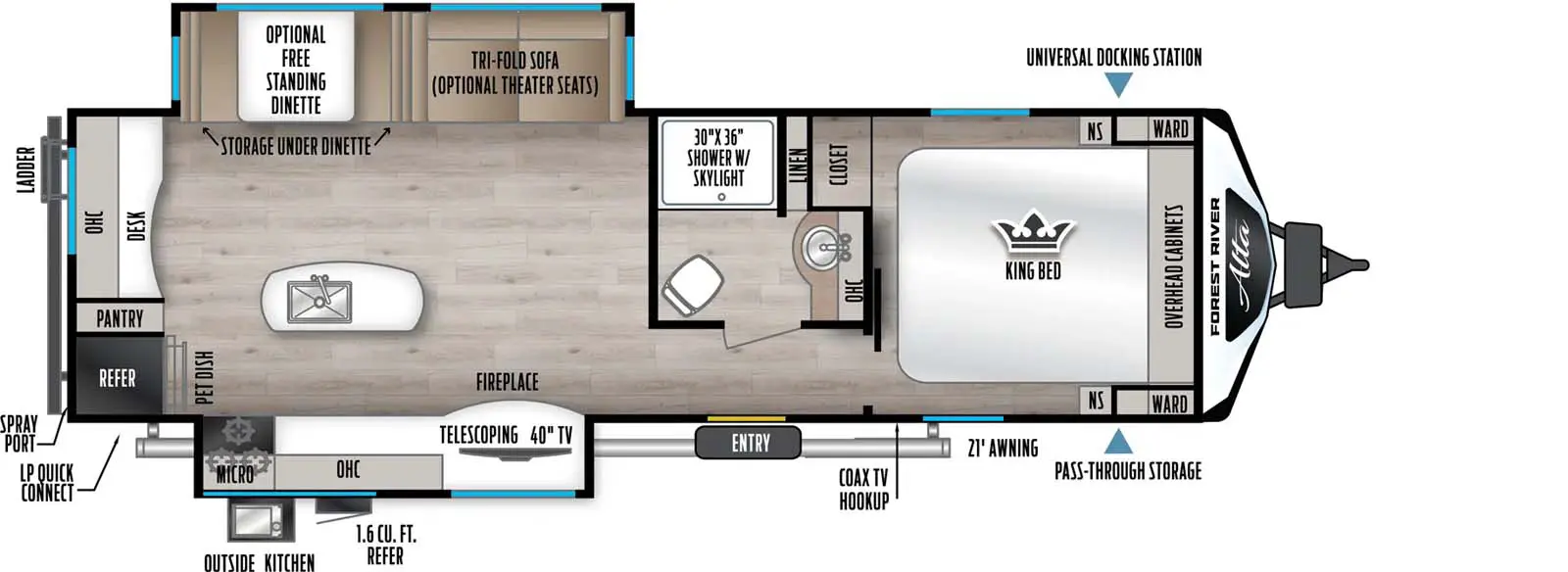

2810KIK
Has Gallery Photos Has 360 Tour

2810KIK


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

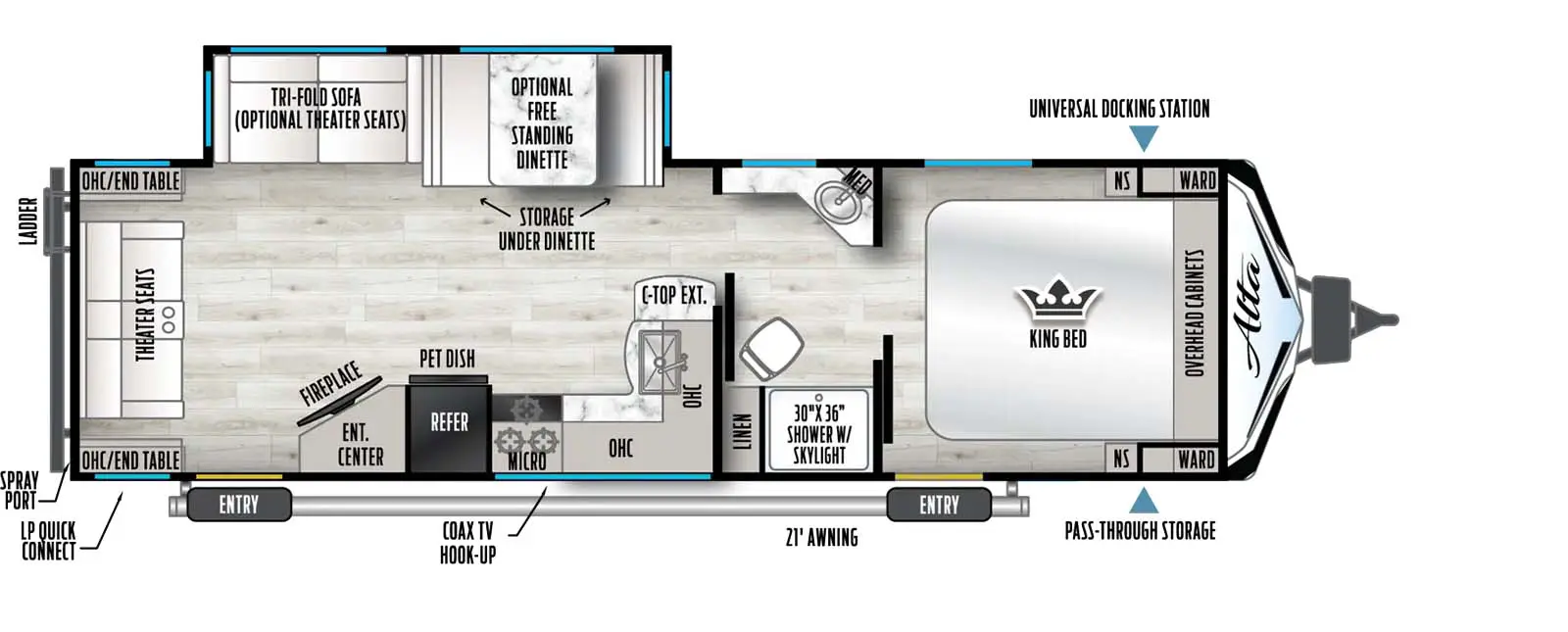

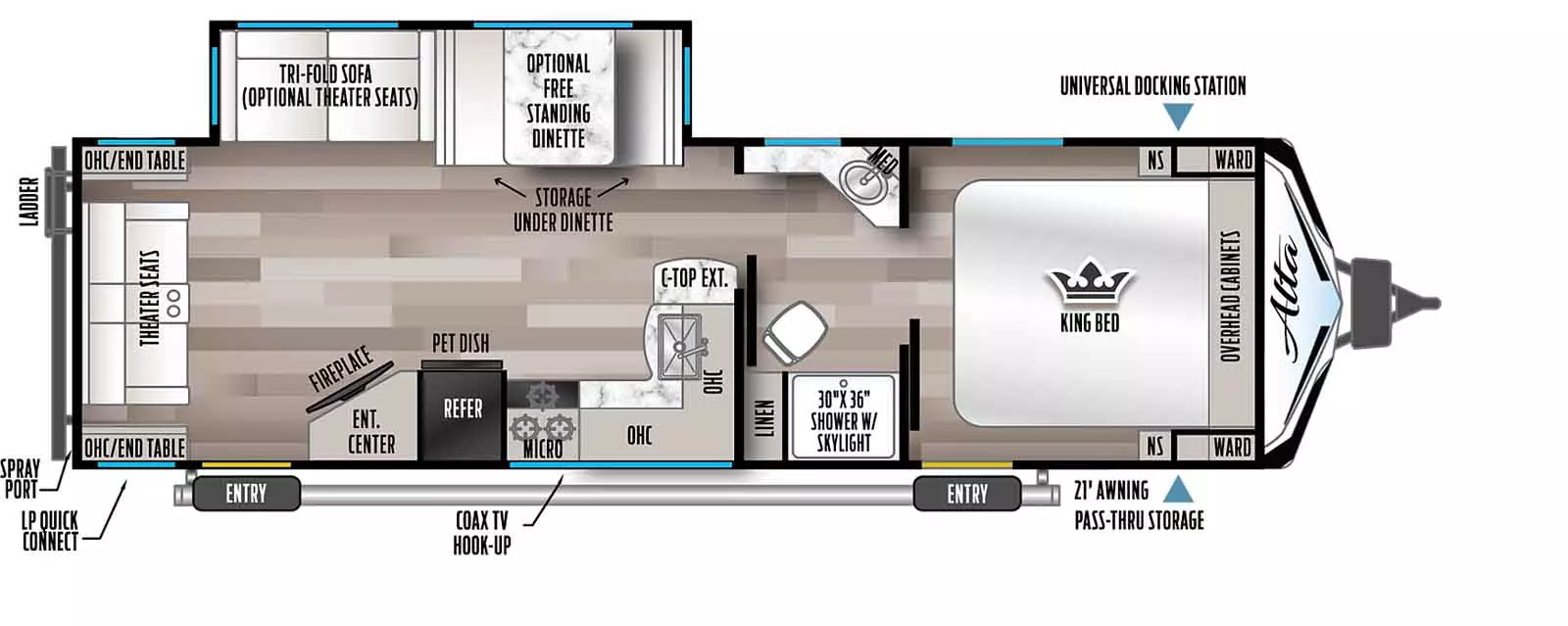

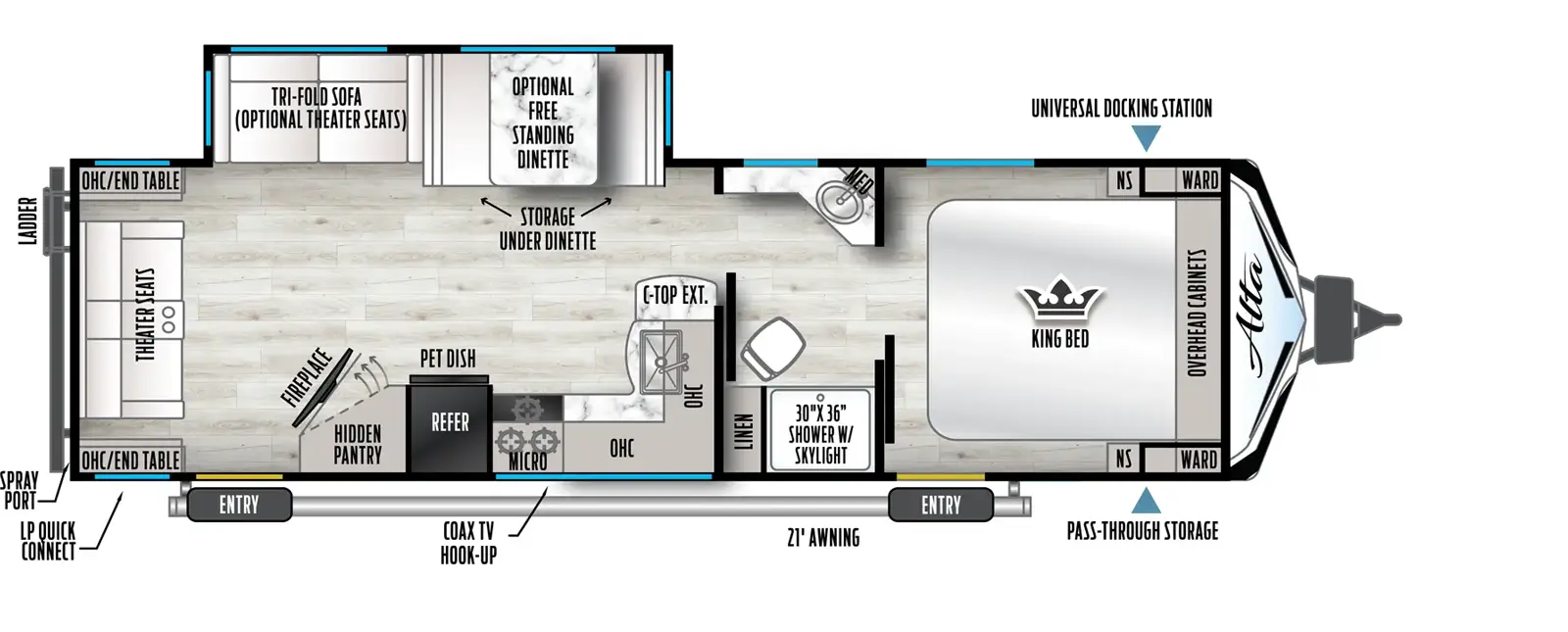

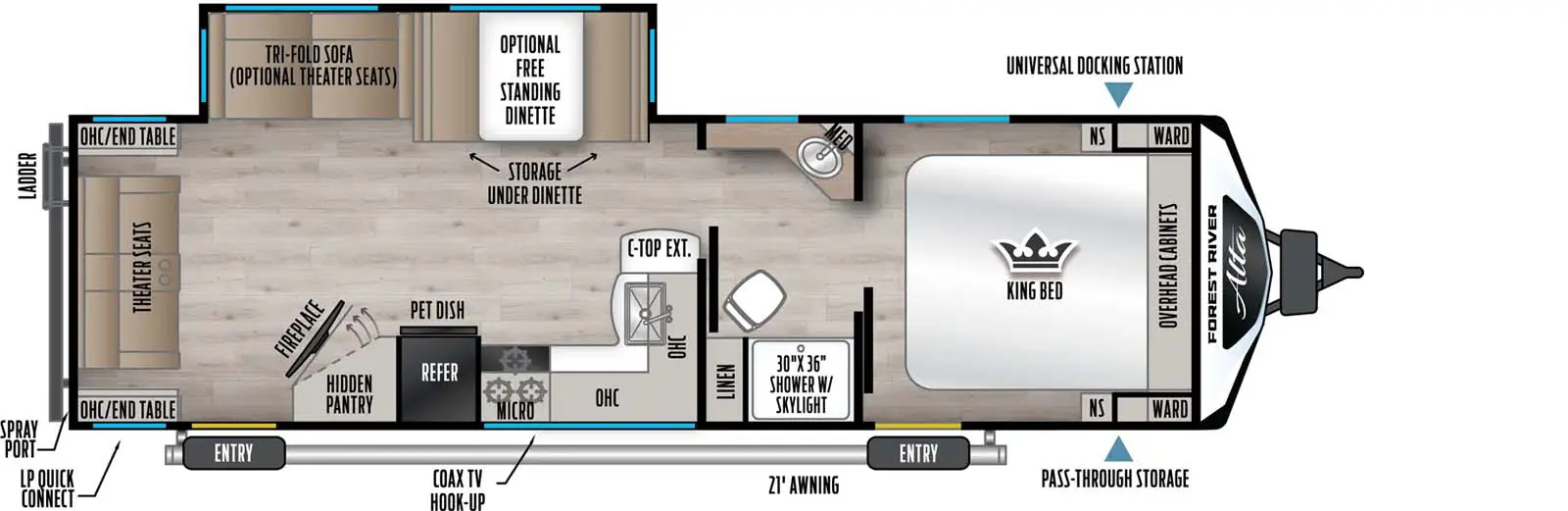

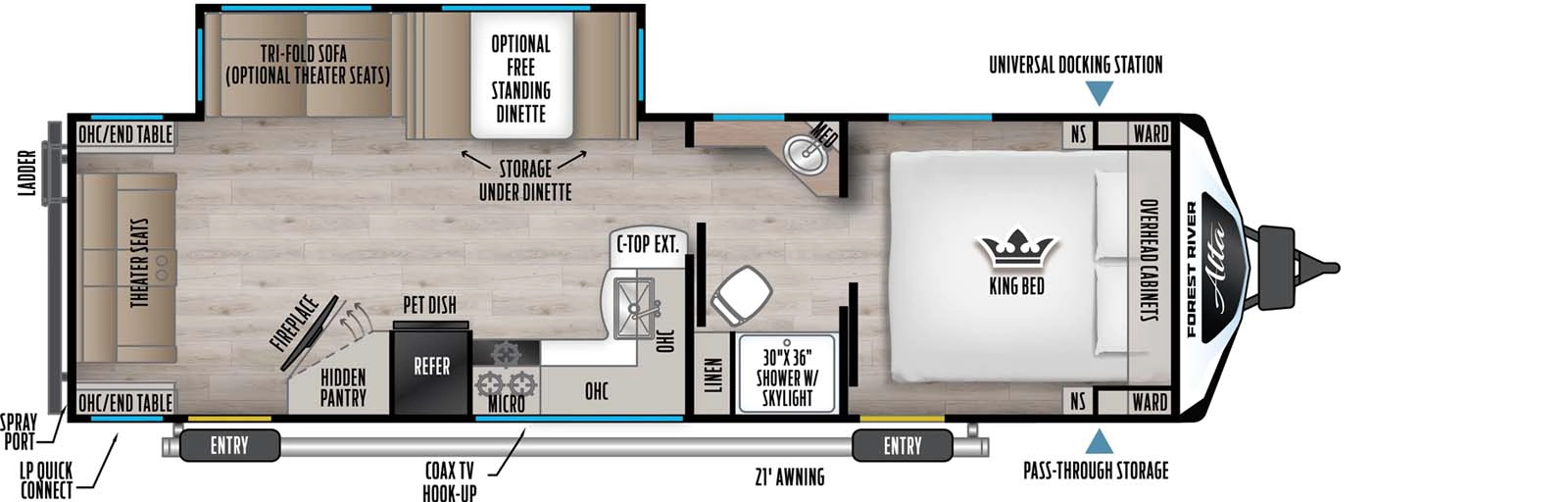

2850KRL
Has Gallery Photos Has 360 Tour

2850KRL


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.

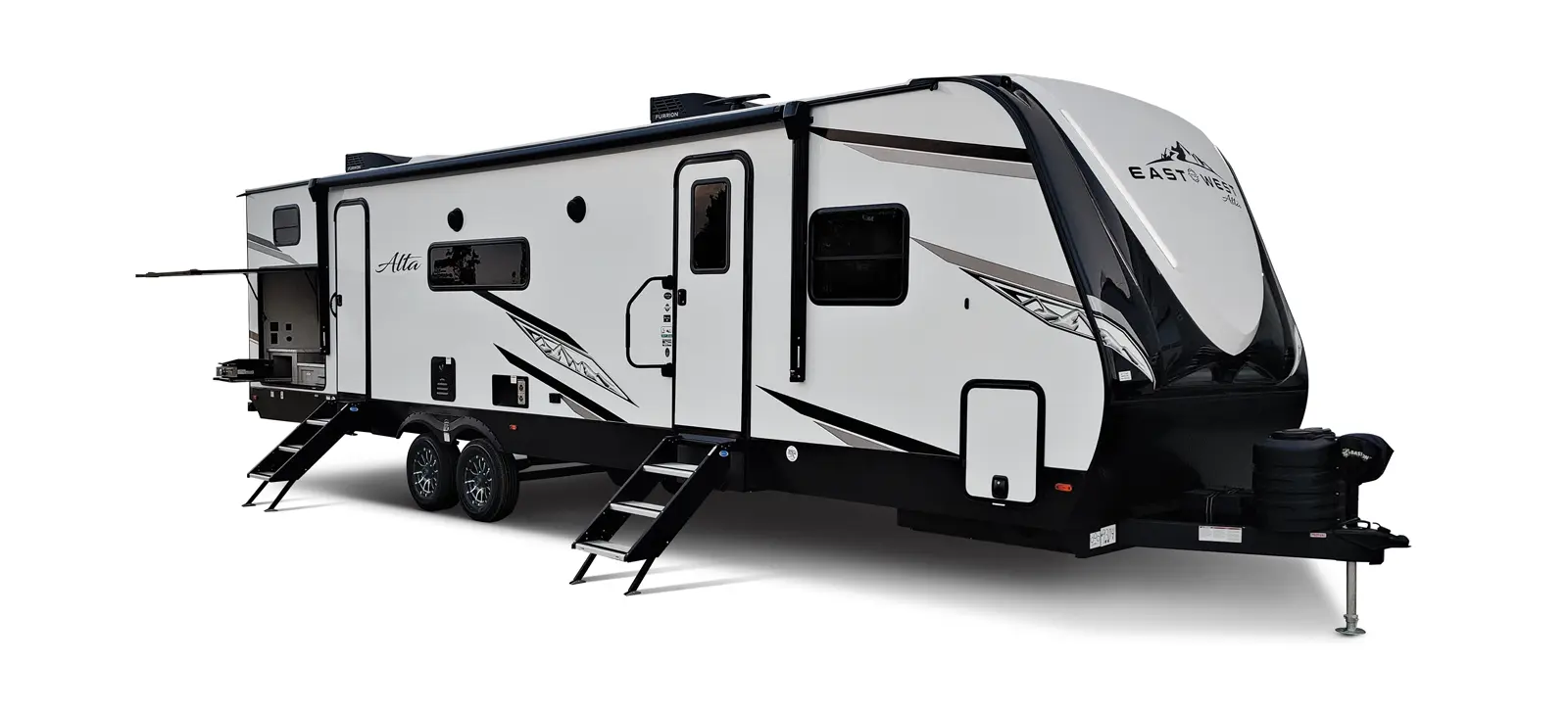

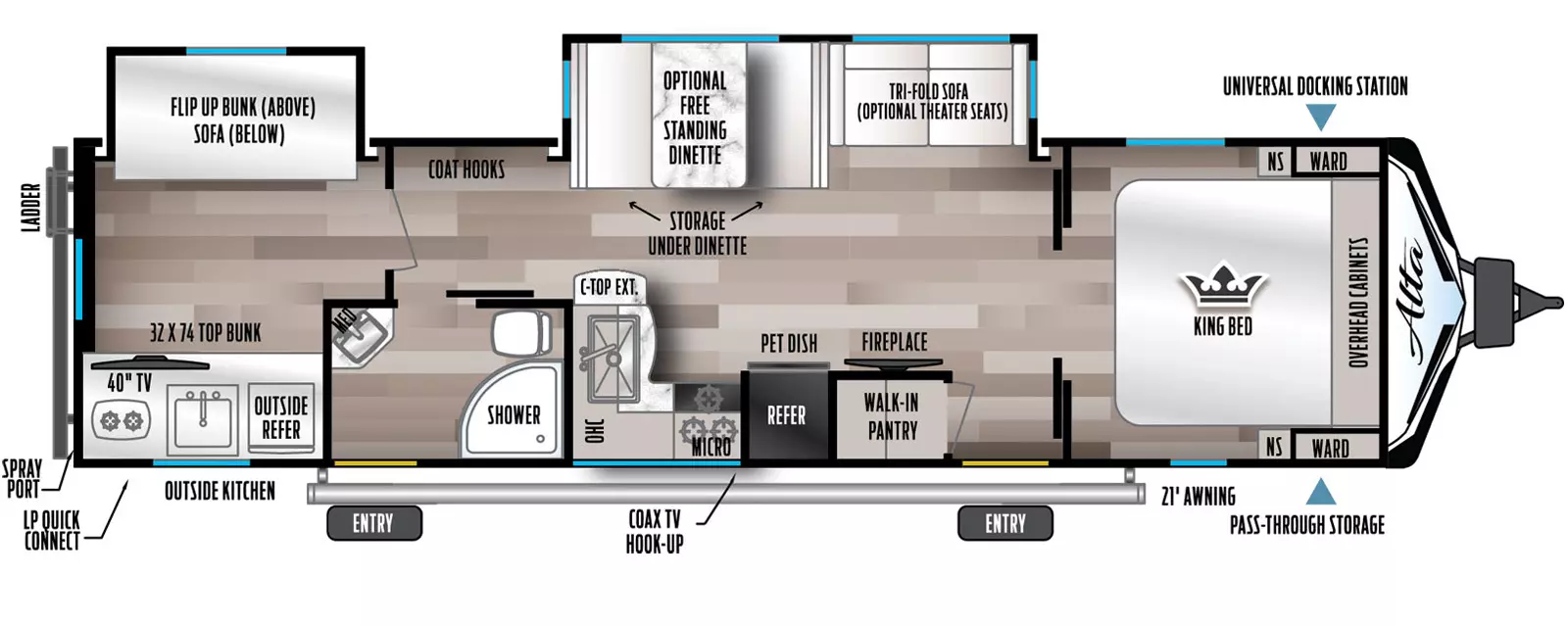

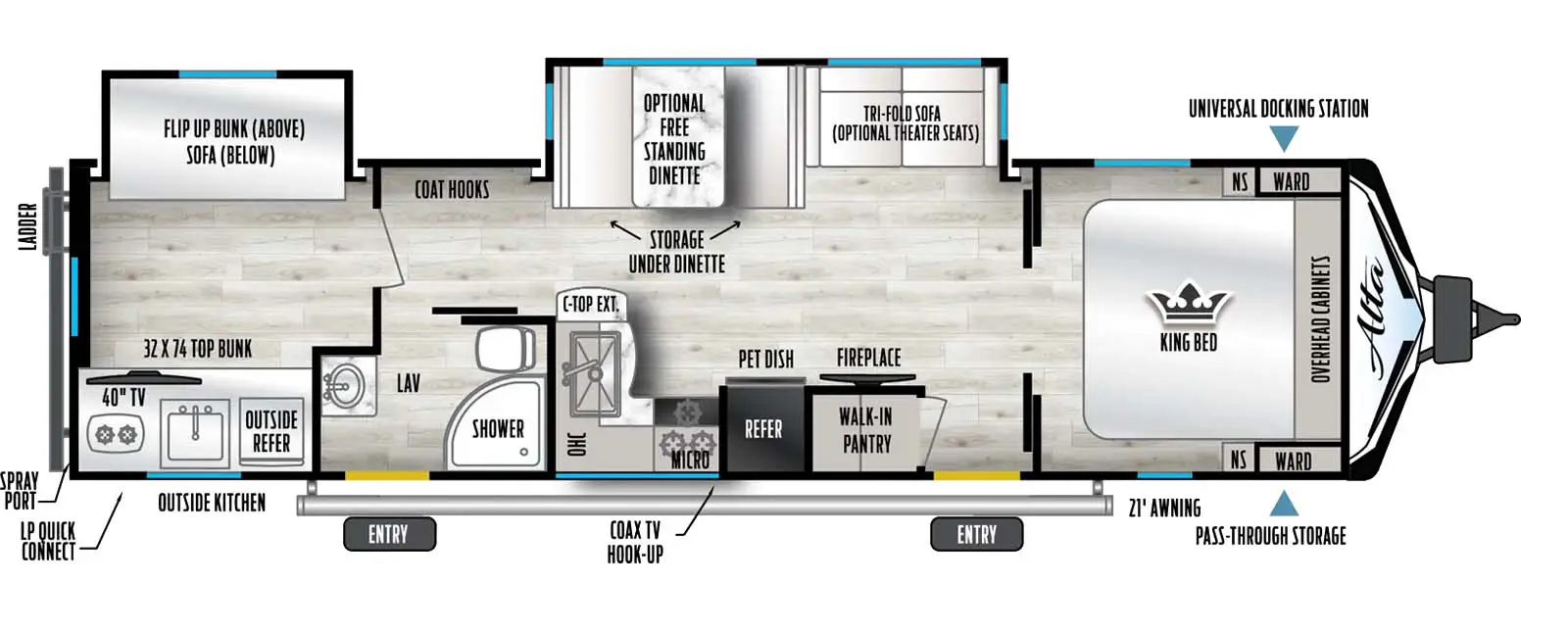

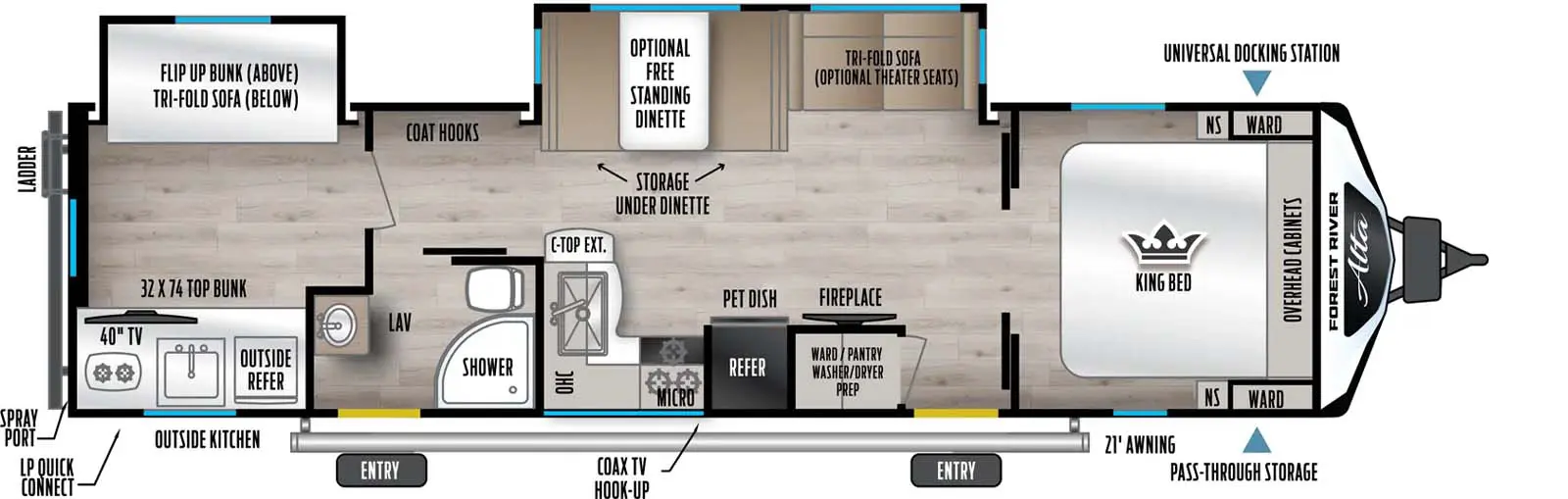

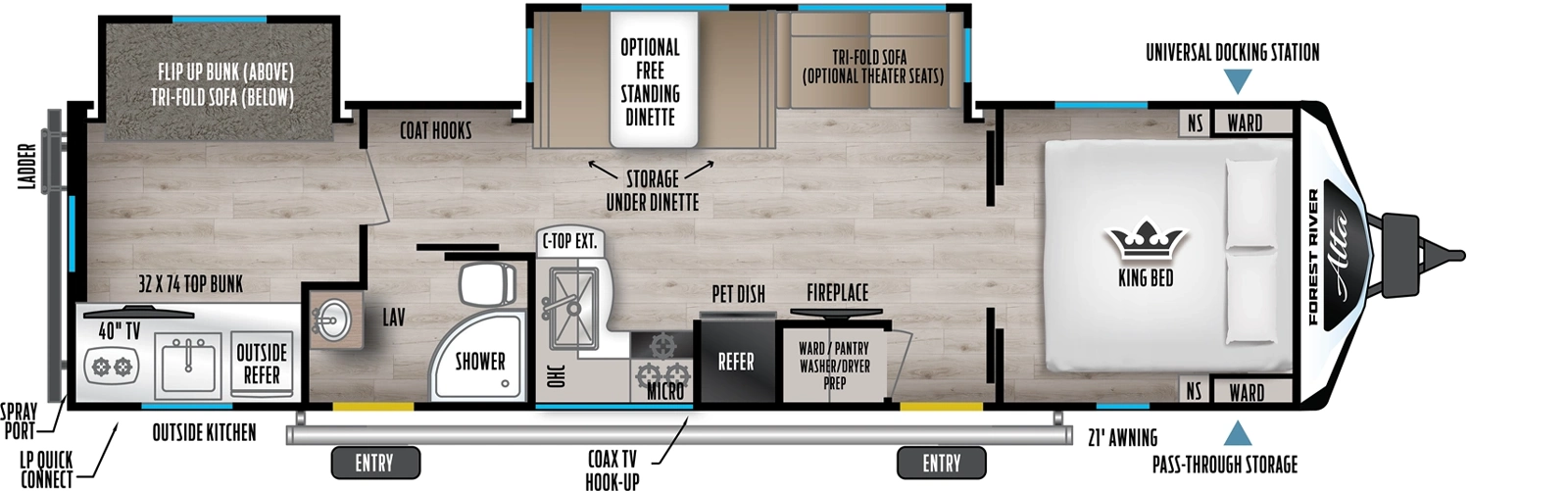

3150KBH
Has Gallery Photos Has 360 Tour Has Video Tour

3150KBH


 wish list
X
You must be logged in, or create an accont to use the Forest River wish list.

View your wish list here.
I am logged in now.


Specifications

Print


Hitch Weight:
UVW:
CCC:
Exterior Length:
Exterior Height:
Exterior Width:
Fresh Water:
Gray Water:
Black Water:
Awning Size:
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
TBD
14'
735 lb.
5378 lb.
2357 lb.
28' 4"
11' 2"
96"
55.00 gal.
30.00 gal.
30.00 gal.
18'
680 lb.
5957 lb.
3608 lb.
28' 6"
11' 2"
96"
53.00 gal.
60.00 gal.
30.00 gal.
19'
660 lb.
6213 lb.
3247 lb.
30' 1"
11' 2"
96"
53.00 gal.
60.00 gal.
30.00 gal.
21'
784 lb.
6864 lb.
2720 lb.
33' 8"
11' 2"
96"
53.00 gal.
60.00 gal.
30.00 gal.
19'
797 lb.
7280 lb.
2317 lb.
33' 8"
11' 2"
96"
53.00 gal.
60.00 gal.
30.00 gal.
21'
778 lb.
6903 lb.
2675 lb.
33' 7"
11' 2"
96"
53.00 gal.
60.00 gal.
30.00 gal.
21'
891 lb.
7963 lb.
3328 lb.
37' 8"
11' 2"
96"
53.00 gal.
60.00 gal.
30.00 gal.
20'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each East To West RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every East To West RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print

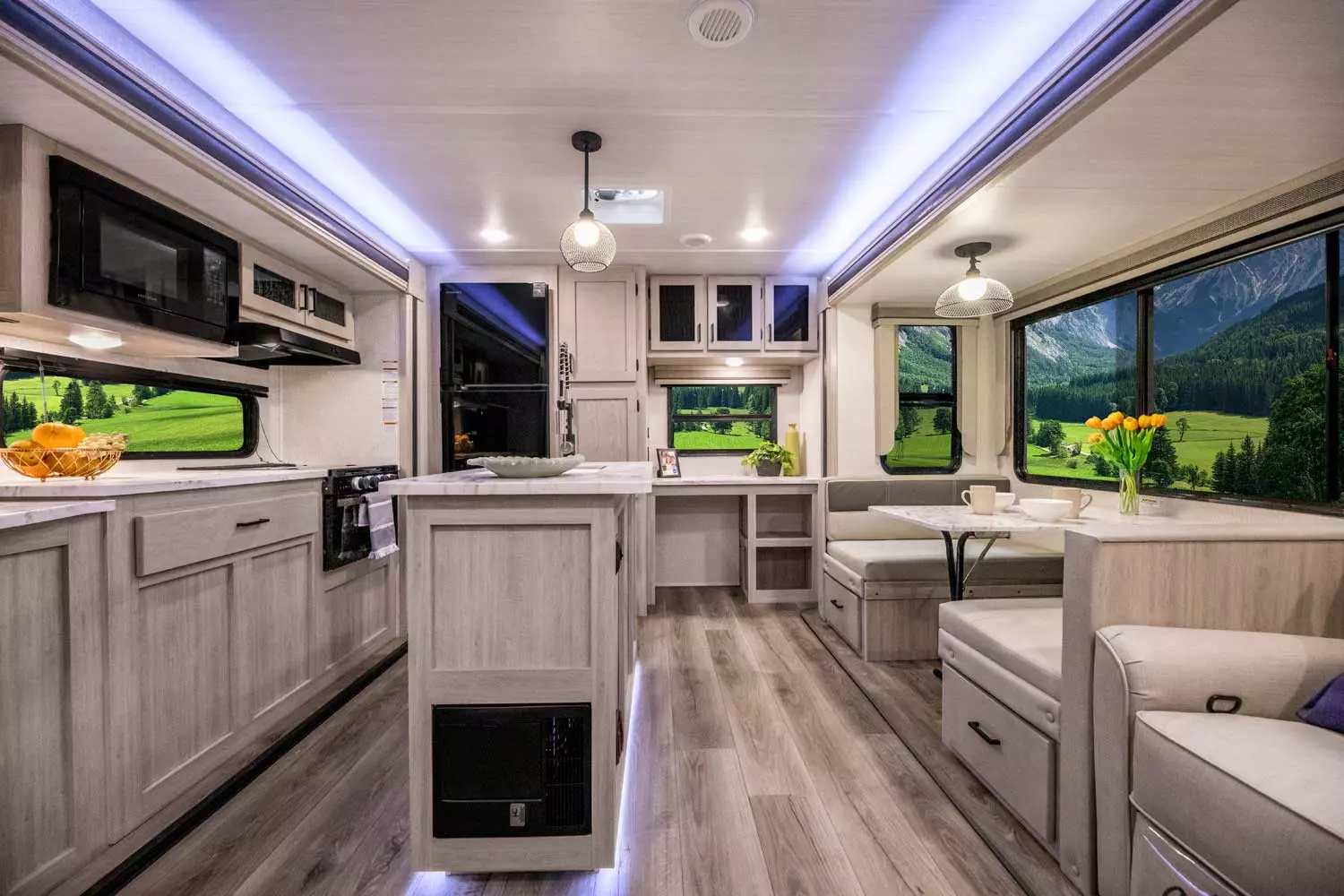

  • 81" Interior Ceiling Height

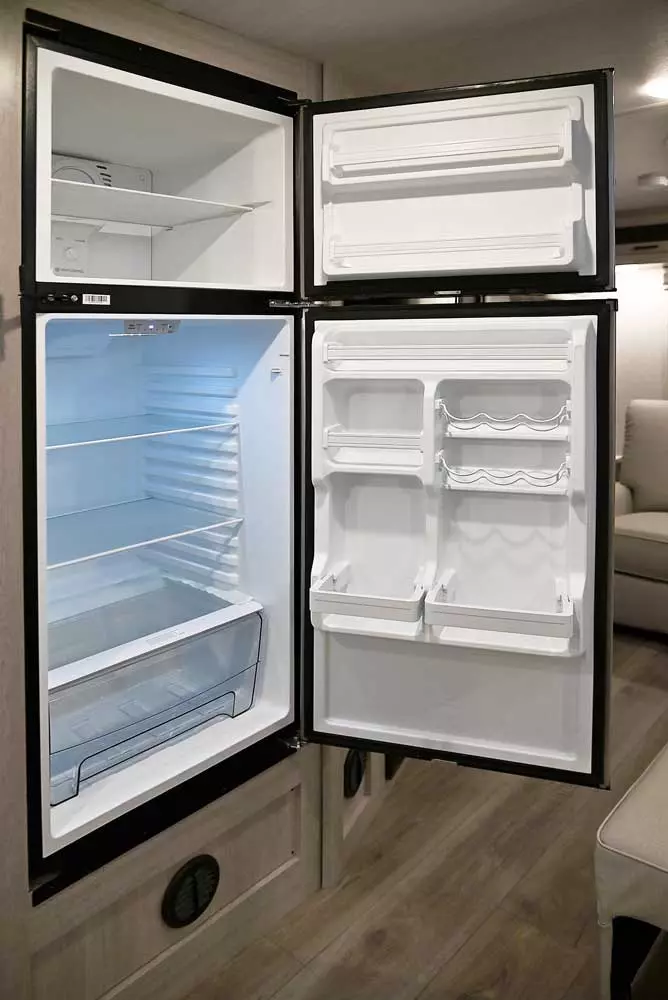

  • 10.5 Cubic Foot Stainless Steel Refrigerator
  • Solid Bedroom Door Where Applicable
  • Cable/Satellite Ready

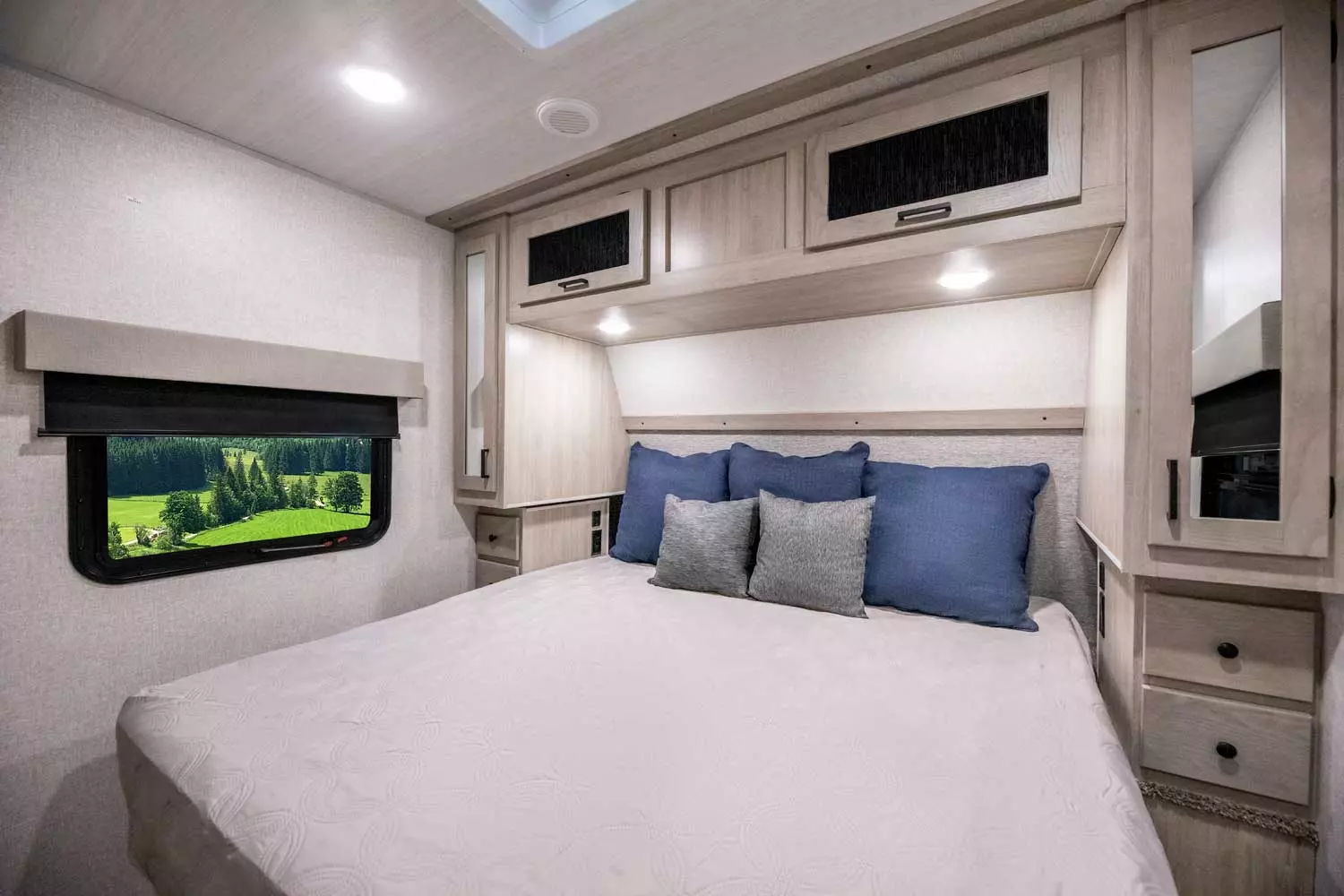

  • USB Charging Stations (Beds, Bunks, & Tables Where Available)

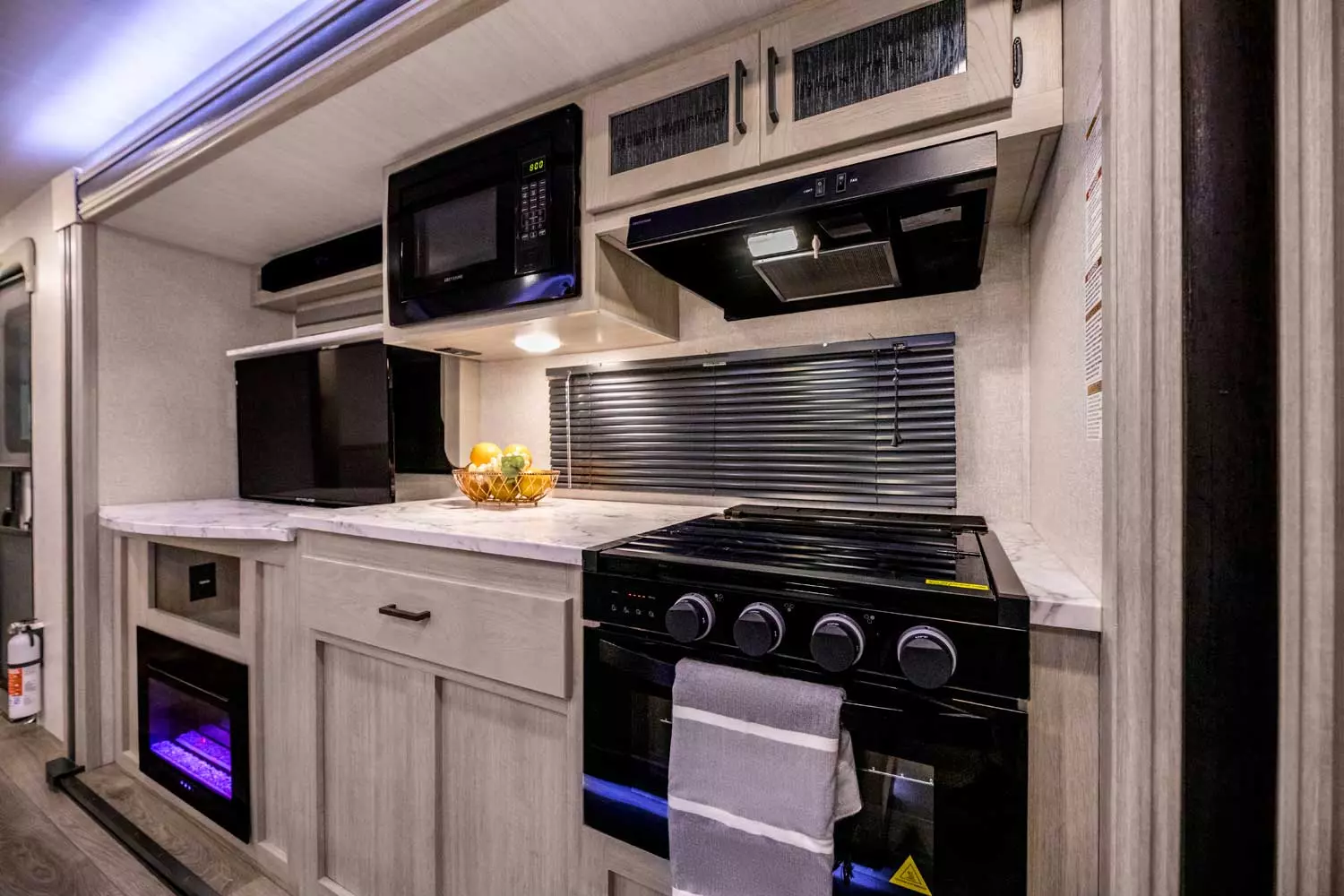

  • 3-Burner Range w/Oven In Place of Cooktop
  • Sink Cover

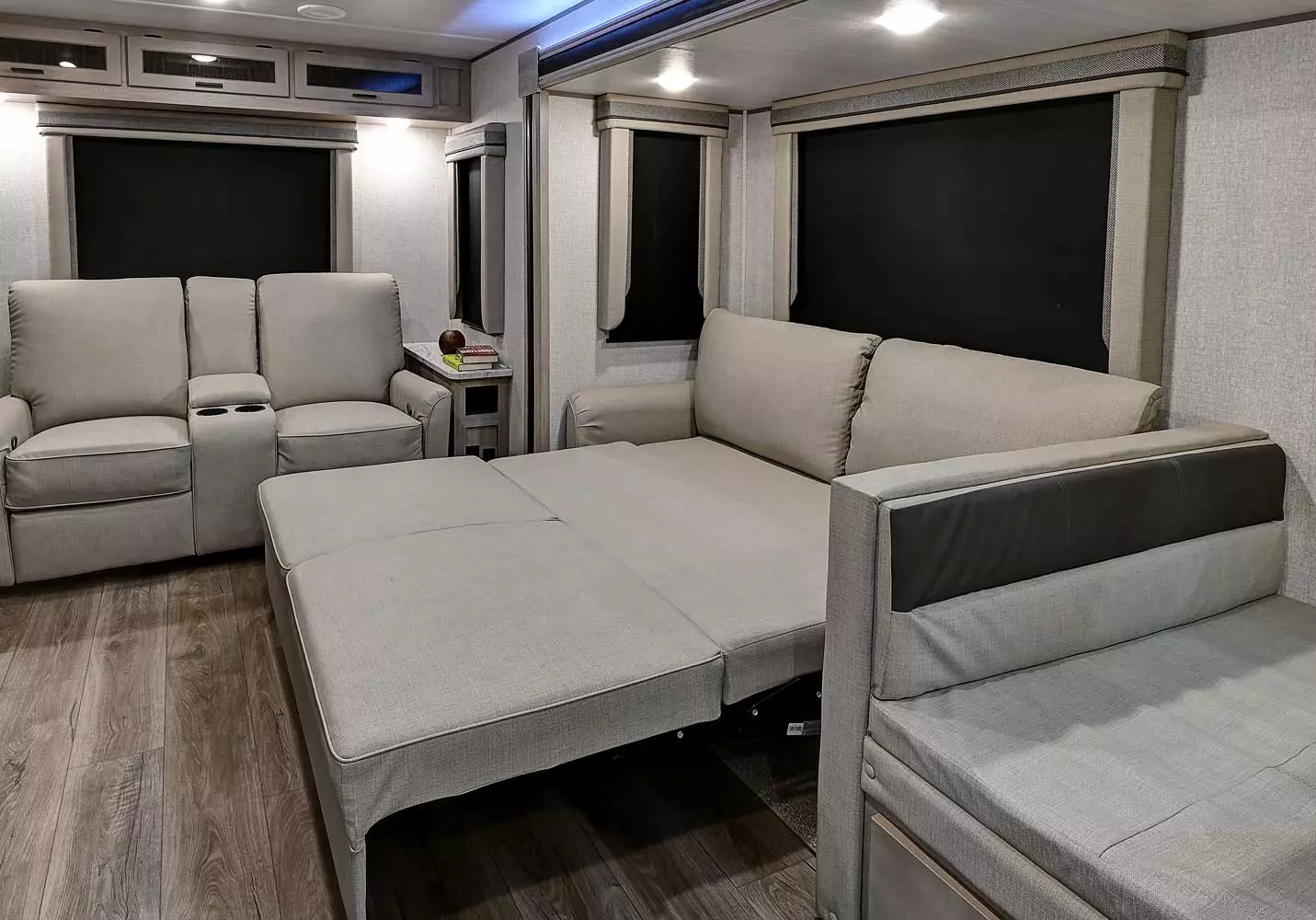

  • Tri-fold Sleeper Sofa

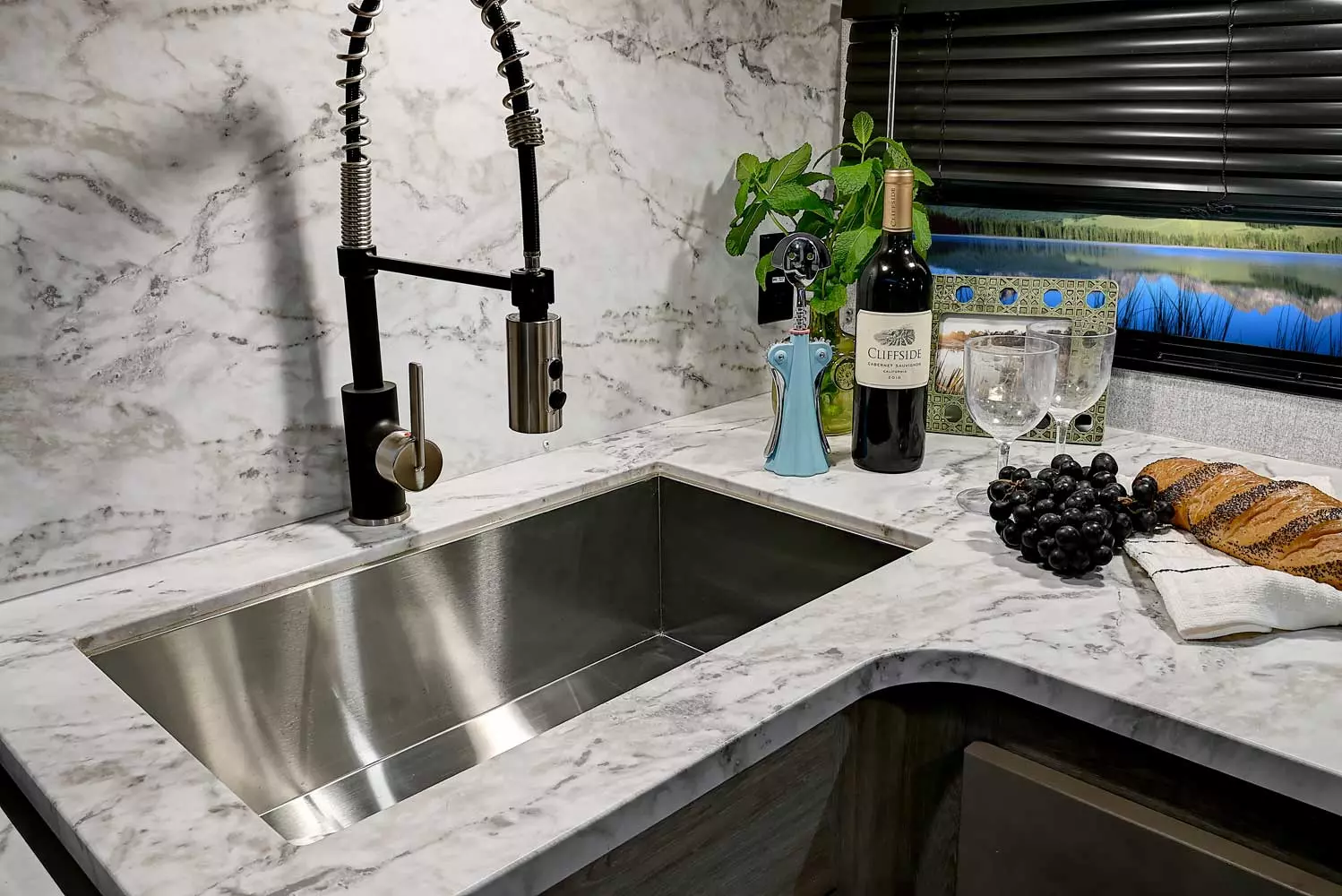

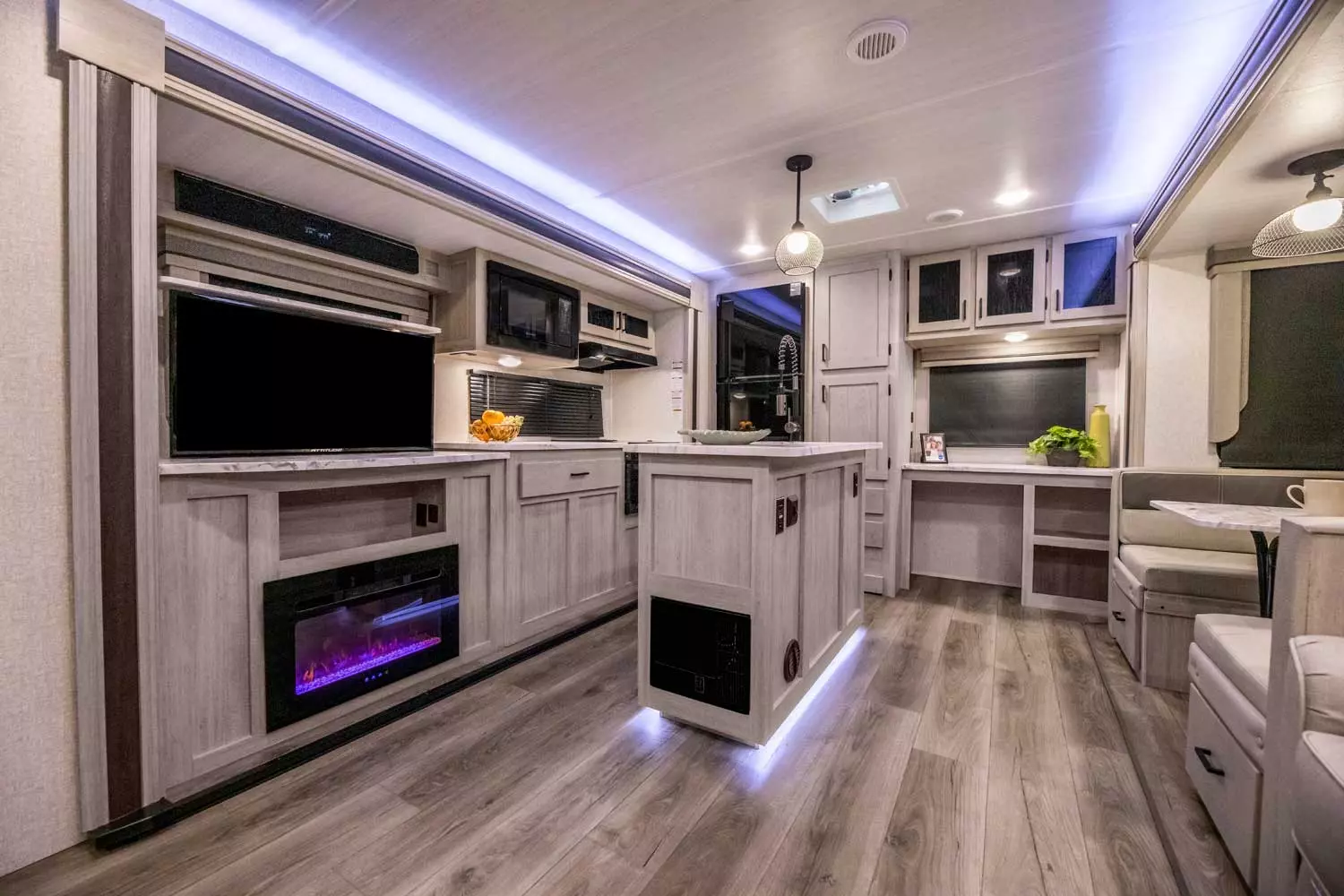

  • Designer Solid Surface Countertops

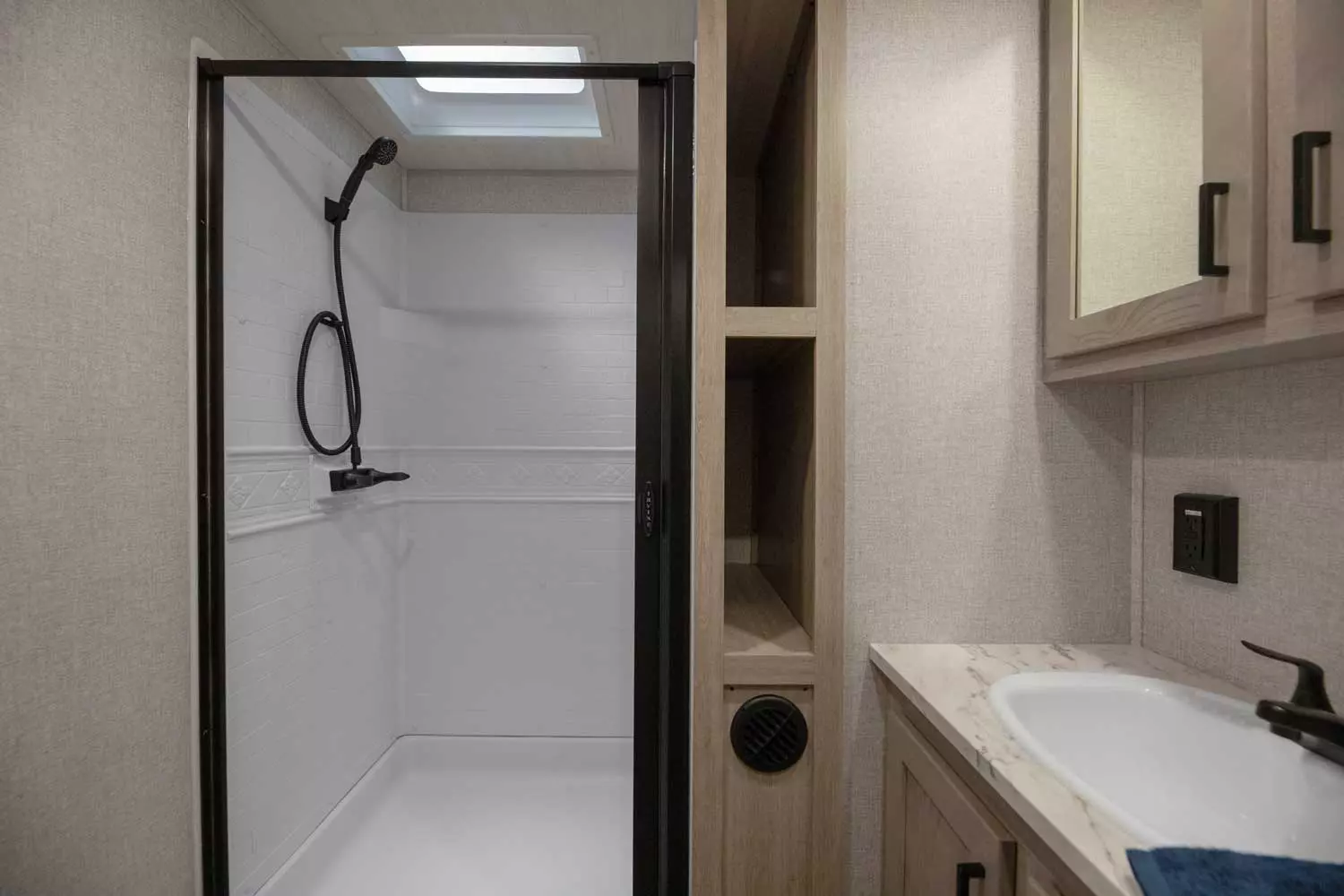

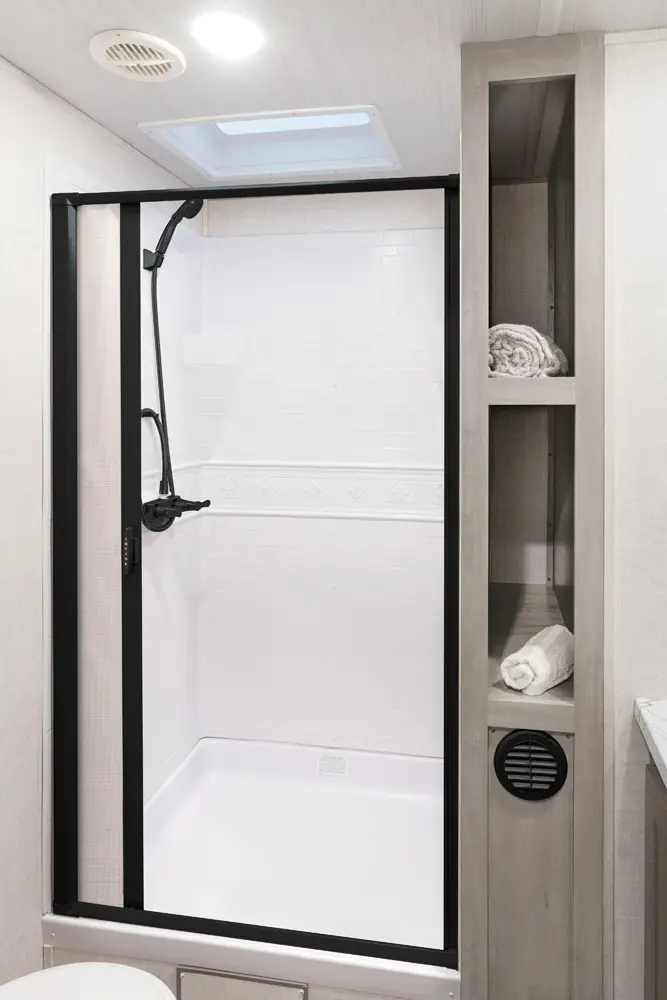

  • Skylight Above Shower/Tub
  • Interior LED Lights
  • ABS Tub Surround & Cabinet In Bath Where Available
  • Oversized Window Package With Valance and Lambrequins Window Treatments

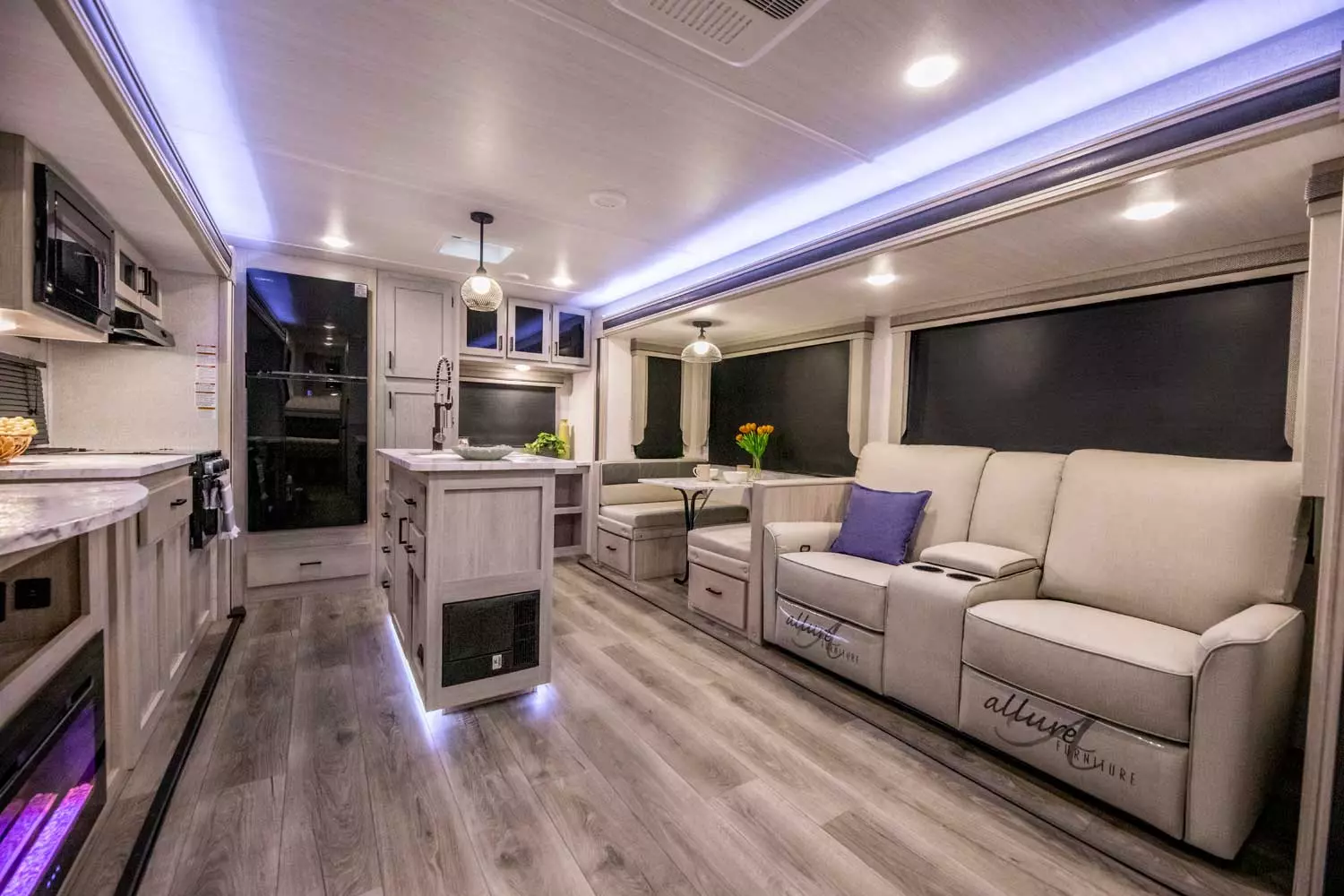

  • Black Roller Shades

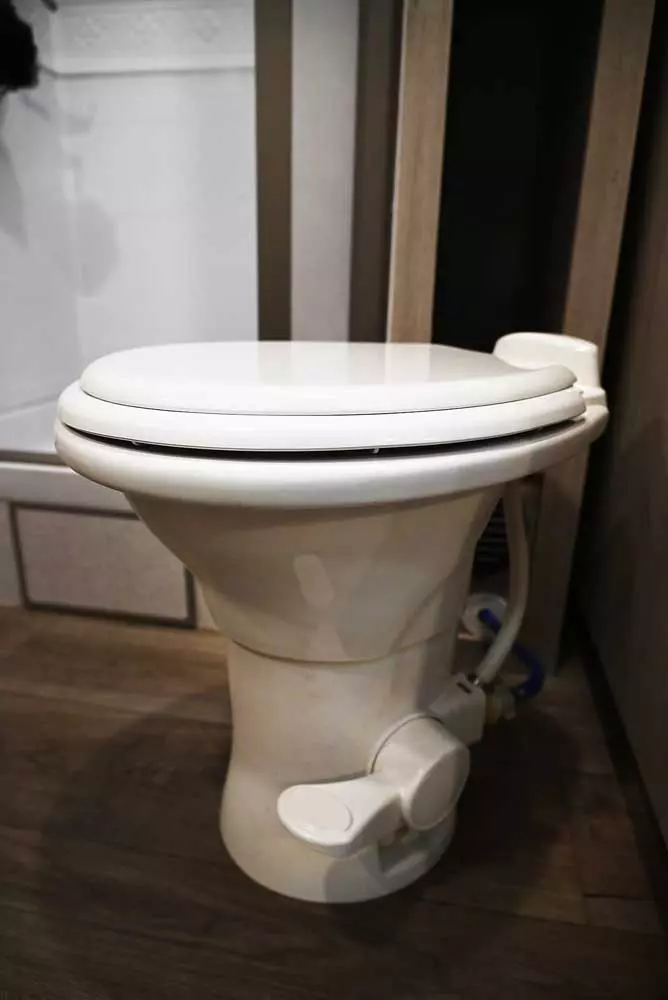

  • Foot Flush Toilet

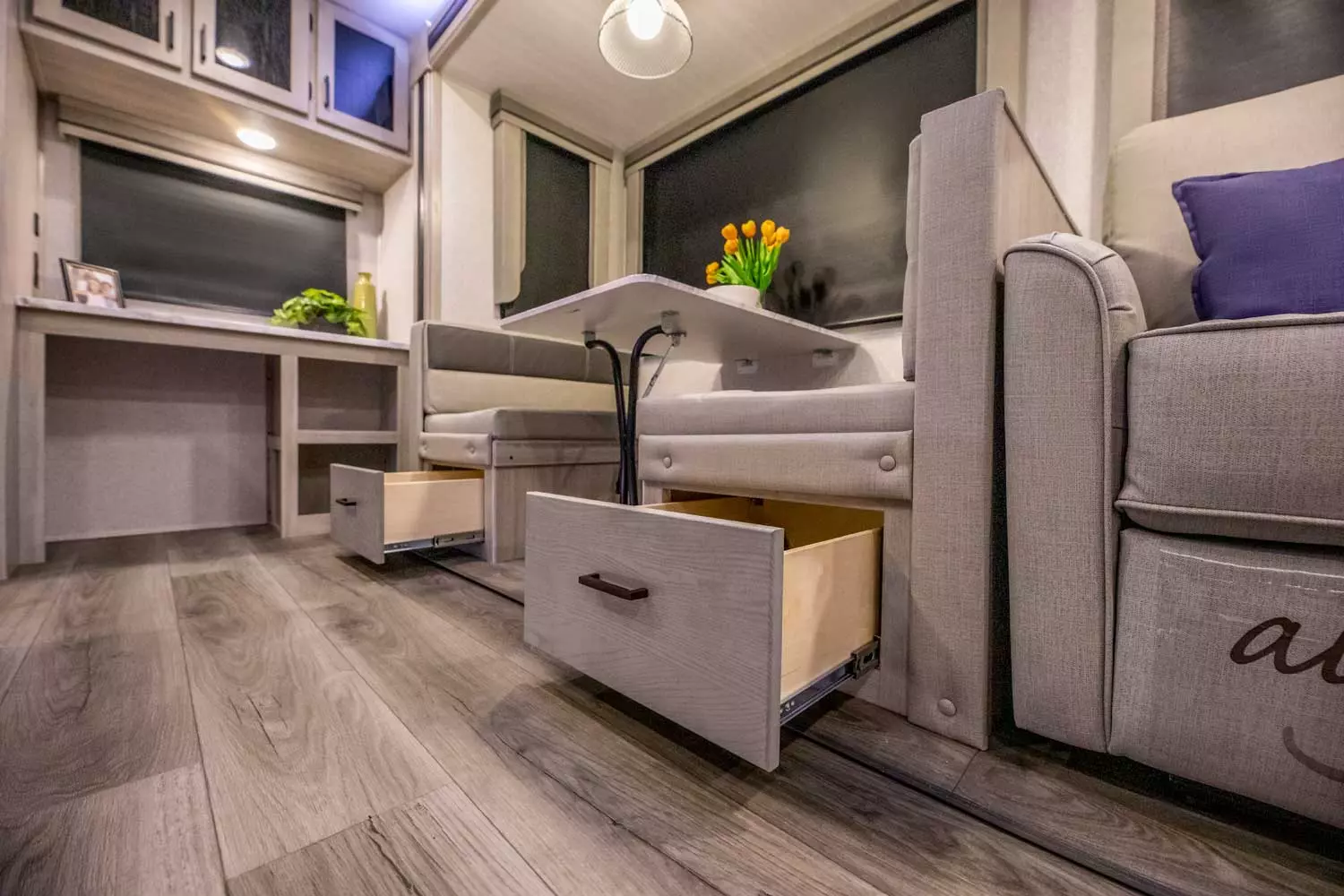

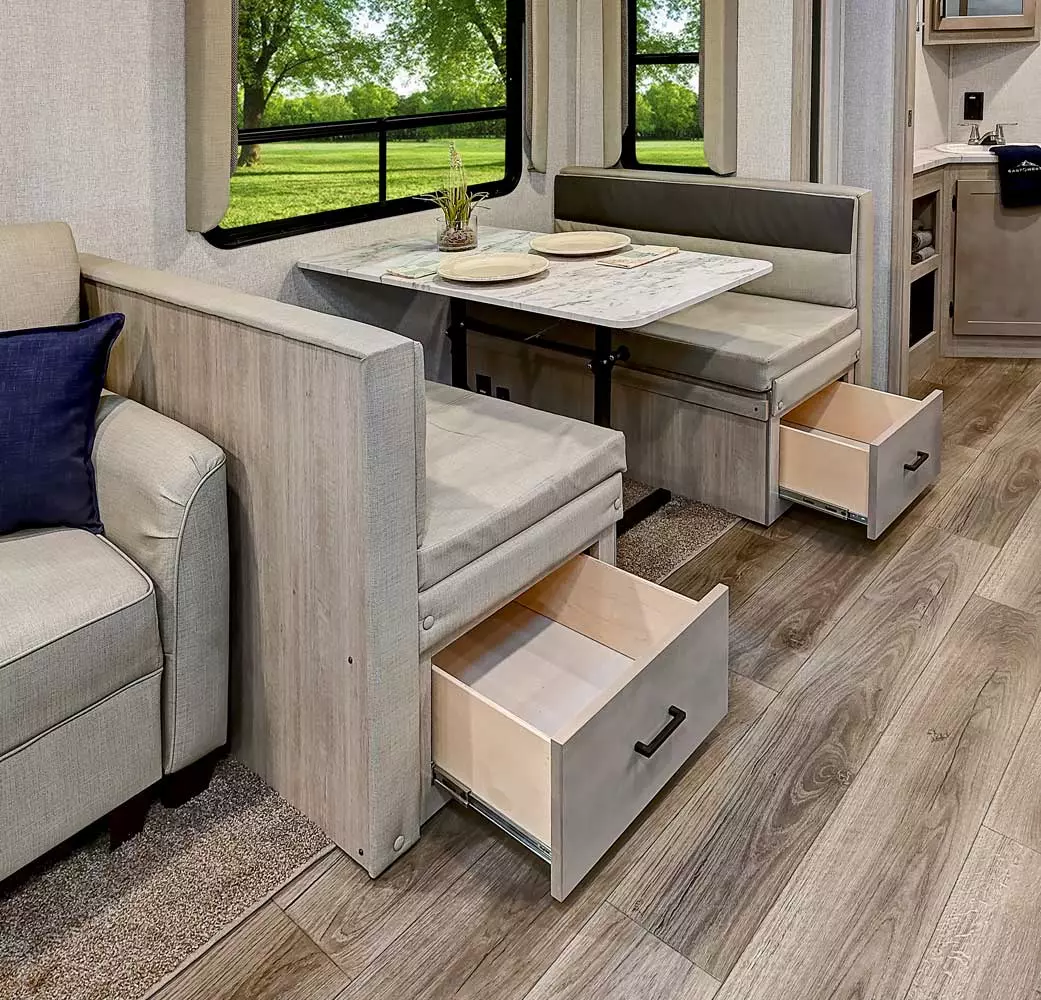

  • 48" Dinette Where Available, With Pullout Storage Drawers Underneath On Roller Guides
  • Upgraded Shaw® Linoleum Herringbone Flooring
  • 35,000 BTU Furnace
  • Furrion® 2 Zone Sound System With Bluetooth & HDMI Connectivity
  • Upgraded Stainless Steel Appliances
  • Pet Drawer

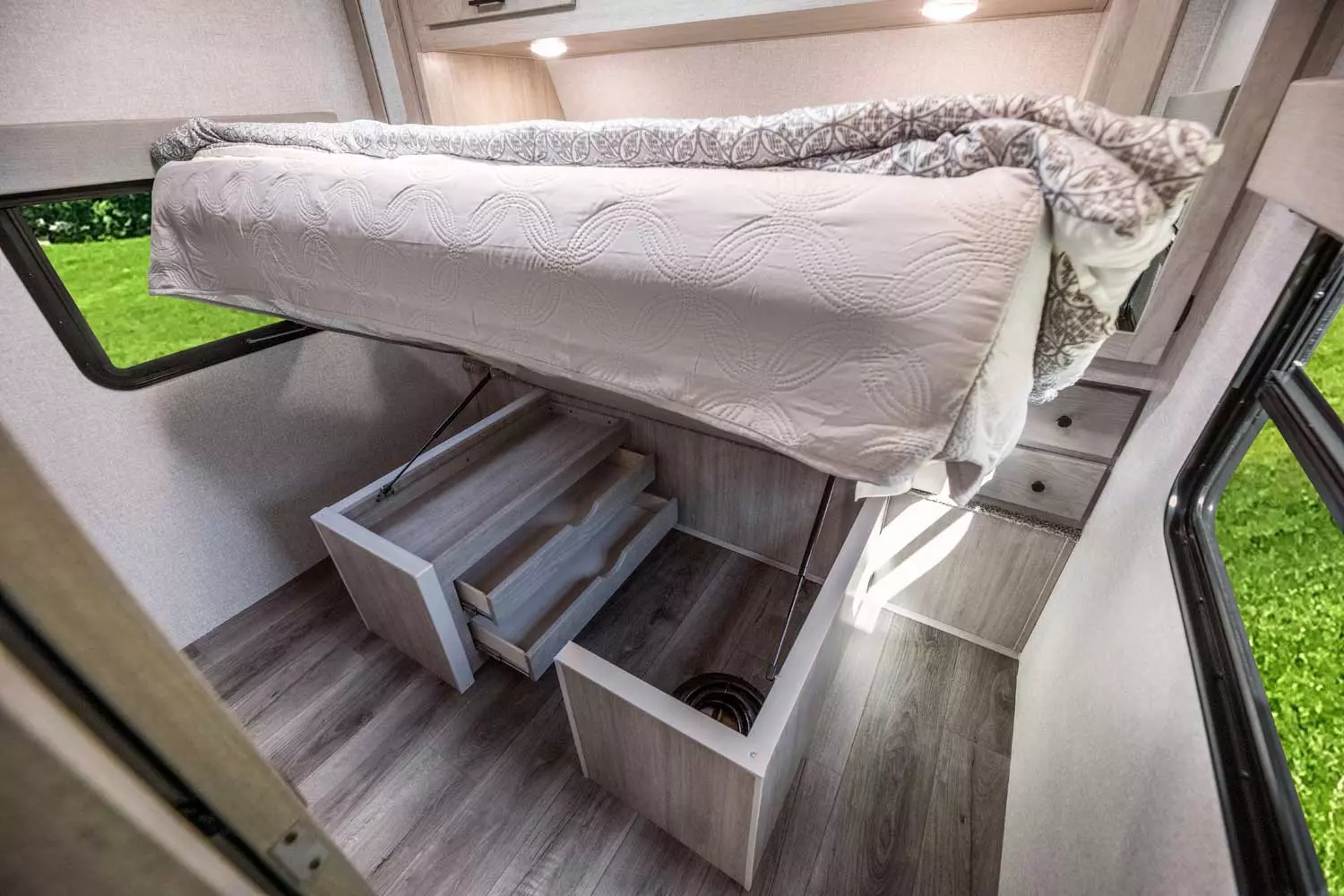

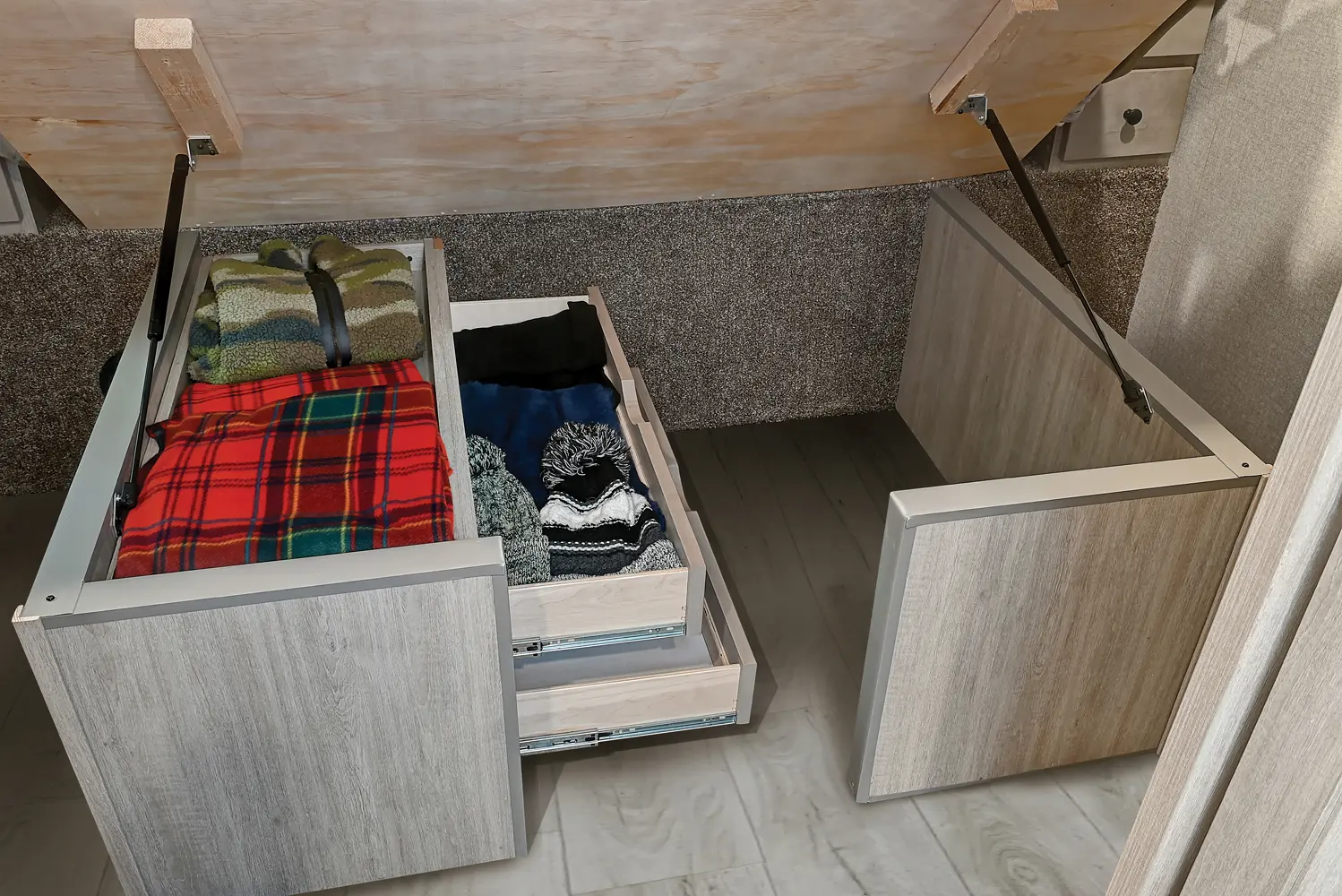

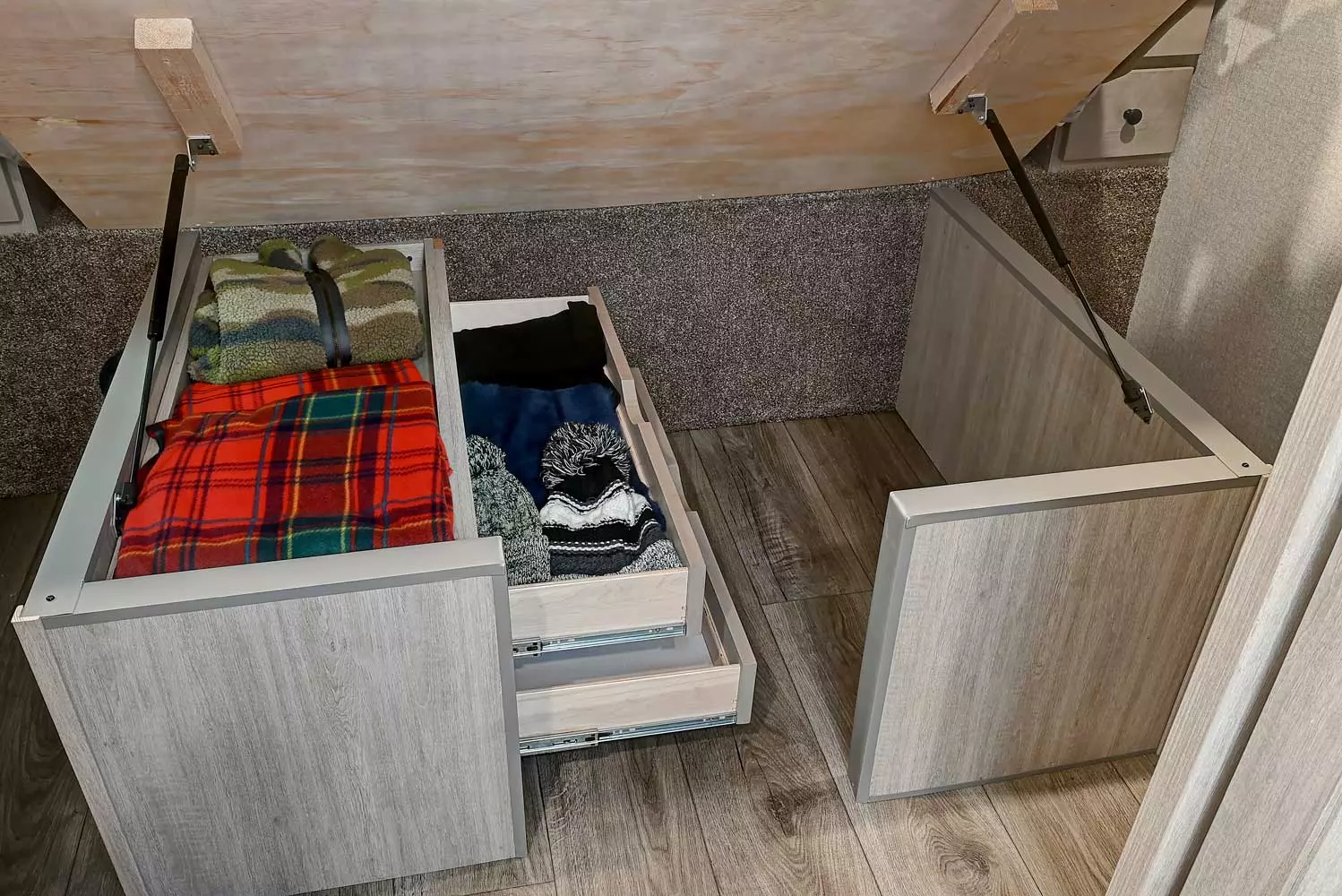

  • Under Bed Storage
  • Fully Walkable Vacuum Bonded Roof

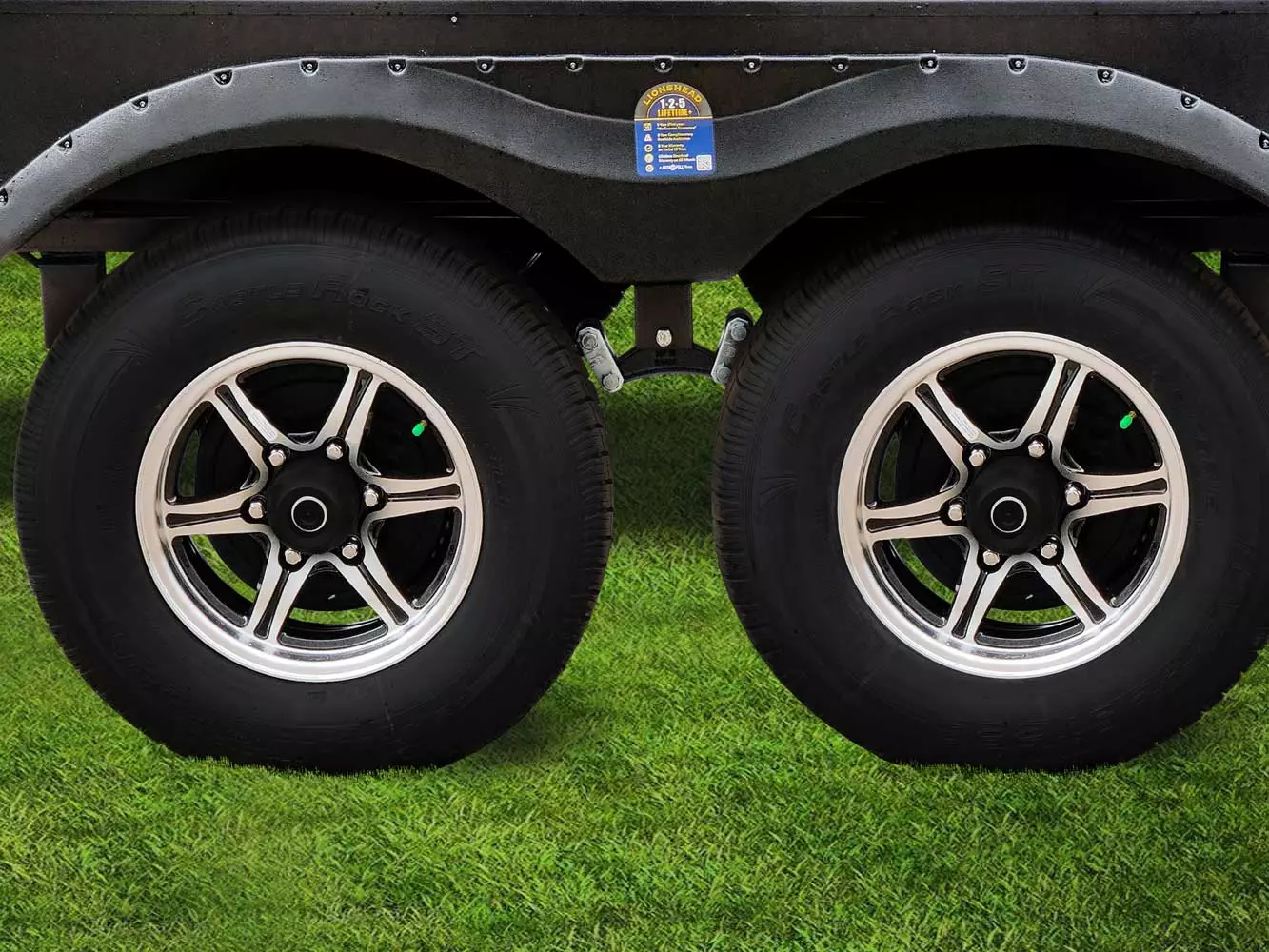

  • Aluminum Rims

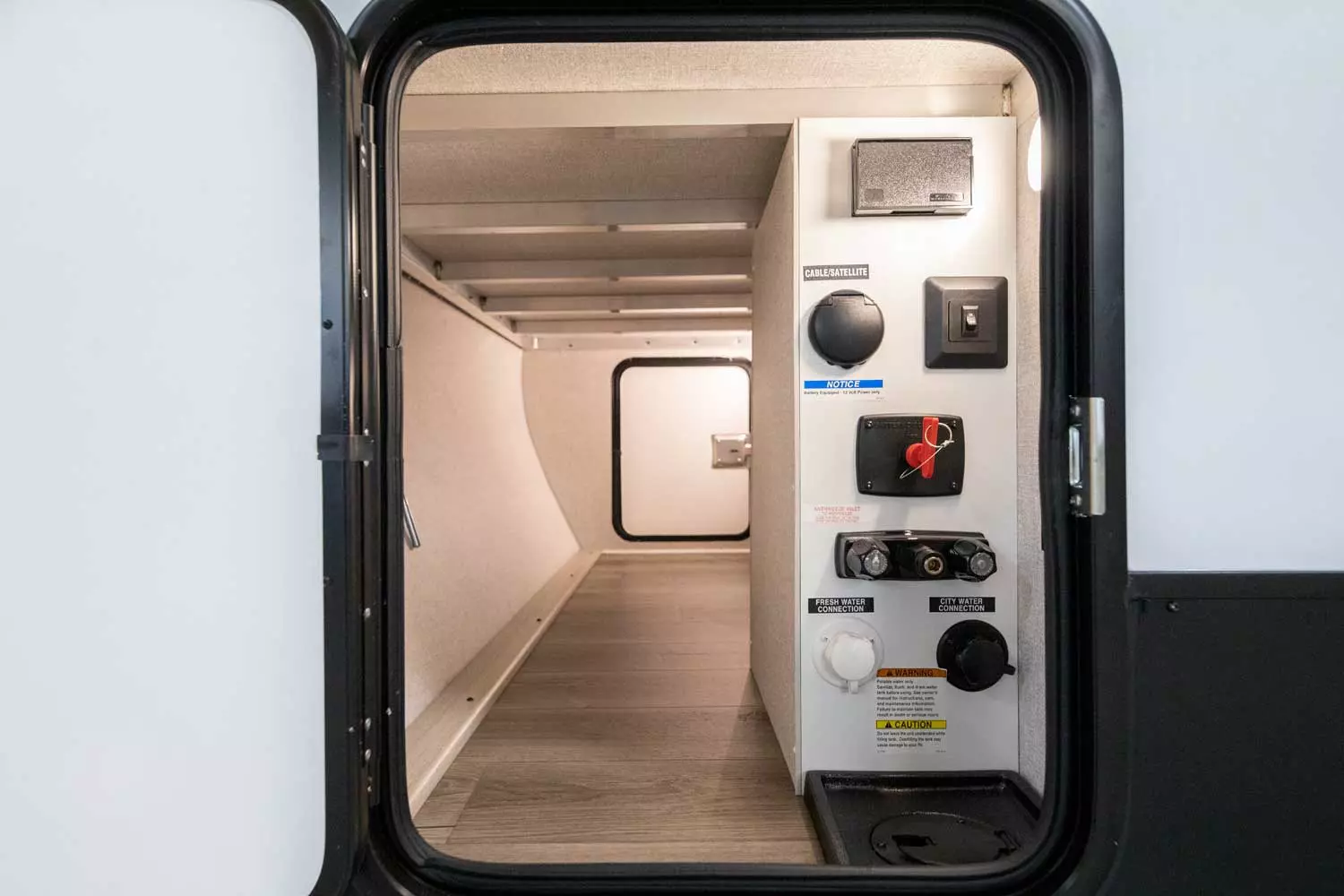

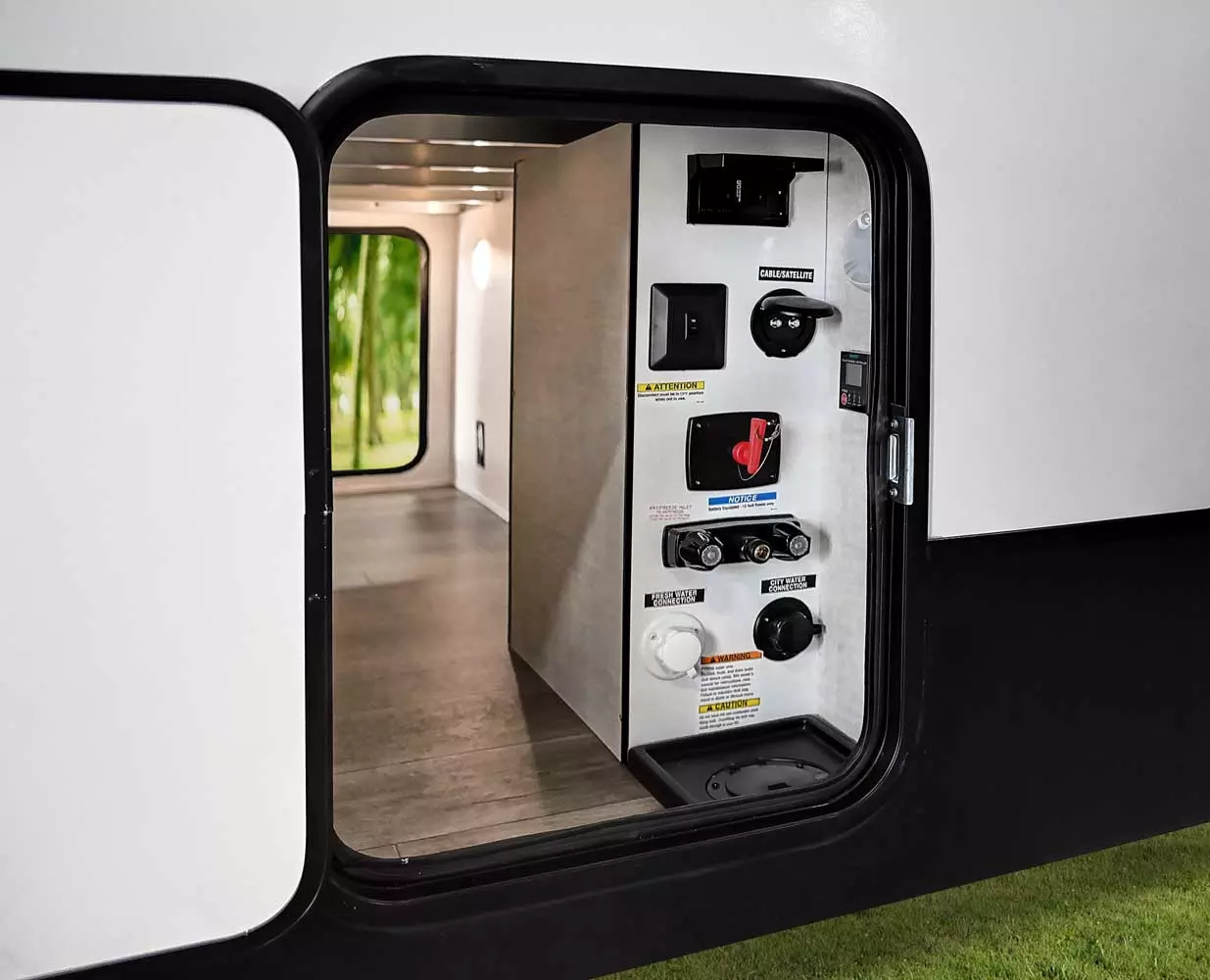

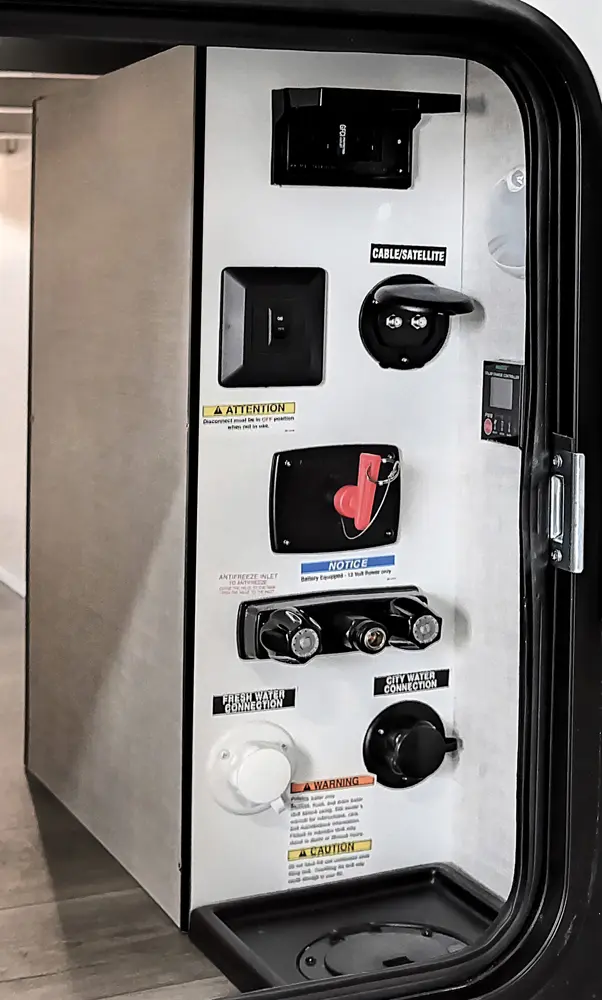

  • Universal Docking Station
  • Water Heater Bypass

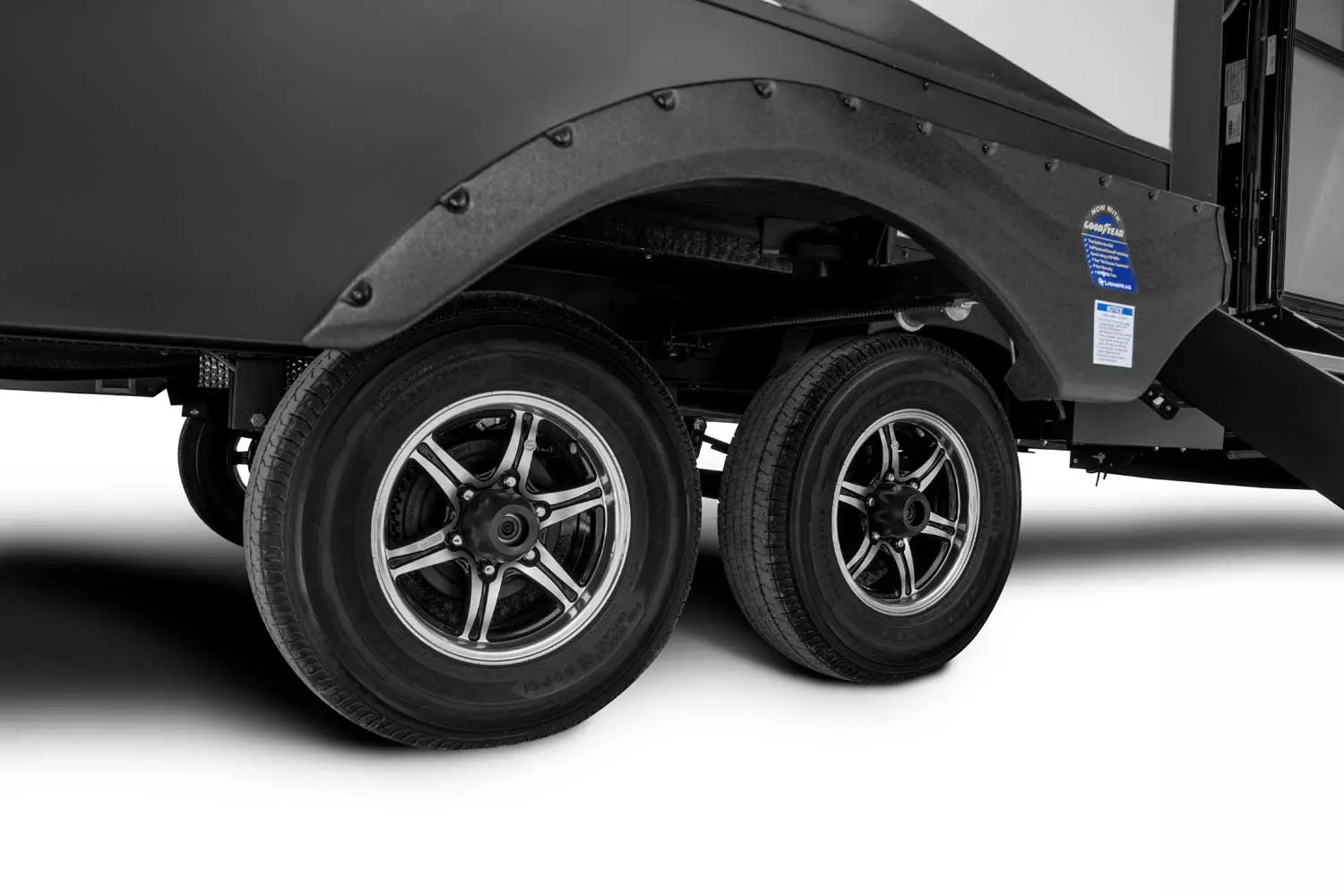

  • Nitro Filled Radial Tires
  • Power Awning With LED Lights
  • Automotive Deposition Coated Norco® Drop Frame
  • Enclosed & Heated Underbelly
  • Flush Floor Slide Out Where Available
  • 15,000 BTU Ducted Air Conditioner With Quick Cool
  • Black Tank Flush
  • Outside Shower With Hot & Cold Water
  • High Definition/Amplified TV Antenna
  • Furrion® Backup Camera Prep
  • Rear Ladder

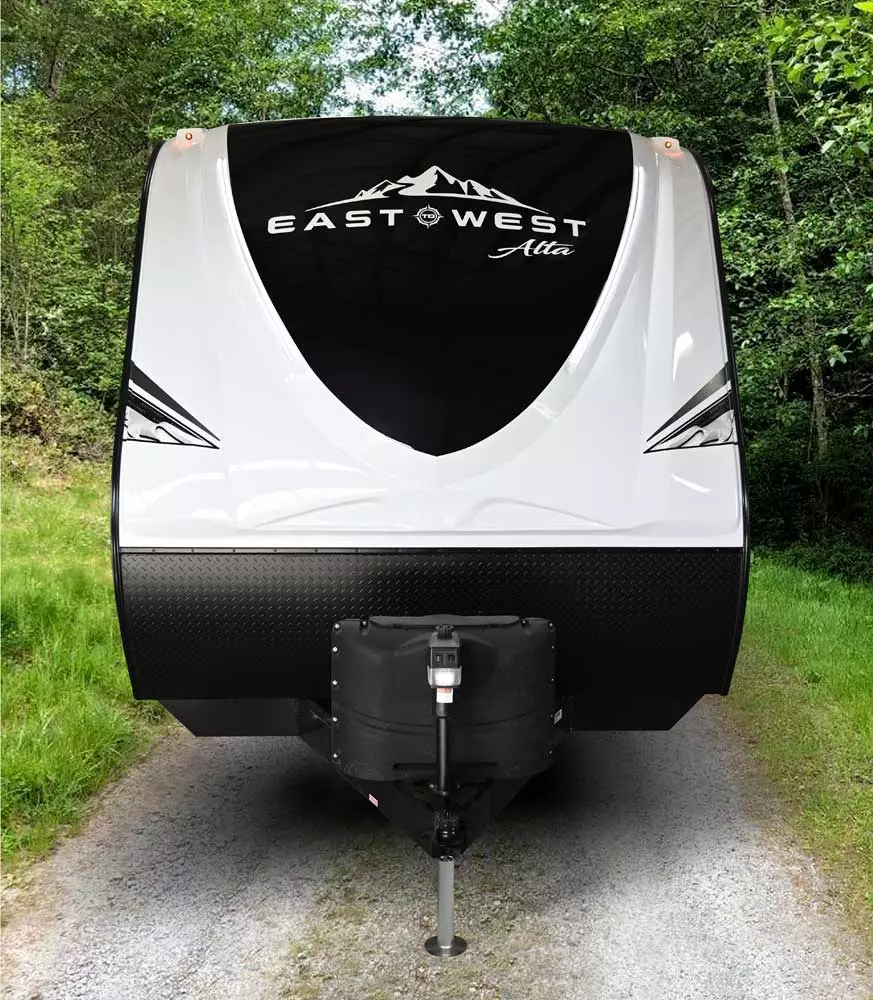

  • Diamond Plate Front Rock Guard

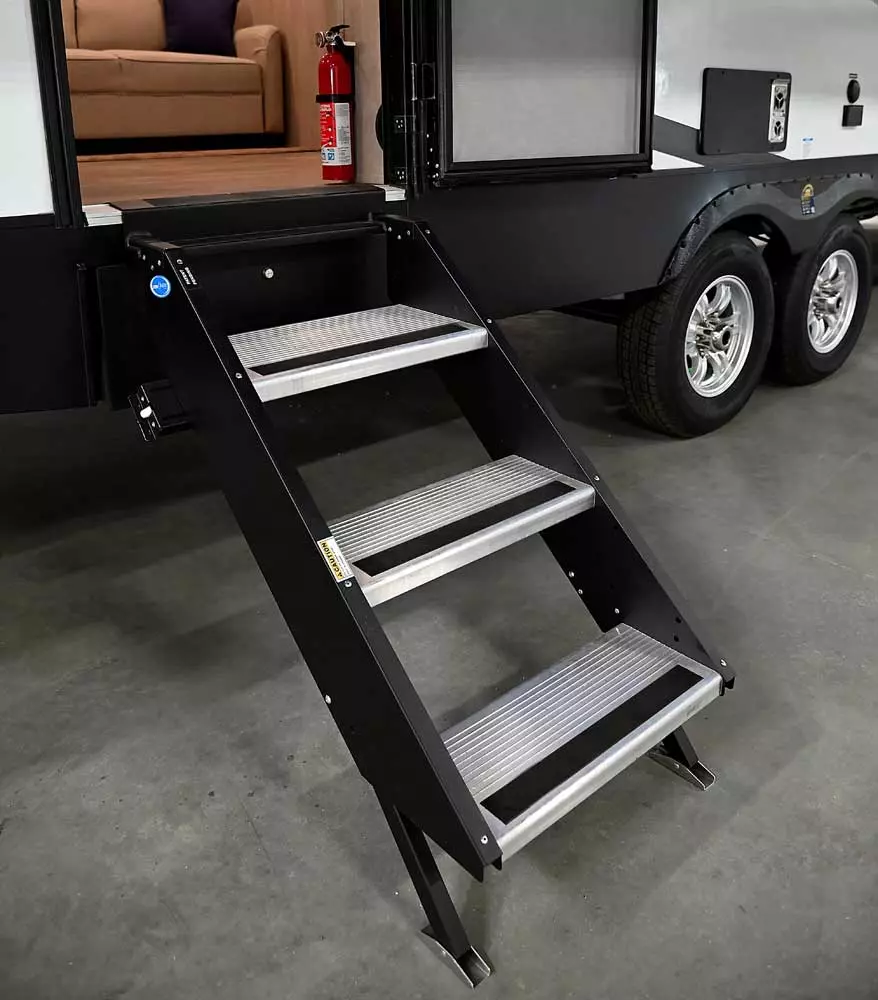

  • Aluminum Triple Entry Steps
  • Exterior LED Lights
  • Detachable Power Cord
  • Power Tongue Jack With LED Light
  • Exterior Swing Arm Entry Assist Handle

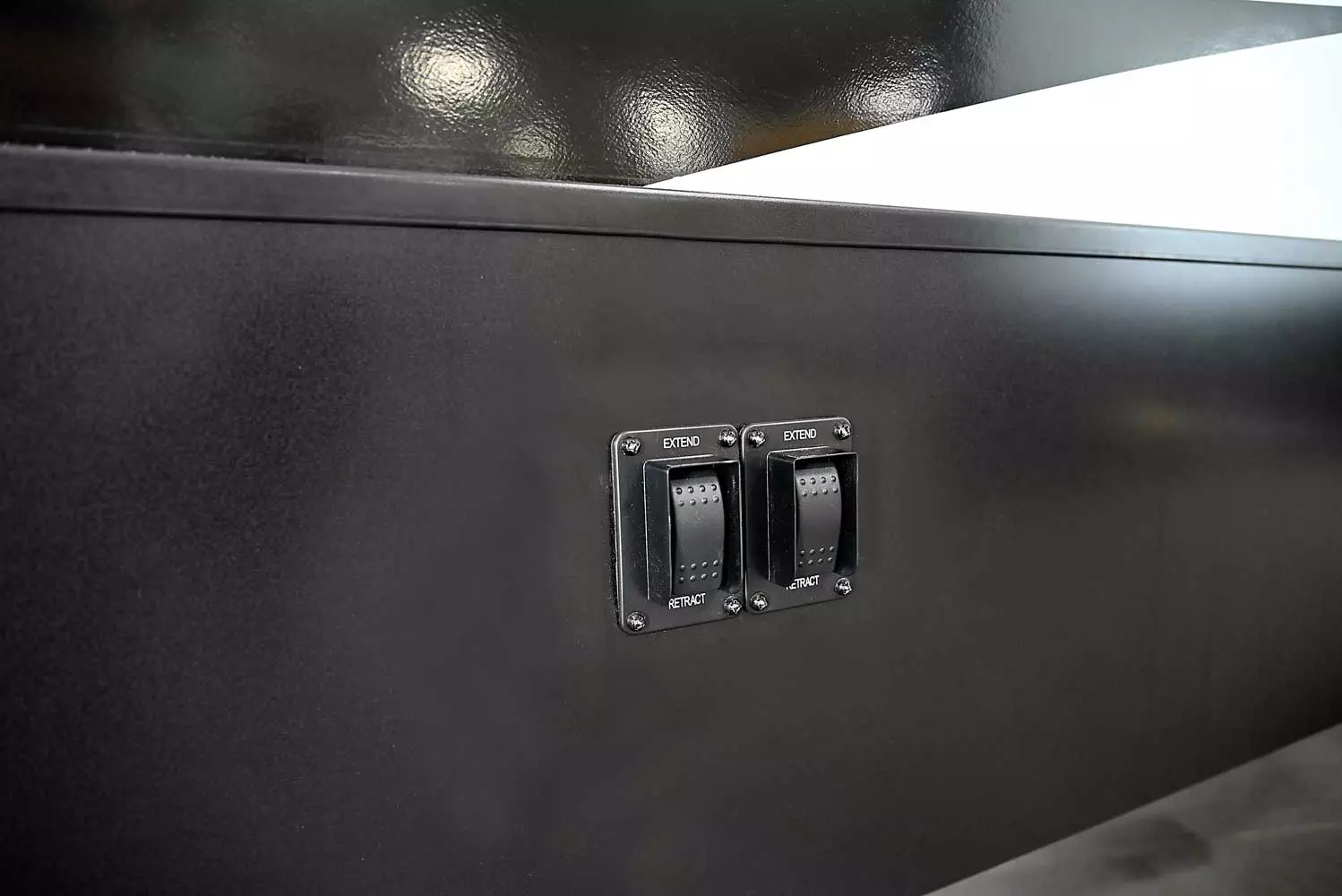

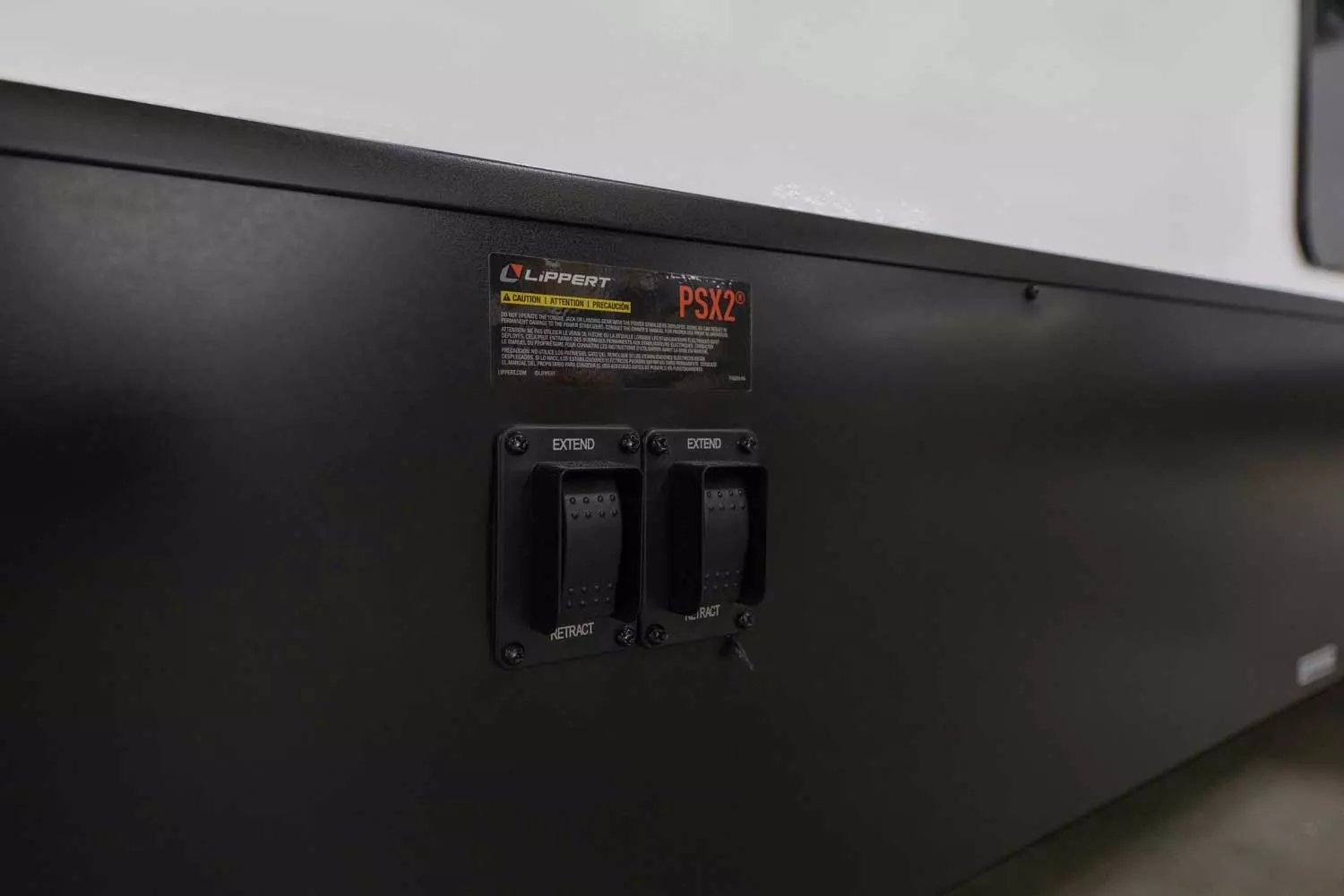

  • Norco® 4-Point Electric Stabilizer Jacks
  • Two Marine Grade Exterior Speakers
  • Tinted Windows
  • Upper Bunk Window
  • R.V.Q. Quick Connect
  • Rear Ladder
  • High Pressure Fresh Water Fill
  • Spare Tire & Carrier

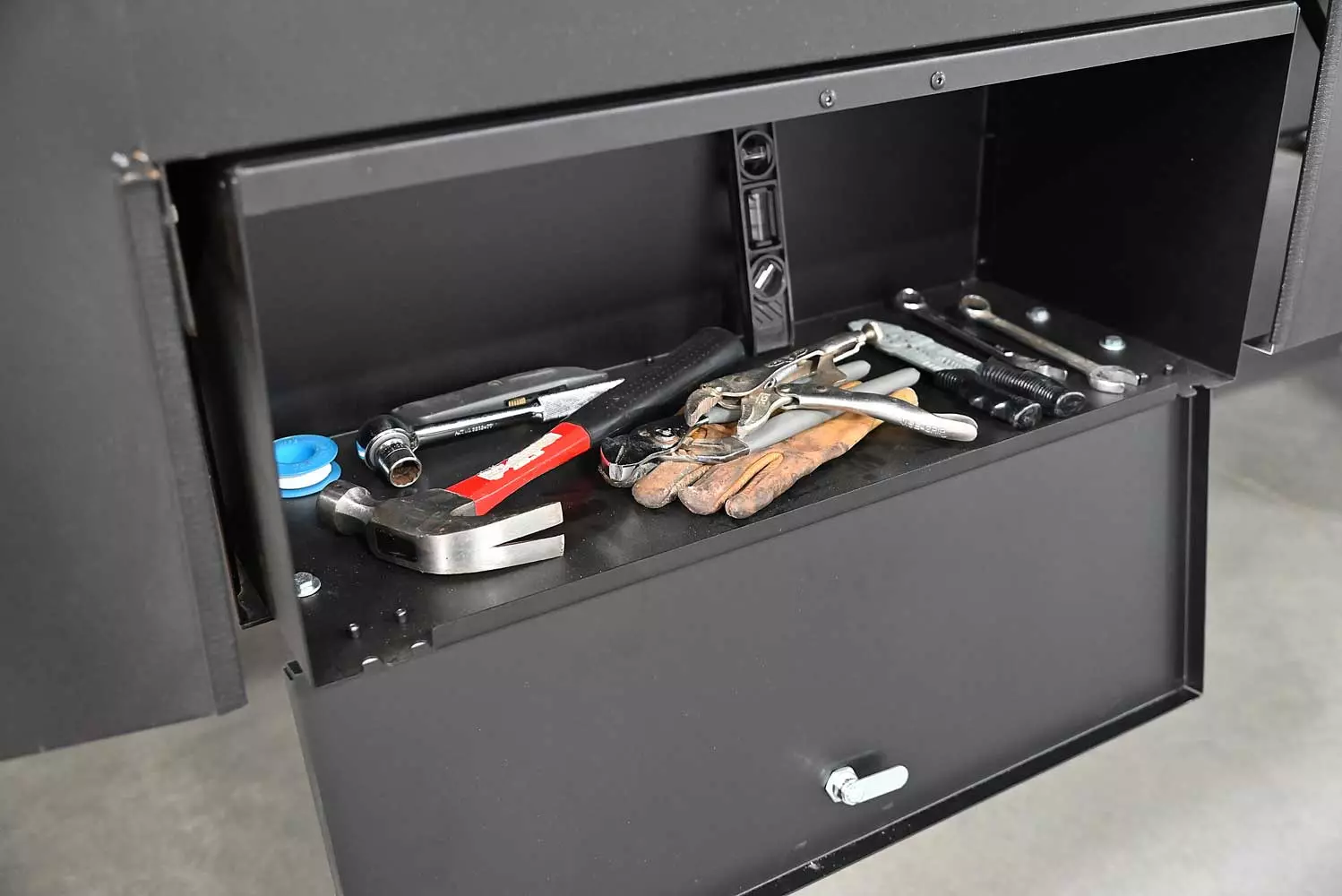

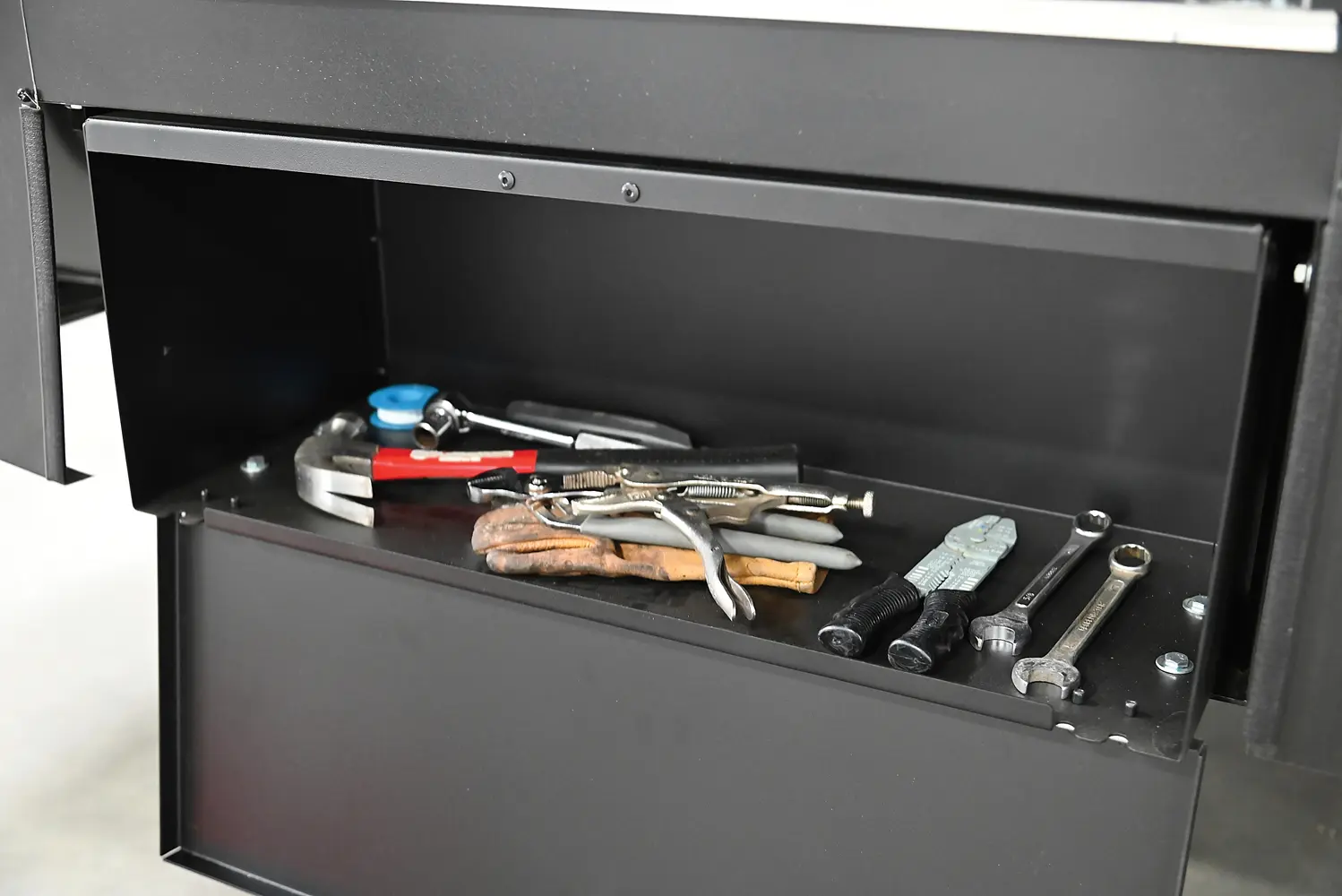

  • MORyde® Solid Entry Step With Tool Box
  • Theater Seating IPO Tri-fold Sofa

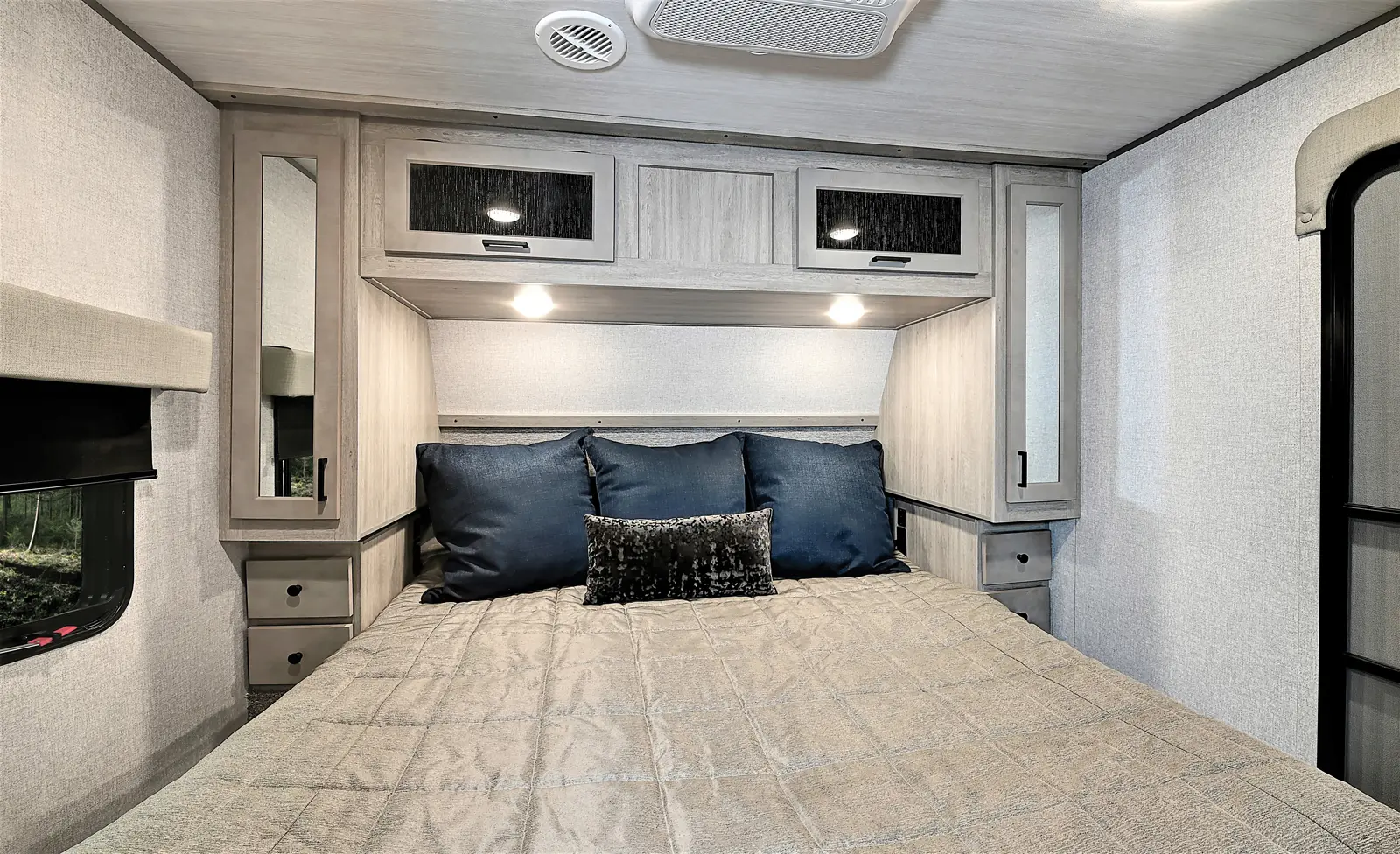

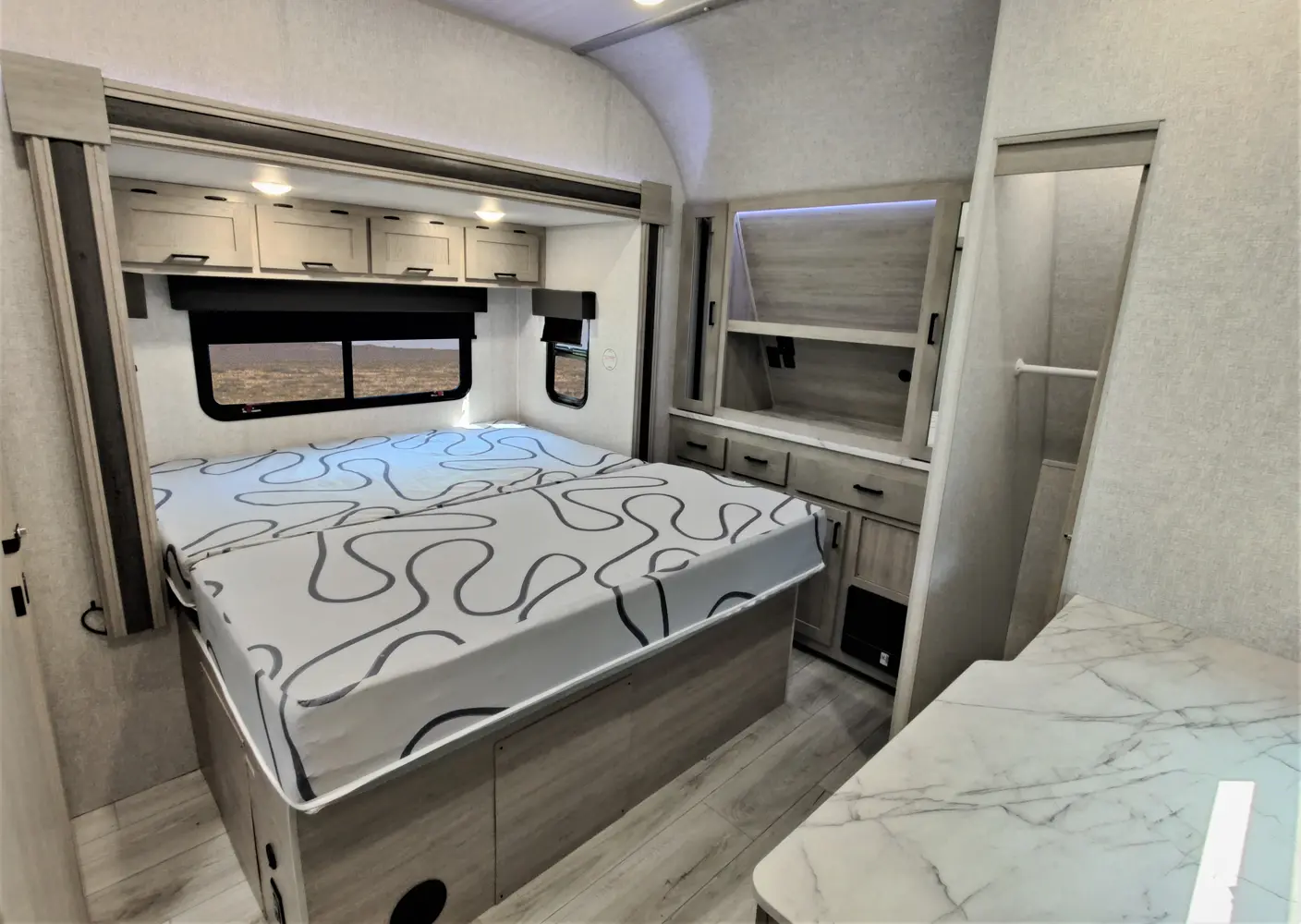

  • 60" x 80" Queen Bed
  • Furrion® 40" LED TV (N/A 1900 MMK, 2100 MBH, 2600 KRB, 3150 KBH)
  • Furrion® 32” LED TV

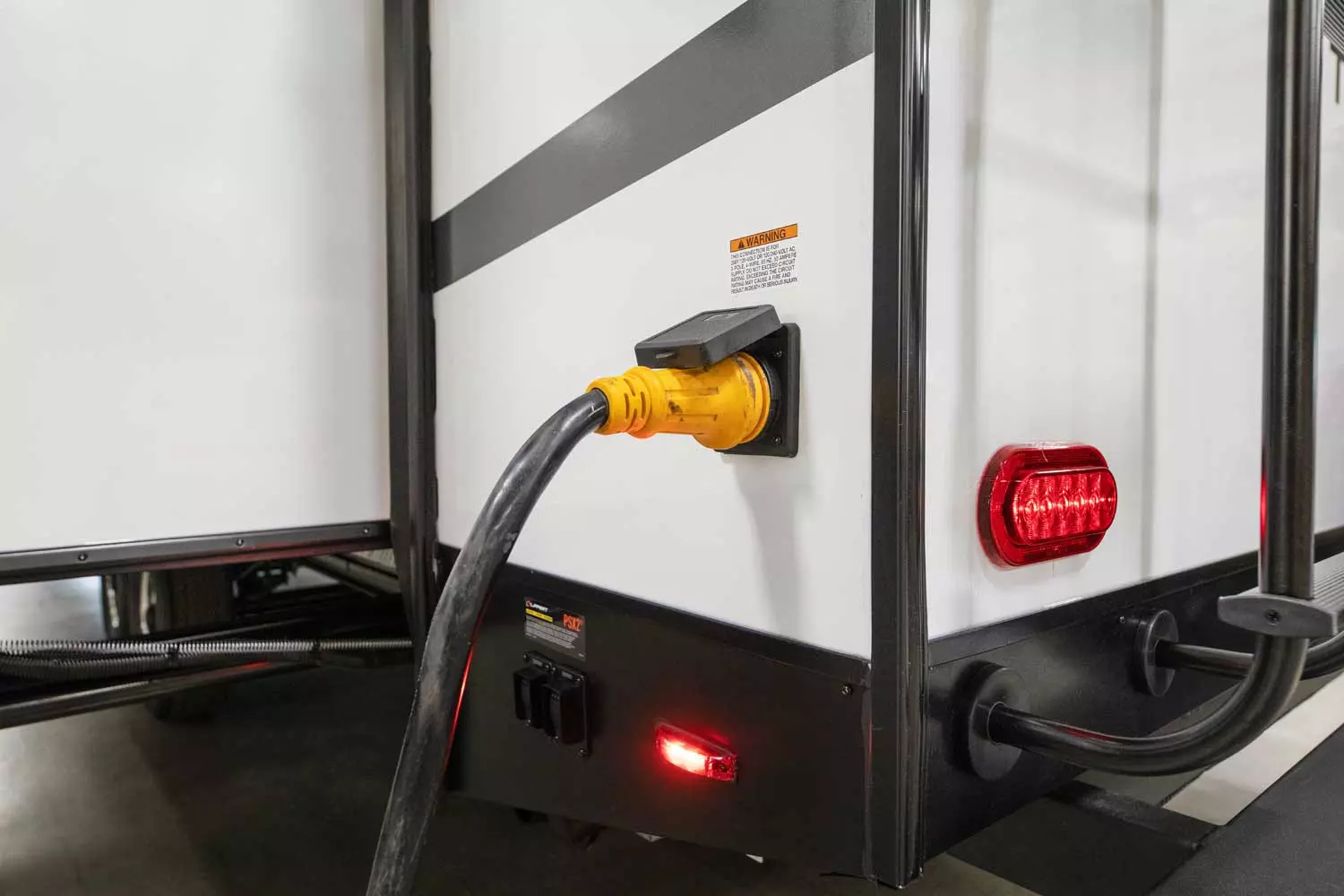

  • 50 Amp Service With 2nd A/C Prep: (Mandatory On 2800 KBH, 2810 KIK, 2850 KRL, 3150 KBH)
  • 50 Amp Service With 13,500 BTU 2nd A/C Installed
  • Tri-fold sofa IPO Booth (2350 KRK only)
  • Free standing Dinette IPO Booth (N/A 1900 MMK, 2100 MBH, 2350KRK)
  • Theatre seating in place of booth (2350 KRK only)
  • 8 Cube Gas/Electric Refer
  • Alta 50 Watt Solar Package (Solar panel, controller, battery, box, and disconnect. *Mandatory on all models*)


Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific RV operates.


Literature

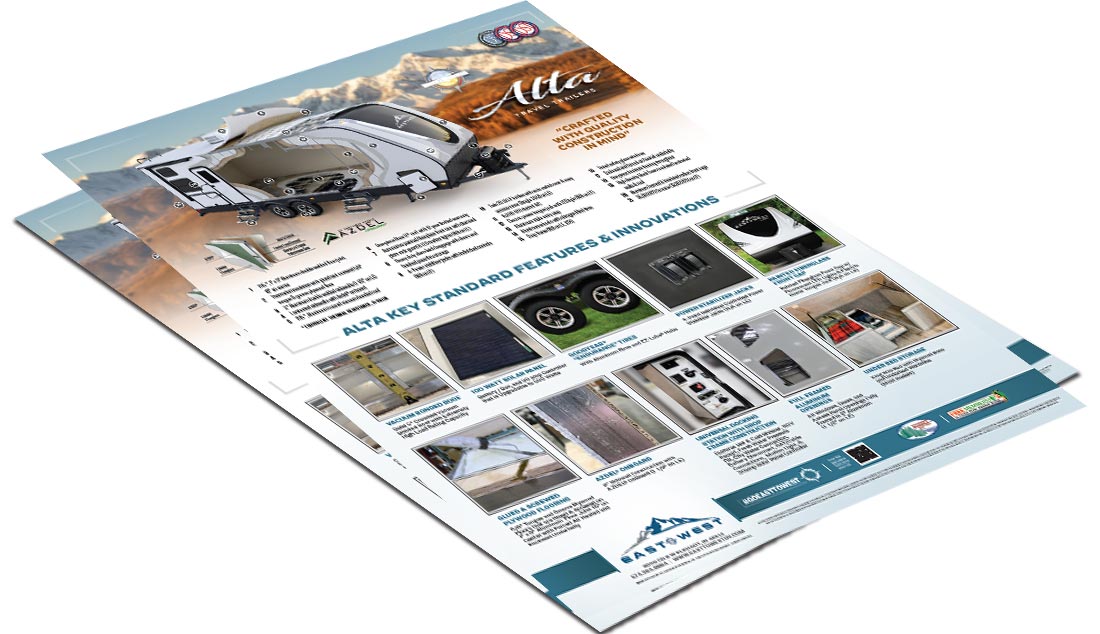

Alta Brochure
Alta Brochure

Way Solar Kit User Manual
Way Solar Kit User Manual
